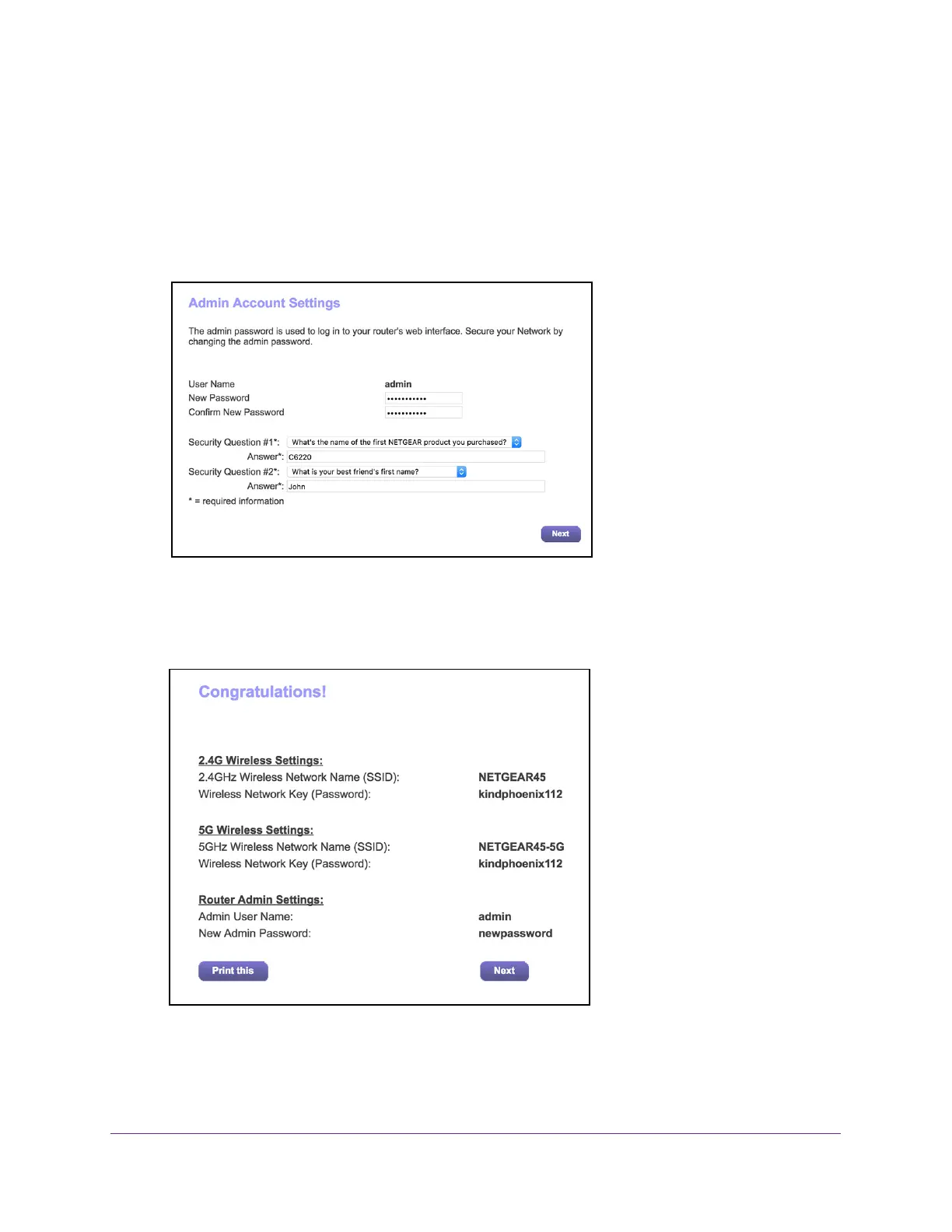

Connect to the Network and Access the Modem Router
18
AC1200 WiFi Cable Modem Router Model C6220
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The first time you log in to the modem router, you are prompted to change the admin
password and set up security questions. You must enter these settings before you can
access the Internet.
4. Enter a new password.
5. Select security questions and enter the answers.
6. Click the Next button.
7. Click the Next button.
The modem router connects to the Internet. The BASIC Home page displays the status of
the Internet connection.

Table of Contents

Other manuals for NETGEAR C6220

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR C6220 and is the answer not in the manual?

NETGEAR C6220 Specifications

General IconGeneral
Product typeTabletop router
Product colorBlack
LED indicatorsPower
USB portYes
Memory card slot(s)No
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity12 channels
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN data transfer rate (max)340 Mbit/s
CertificationCableLabs
Processor frequency1600 MHz
Cables includedLAN (RJ-45)
Power source typeAC
Security algorithmsWPA2, WPA2-AES
Weight and Dimensions IconWeight and Dimensions
Depth155 mm
Width235 mm
Height57 mm
Weight440 g
