Control Access to the Internet
26
AC1200 WiFi Cable Modem Router Model C6220
Set Up Parental Controls
The first time that you select Parental Controls from the BASIC Home page, your browser
goes to the Parental Controls website. You can learn more about parental controls or
download the application.
After you set up and enable parental controls, you can change the web filtering level for each
device on the network on the network map page of the genie app.
To set up parental controls:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is
connected to the network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login window opens.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.
4. Select Parental Controls.
The Live Parental Controls website opens.
5. Click the button for the app or version that you want to download and use.
6. Follow the onscreen instructions to download and install the genie app.
7. Open the genie app and select Parental Controls.
After installation, Live Parental Controls automatically starts.
8. Click the Next button, read the note, and click the Next button again to proceed.
Because Live Parental Controls uses free OpenDNS accounts, you are prompted to log in
or create a free account.

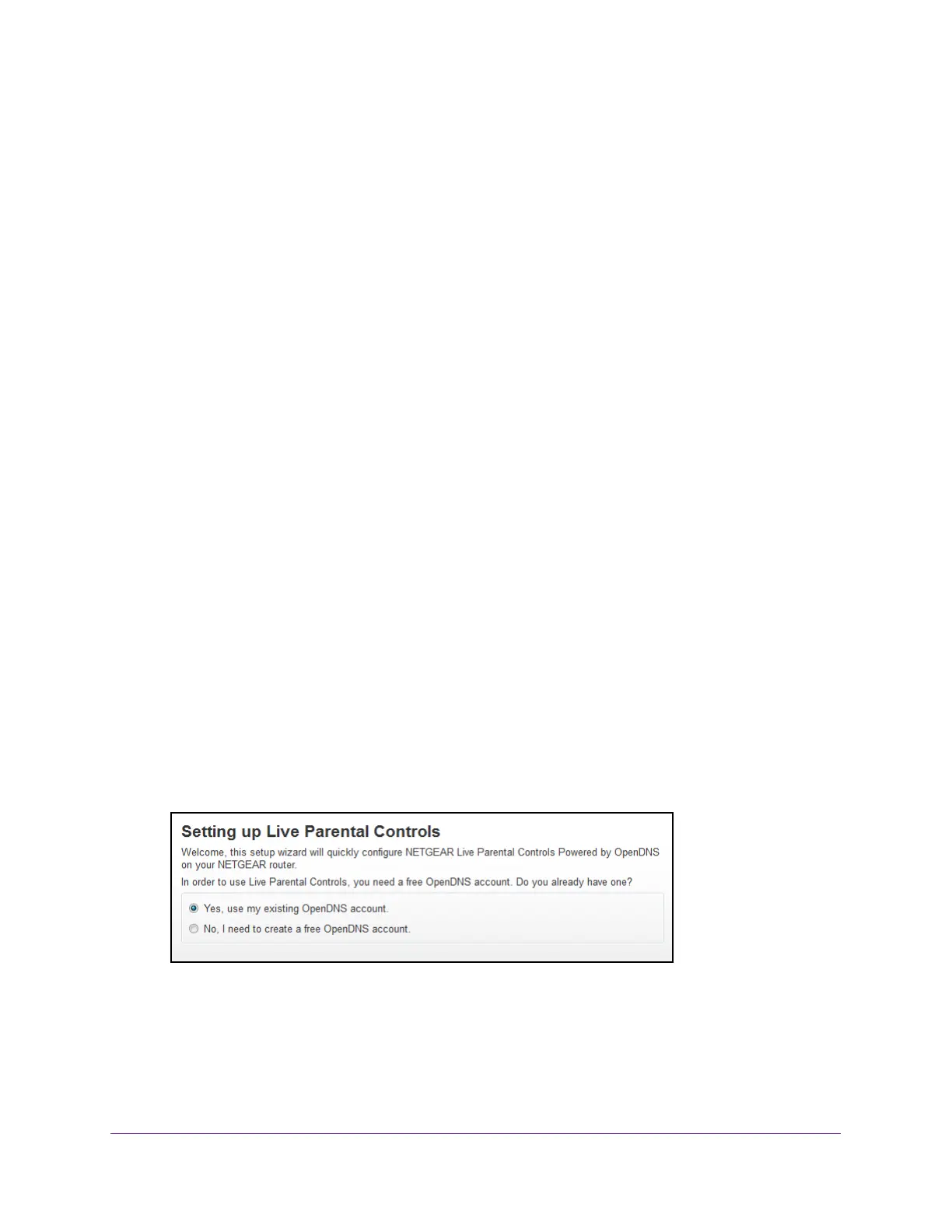

9. Select a radio button as follows:
If you already own an OpenDNS account, leave the Ye
s radio button selected.
If you do not own an OpenDNS account, select the No radio button.
