Share a USB Storage Device Attached to the Modem Router
40
AC1200 WiFi Cable Modem Router Model C6220
2. Type http://routerlogin.net or http://192.168.0.1.
A login window opens.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.

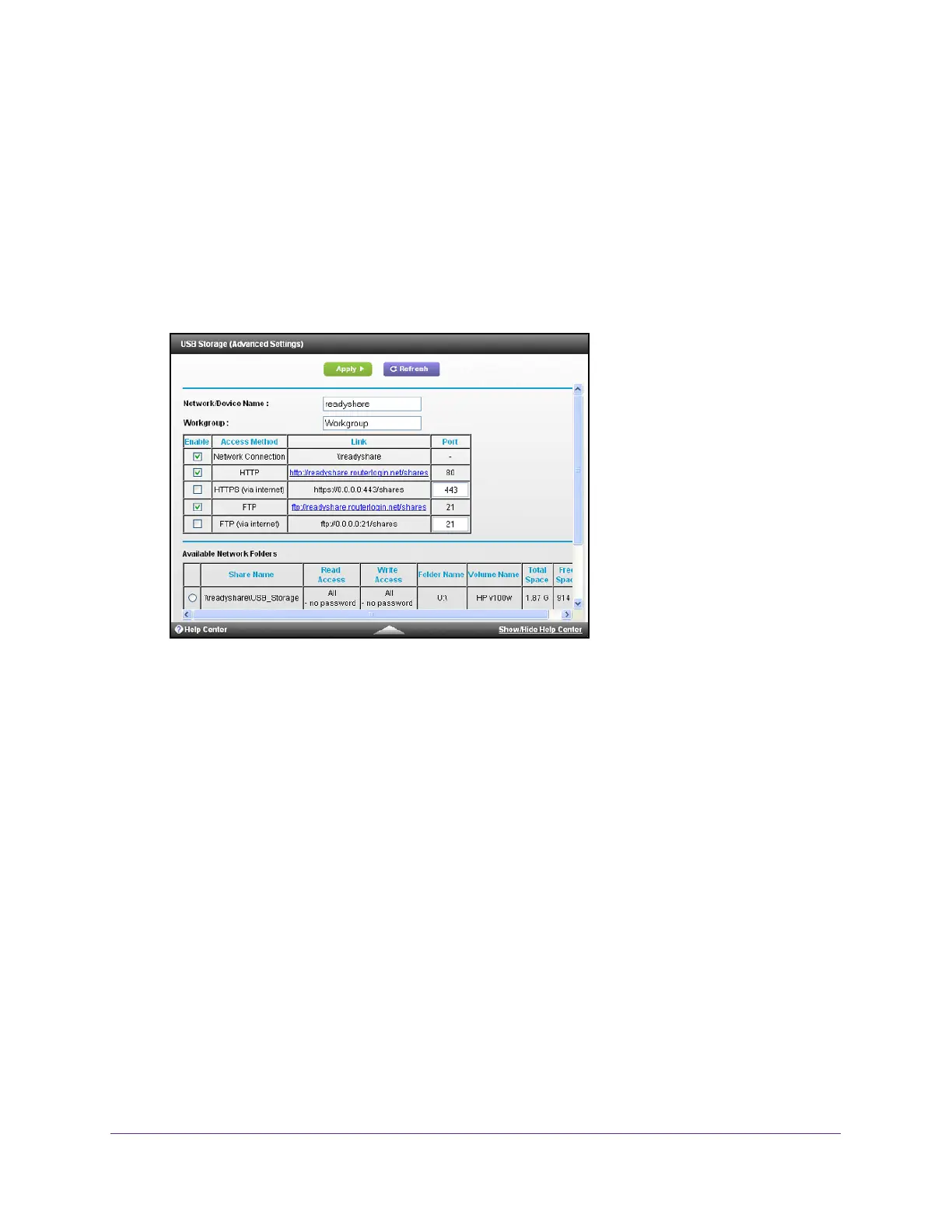

4. Select ADV
ANCED > USB Storage > Advanced Settings.
5. Scroll down to the Available Networks Folder section of the page, and adjust the following
settings:
• Share Name. If only one device is connected, the default share name is
USB_Storage. (Some modem router models include more than one USB port.)
You can click the name or type it in the address field of your web browser. If Not
Shared is shown, the default share was deleted, and no other share for the root folder
exists. Click the link to change this setting.
• Read
Access and Write Access. Show the permissions and access controls on the
network folder. All – no password (the default) allows all users to access the network
folder. The password for admin is the same one that you use to log in to the modem
router.
• Folder Name. Full path of the network folder
.
• V
olume Name. Volume name from the storage device (either USB drive or HDD).
• T
otal Space and Free Space. Show the current utilization of the storage device.
6. Click the Apply button.
Your settings are saved.
