NETGEAR C6220 User Manual

Manage Your Network
81
AC1200 WiFi Cable Modem Router Model C6220
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home page displays.
4. Select ADV
ANCED > Administration > Wireless Channel.

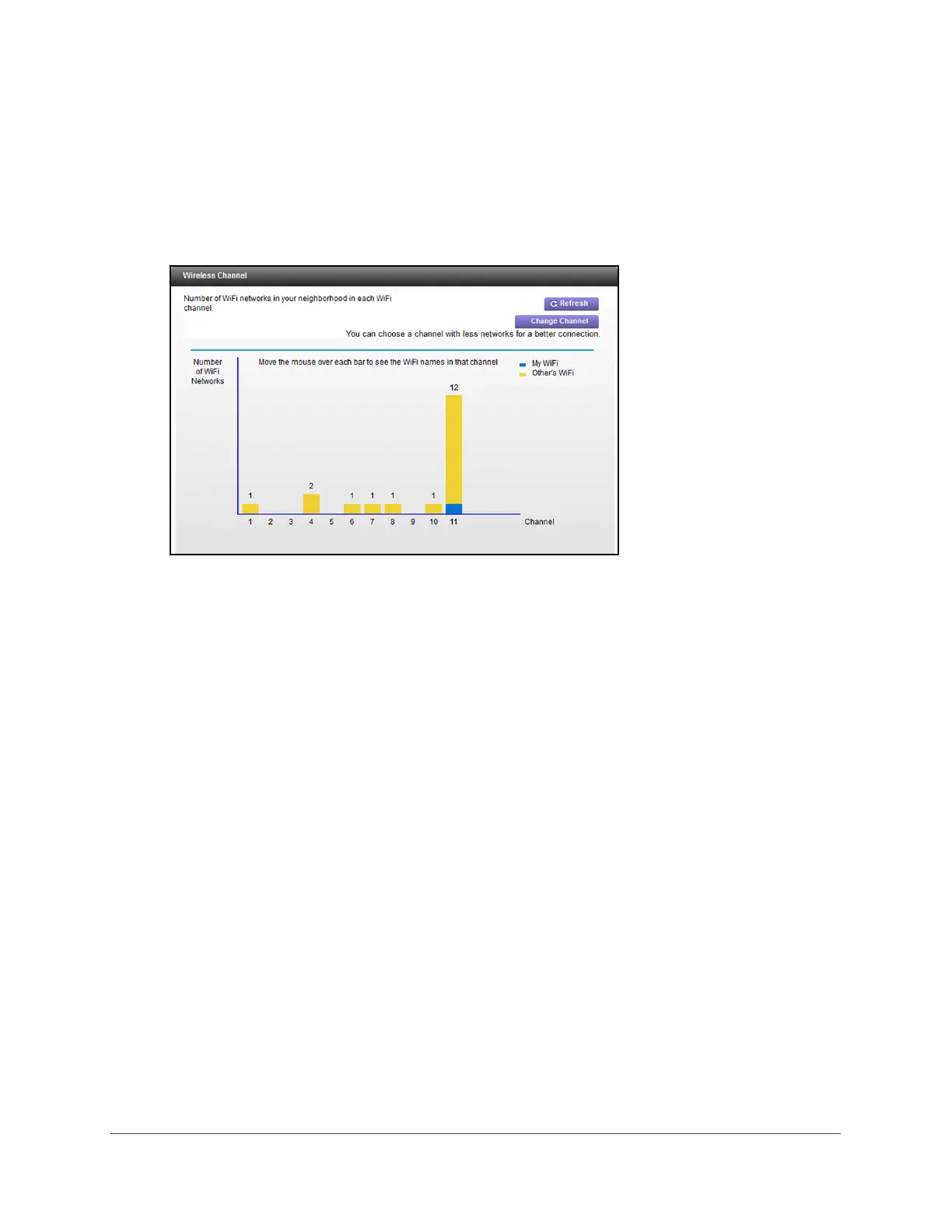

The page displays WiFi channels in use in the 2.4 GHz WiFi band. Your network is shown
in blue. Yellow shows other networks in your area. Laws or guidelines in many countries
and geographic locations specify which channels can be used. Depending on your
location, some channels might not be available.
If many WiFi networks at your location use the same channel as your WiFi network, you
might experience interference.
You can change the channel to avoid the interference.
5. To change the WiFi channel, click the Change Channel button.
The Wireless Settings page displays.
6. From the Channel menu, select a dif
ferent channel setting.
7. Click the Apply button.
Your settings are saved.

NETGEAR C6220 Specifications

General

Product type	Tabletop router
Product color	Black
LED indicators	Power
USB port	Yes
Memory card slot(s)	No
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	12 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	340 Mbit/s
Certification	CableLabs
Processor frequency	1600 MHz
Cables included	LAN (RJ-45)
Power source type	AC
Security algorithms	WPA2, WPA2-AES

Weight and Dimensions

Depth	155 mm
Width	235 mm
Height	57 mm
Weight	440 g
