FS728TP Smart Switch FS728TP Smart Switch Software Administration Manual
Configuring Switching Settings 4-21
v1.0, December 2007
To configure Port PVID parameters:

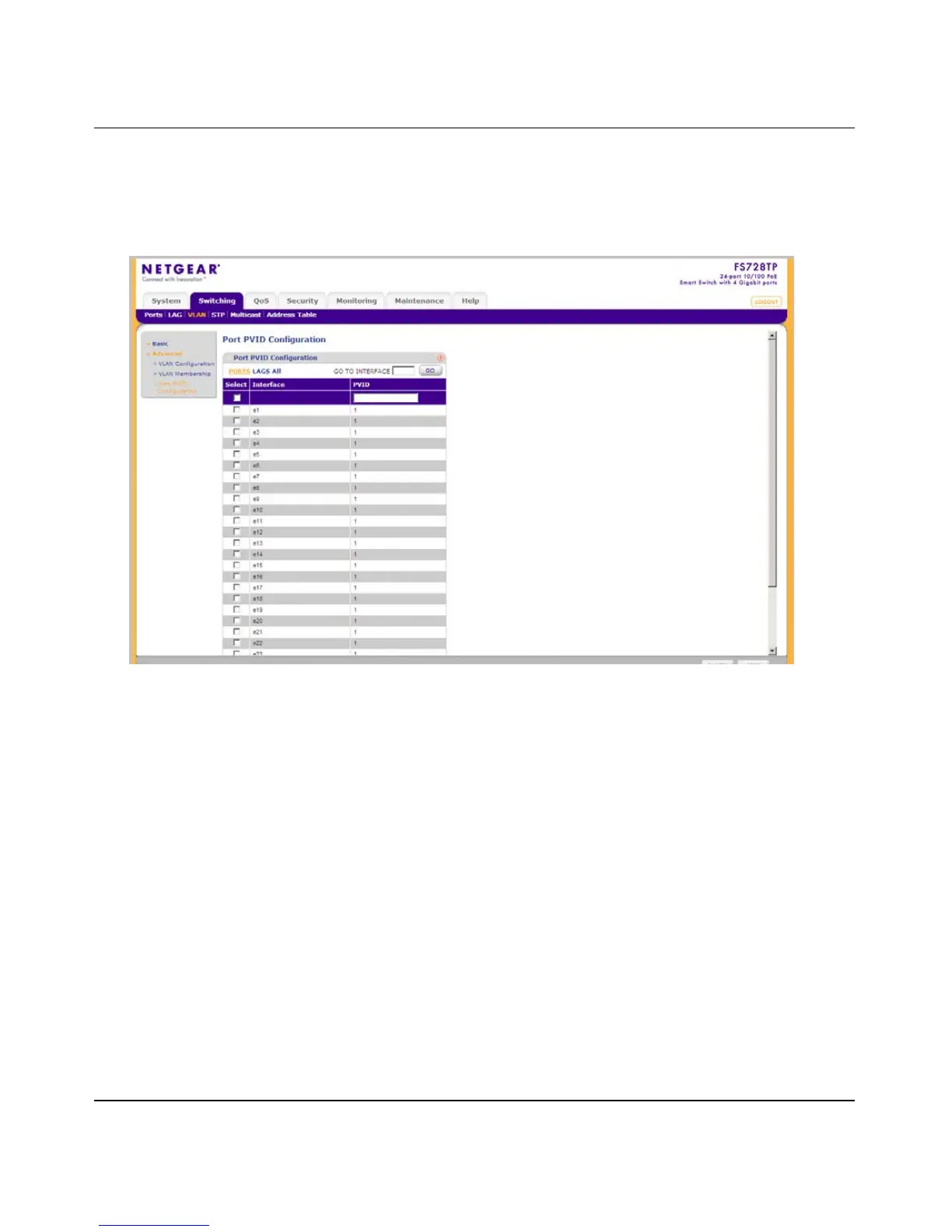

1. Click Switching > VLAN > Advanced > Port PVID Configuration. The Port PVID
Configuration screen displays:
The Port PVID Configuration screen contains the following fields:
• Interface – Displays the interface id (port number or LAG number) to which the PVID tag
is assigned.
• PVID – Enter the PVID value. The possible field range is 1-4093.
2. Select an interface.
3. Enter the PVID in the provided field in the first row.
4. Click Apply to update the device.
Figure 4-15
