NETGEAR GS105Ev2 User Manual

9.

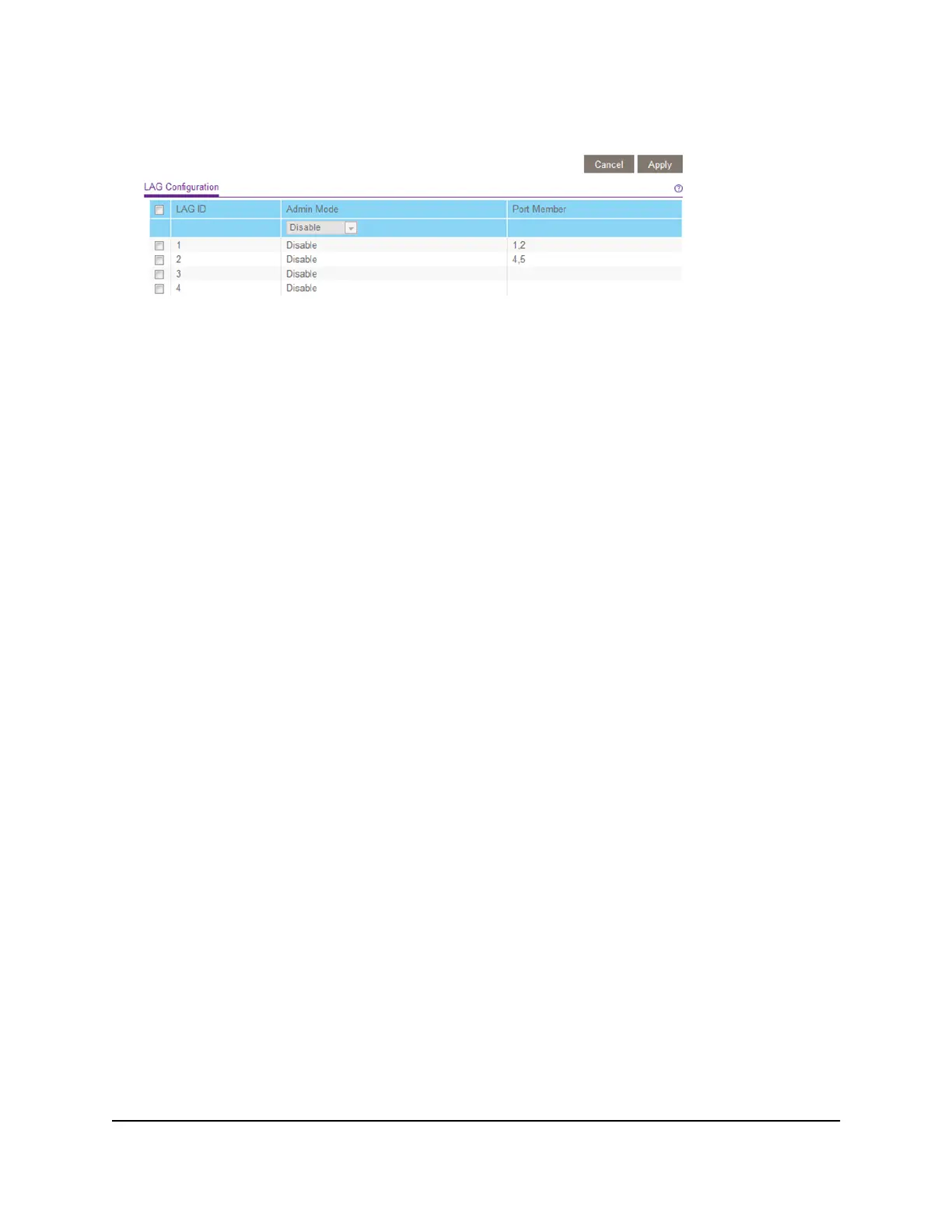

Select System > LAG > LAG Configuration.
10.
Select the ID of the LAG for which you just set up the port membership.
11.
In the Admin Mode menu, select Enable.
12.
Click the Apply button.
Your settings are saved.
User Manual47Manage Network Settings
Gigabit Ethernet Smart Managed Plus Switches

NETGEAR GS105Ev2 Specifications

General

Model	GS105Ev2
Category	Switch
Ports	5
Switching Capacity	10 Gbps
Forwarding Rate	7.4 Mpps
VLAN Support	Yes
Quality of Service (QoS)	Yes
Energy Efficient Ethernet (EEE)	Yes
Power Supply	External Power Adapter
Storage Temperature	-20° to 70° C (-4° to 158° F)
Operating Temperature	0°C to 40°C
Humidity	90% maximum relative humidity, noncondensing
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3az
Dimensions	6.22 x 4.02 x 1.10 in (158 x 102 x 28 mm)
Weight	0.24 kg (0.53 lb)
Jumbo Frame Support	Yes
