Manage and Monitor the Switch
44
ProSAFE Easy-Mount 8-Port Gigabit Ethernet PoE+ Web Managed Switch
4. Enter the switch’s password in the password field.
The switch’s default password is password.
The Switch Information page displays.

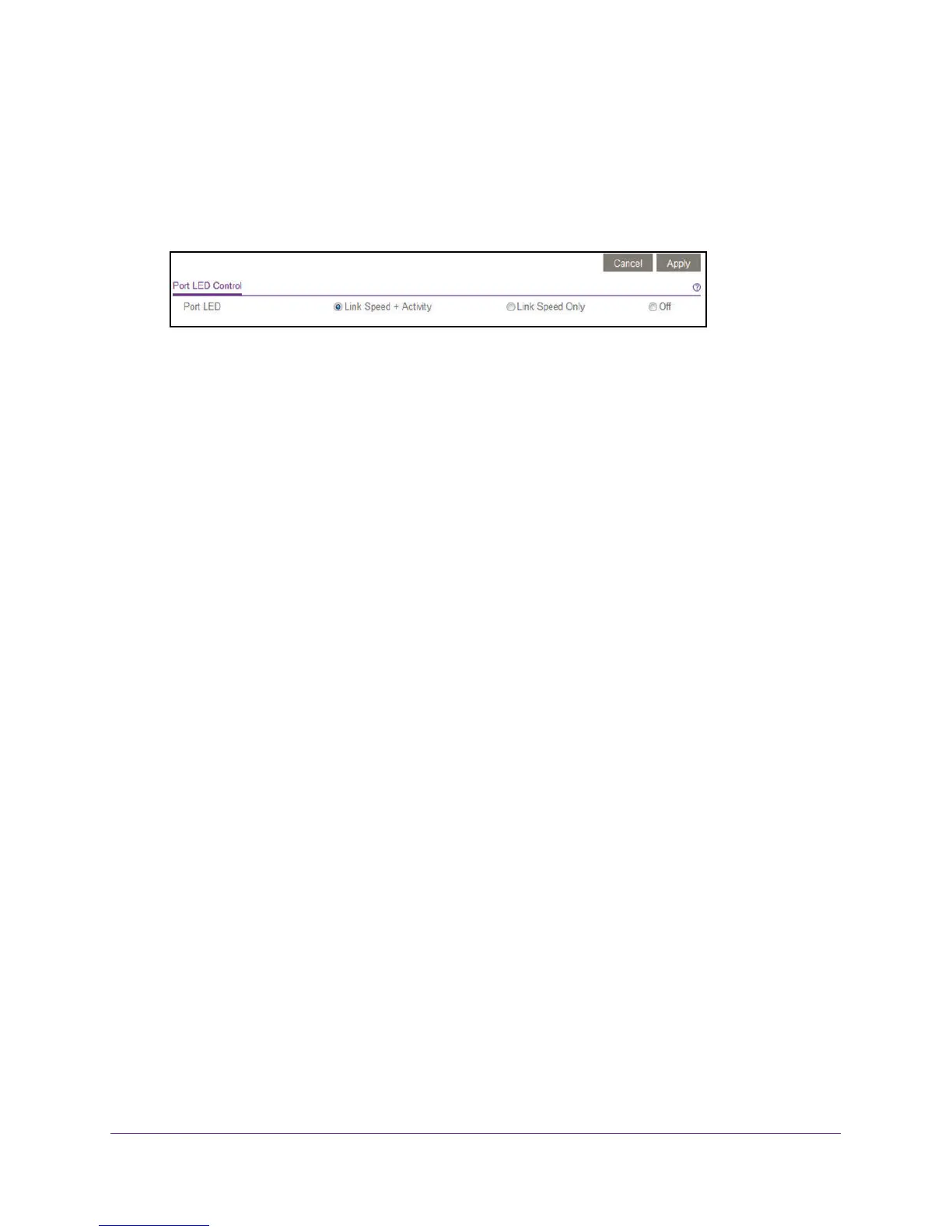

5. Select System > Management > Port LED Control.
6. Select one of the following radio buttons:
• Link Speed + Activity. The port Link Speed LED and port Activity LED light when a
port is in use. This is the default setting.
• Link Speed Only. The port Link Speed LED lights when a port is in use but the port
Activity LED remains off.
• Off. Both the port Link Speed LED and port Activity LED remain off when a port is in
use.
7. Click the Apply button.
Your settings are saved.
Enable the Power Saving Mode
The power saving mode enables the IEEE 802.3az Energy Efficient Ethernet (EEE) function,
cable length power saving, and link-up and link-down power saving:
• EEE. Combines the Energy Efficient Ethernet (EEE) 802.3 MAC sublayer with the
100BASE-TX, 1000BASE-T, and 10GBASE-T physical layers to support operation in Low
Power Idle (LPI) mode. When LPI mode is enabled, systems on both sides of the link can
disable portions of their functionality and save power during periods of low link utilization.
• Short Cable Power Saving. Dynamically detects and adjusts power that is required for
the detected cable length.
• Link-Down Power Saving. Reduces the power consumption considerably when the
network cable is disconnected. When the network cable is reconnected, the switch
detects an incoming signal and restores normal power.
To manage the power saving mode:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired network connection, or connect directly to a switch that is
off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
