Desktop and Backbone Switching
22
S3300 Smart Switch
Desktop Switching
You can use the smart switch as a desktop switch to build a small network that allows users
1000 Mbps access to, for example, a file server. With full duplex enabled, the smart switch
port connected to the server or computer can provide 2000 Mbps throughput. If you use a
10 Gbps module to connect the smart switch to the file server in full-duplex operation, the
server can provide up to 20 Gbps throughput.
The following figure shows model S3300-28X-PoE+. However, you can use any of the other
S3300 models for desktop switching.

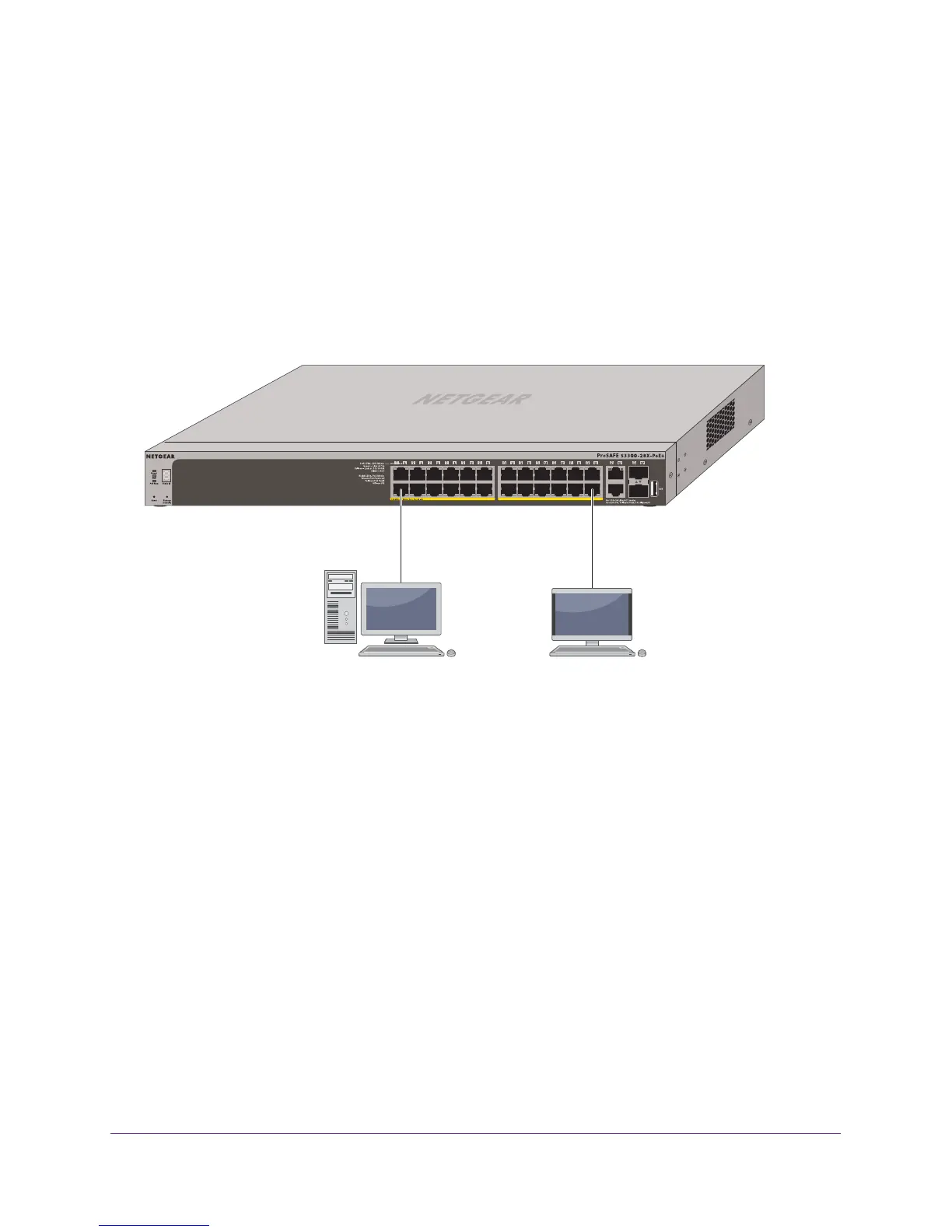

Figure 10. Desktop switching
