• Reset button. For information about using the Reset button, see Return the Router to Its Factory Default
Settings on page 160.
• Ethernet LAN ports. Use the four Gigabit Ethernet RJ-45 LAN ports to connect the router to LAN
devices.
• WAN port. Use the yellow Gigabit Ethernet RJ-45 WAN port to connect the router to a modem.
• Power On/Off button. Press the Power On/Off button to provide power to the router.
• DC power connector. Connect the power adapter that came in the product package to the DC power
connector.
USB Port on the Front Panel
A USB 3.0 port is located on the front of the router.

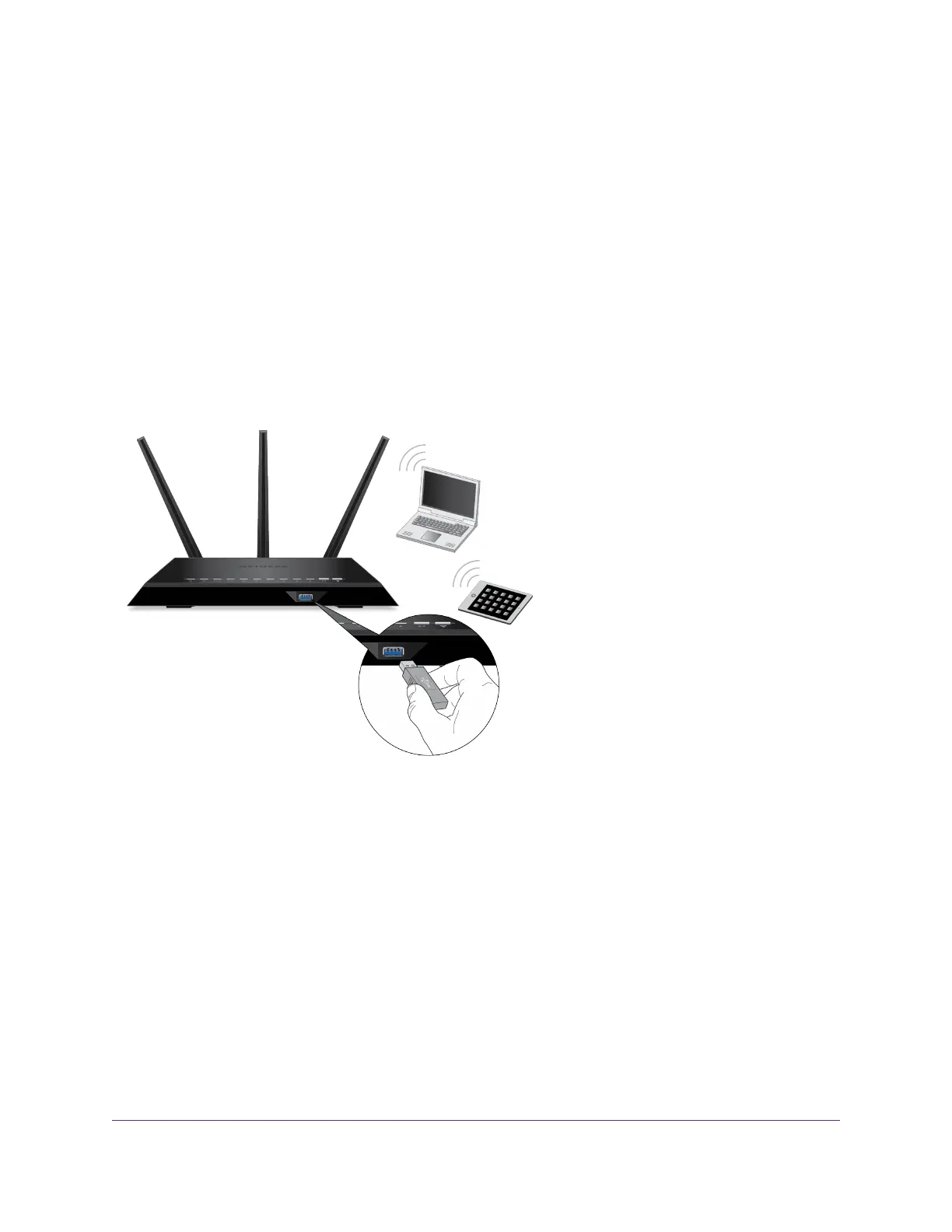

Figure 3. USB 3.0 port
Hardware Overview of the Router
13
Nighthawk AC1750 Smart WiFi Router Model R6700v2
