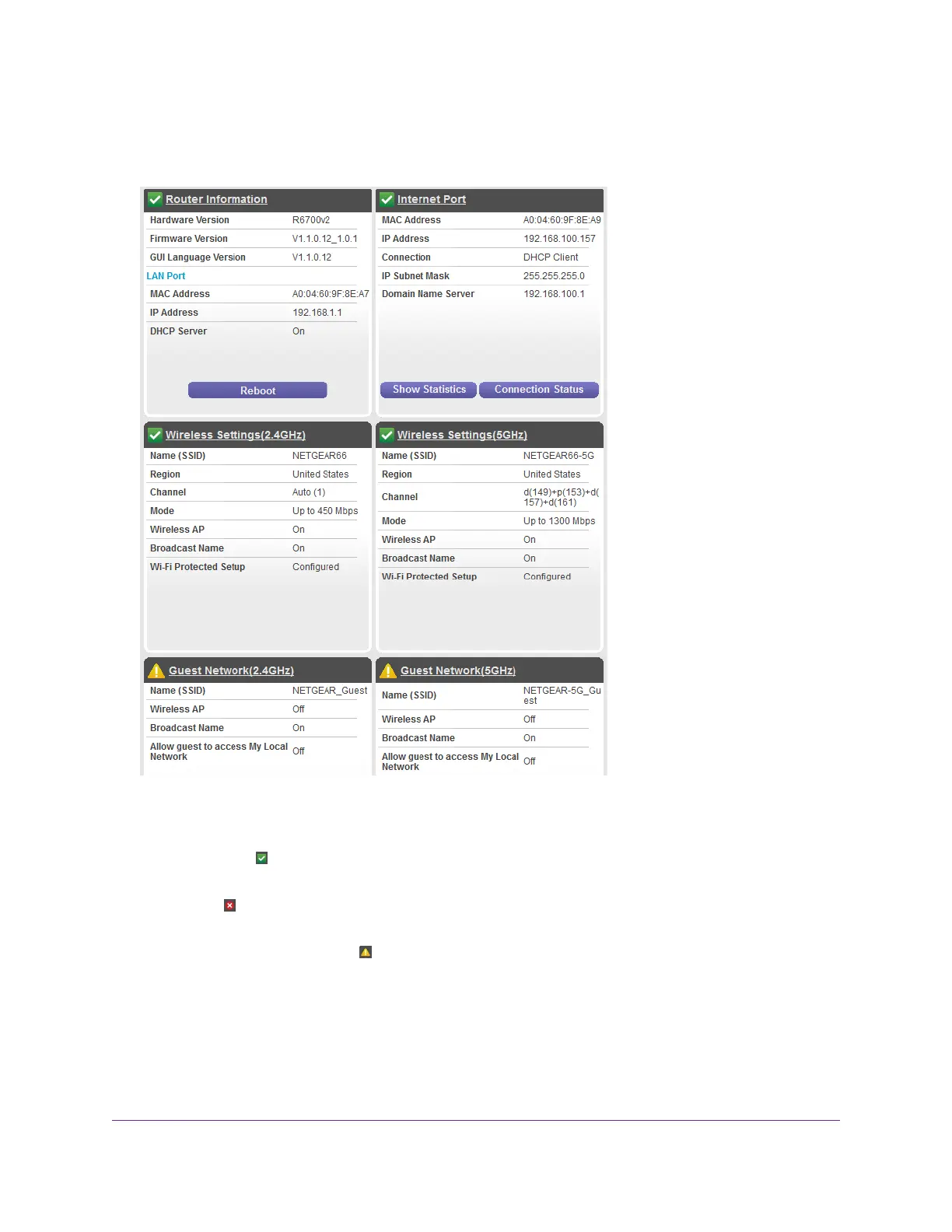

The BASIC Home page displays.
4. Click the ADVANCED tab.
The information that is shown onscreen is self-explanatory.
The information uses the following color coding:
•
A green flag indicates that the Internet connection is fine and no problems exist. For a WiFi
network, the network is enabled and secured.
•
A red X indicates that configuration problems exist for the Internet connection or the connection
is down. For a WiFi network, the network is disabled or down.
•
An amber exclamation mark indicates that the Internet port is configured but cannot get an Internet
connection (for example, because the cable is disconnected), that a WiFi network is enabled but
unprotected, or that another situation that requires your attention occurred.
Manage the Router and Monitor the Traffic
163
Nighthawk AC1750 Smart WiFi Router Model R6700v2
