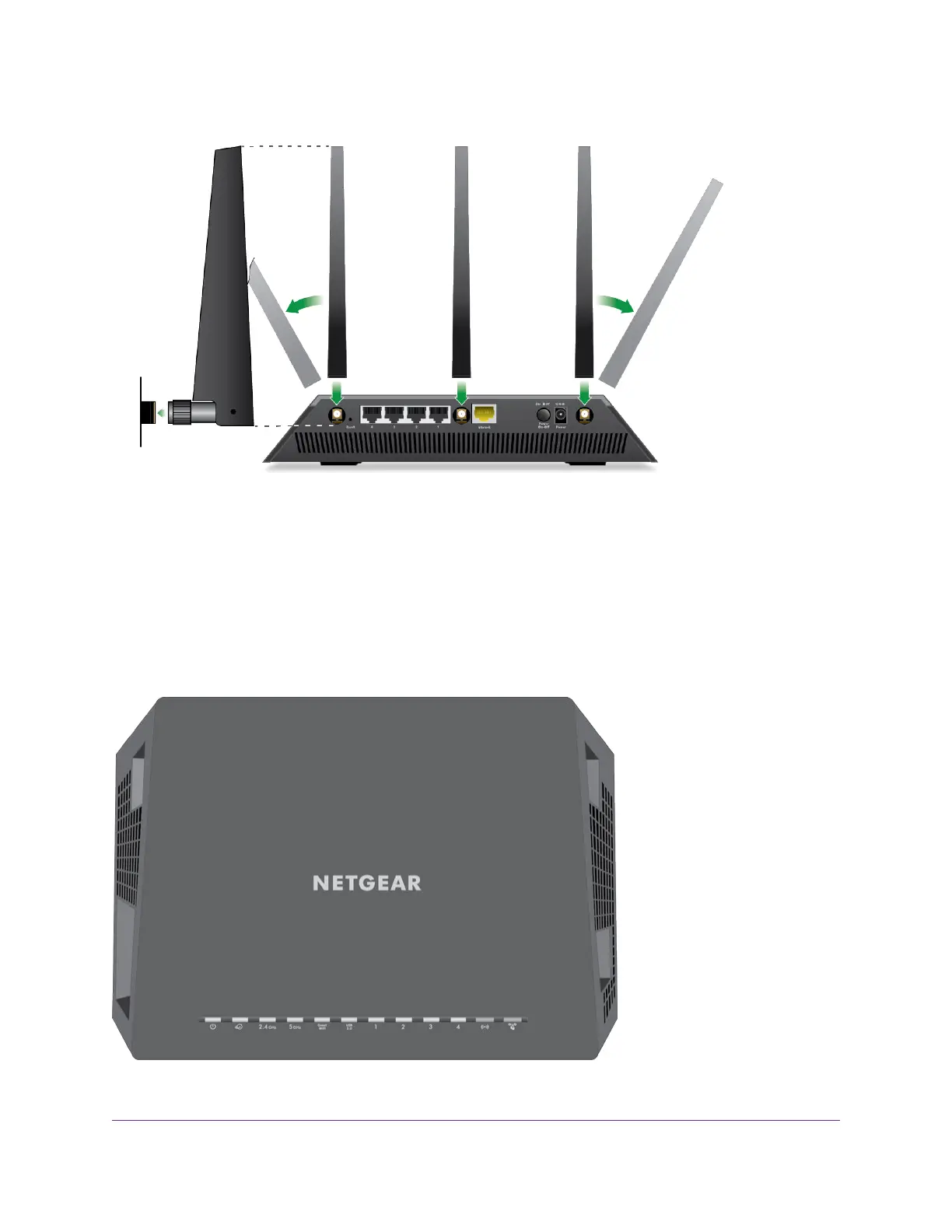

3. Attach the antennas on the threaded antenna posts.
4. Position the antennas for the best WiFi performance.
We recommend that the center antenna be vertical and that you aim the others outward at 45-degree
angles, as shown.
LEDs and Buttons on the Top Panel
The status LEDs and buttons are located on the top of the router.
Figure 2. Router LEDs and buttons
Hardware Overview of the Router
12
Nighthawk AC1900 Smart WiFi Router Model R6900
