Verify wireless connectivity to your network.
a. Verify that your Connection and Status Monitor information matches your wireless
network.
b. Check the two LEDs on the WG511T:
c. Verify connectivity to the Internet or network resources.
Note: If you are unable to connect, see troubleshooting tips in the Basic Installation section of
the Reference Manual on the NETGEAR 108 Mbps Wireless PC Card WG511T Resource CD
(SW-10036-01).

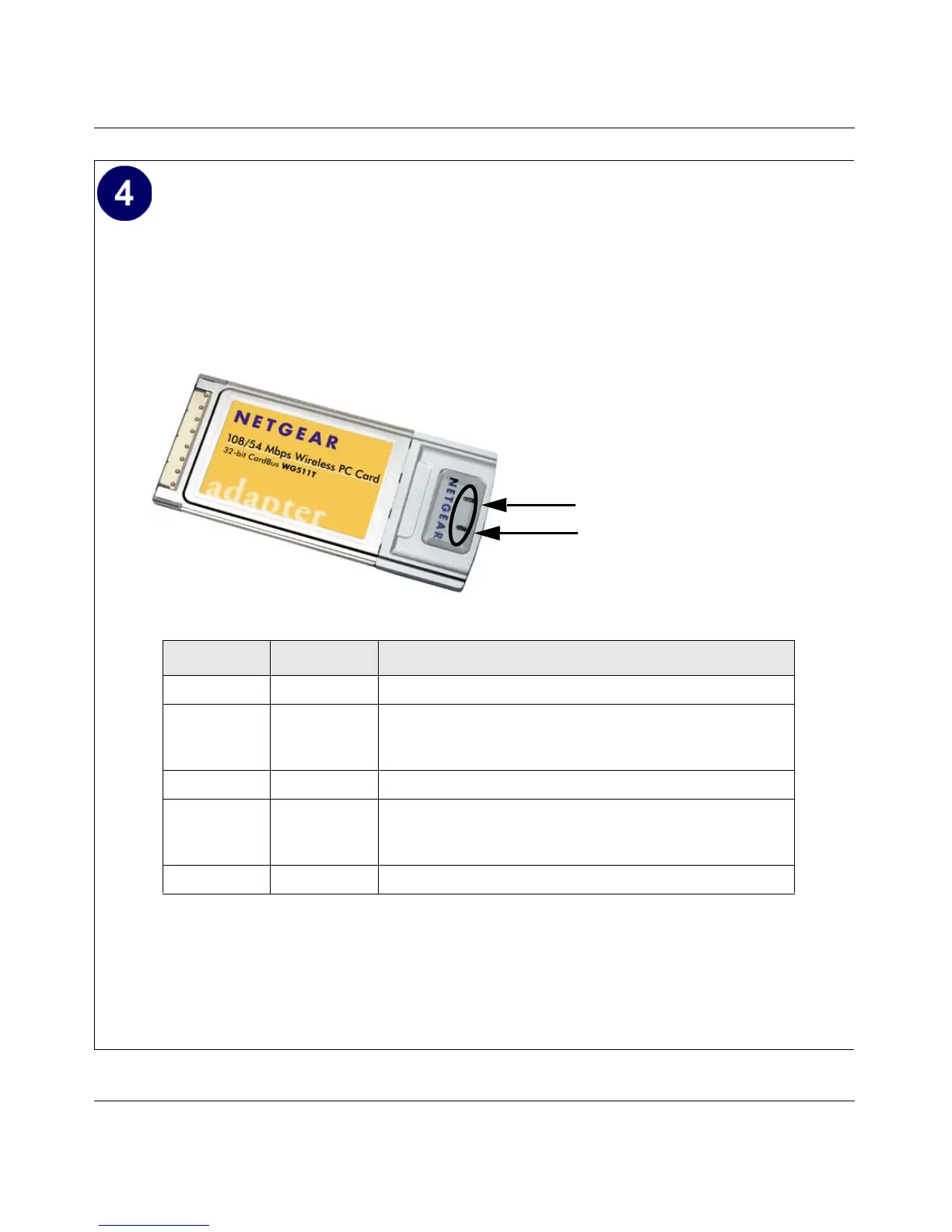

LED 1
LED 2
Table 3-2: LED Descriptions
LED 1 LED 2 Meaning
Slow blink OFF Power save mode (default from power up or reset)
Alternate
blink
Alternate
blink
Looking for network association
Power LED goes ON; Network LED is OFF; then Power
LED goes OFF and Network LED goes ON
Slow blink Slow blink Associated or joined with network; no activity
Fast blink Fast blink Associated or joined with network; blink rate increases
with activity on the network over the air or locally on the
network
OFF OFF No power applied to the card

NETGEAR WG511T Specifications

Radio Specifications

radio data rate	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps and 108 Mbps in turbo mode
frequency US	2.412 ~ 2.462 GHz
frequency Japan	2.412 ~ 2.484 GHz
frequency Europe ETSI	2.412 ~ 2.472 GHz
frequency Spain	2.457 ~ 2.462 GHz
frequency France	2.457 ~ 2.472 GHz

Security

encryption	40-bit (also called 64-bit) and 128-bit WEP Encryption
electromagnetic compliance	FCC Part 15 Sub Class B
modulation type	OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK

Physical Specifications

dimensions	119 x 54 x 6 mm (4.68 x 2.12 x .25 in.)
weight	46 g (1.6 oz)
warranty	NETGEAR 1-year warranty
