NETGEAR WG511T User Manual

User Manual for the NETGEAR 108 Mbps Wireless PC Card 32-bit CardBus WG511T
Configuration 4-3
How to Configure an Infrastructure Mode Profile
Follow the instructions below to configure an infrastructure mode profile for connecting to an
access point.
1. Run the WG511T Configuration Utility.
a. Make sure the WG511T software is installed and the WG511T is fully inserted in an
available CardBus slot in your PC.
b. Open the configuration utility by clicking on the WG511T icon in the Windows
system tray.

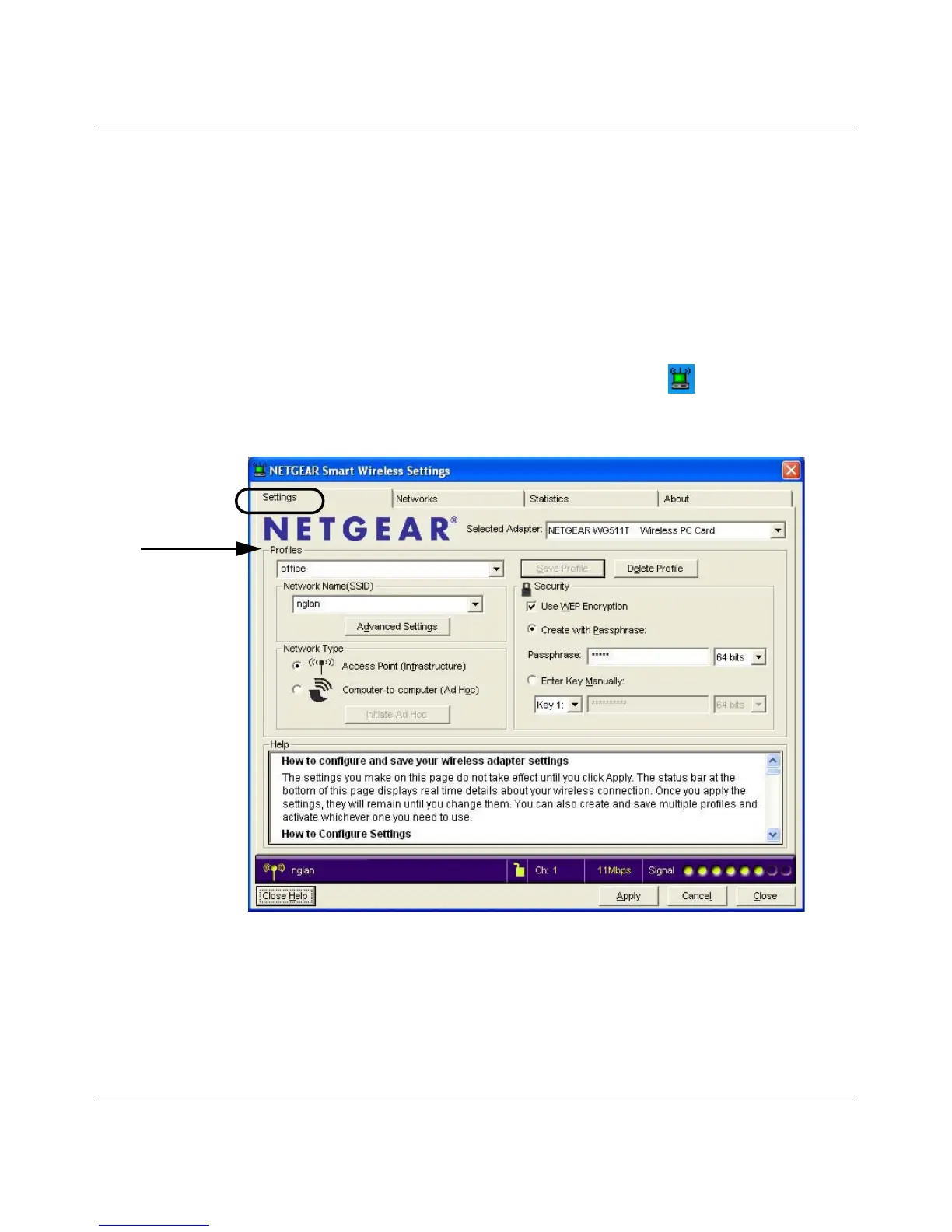

Figure 4-2: Smart Wireless Settings page
c. Click on the Settings tab to display the view shown above.
2. Configure the wireless Network settings.
a. In the Network Type section, be sure that Infrastructure is selected.

NETGEAR WG511T Specifications

Radio Specifications

radio data rate	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps and 108 Mbps in turbo mode
frequency US	2.412 ~ 2.462 GHz
frequency Japan	2.412 ~ 2.484 GHz
frequency Europe ETSI	2.412 ~ 2.472 GHz
frequency Spain	2.457 ~ 2.462 GHz
frequency France	2.457 ~ 2.472 GHz

Security

encryption	40-bit (also called 64-bit) and 128-bit WEP Encryption
electromagnetic compliance	FCC Part 15 Sub Class B
modulation type	OFDM with BPSK, QPSK, 16QAM, 64QAM, DBPSK, DQPSK, CCK

Physical Specifications

dimensions	119 x 54 x 6 mm (4.68 x 2.12 x .25 in.)
weight	46 g (1.6 oz)
warranty	NETGEAR 1-year warranty
