NETGEAR WGR614 v8 User Manual

54 Mbps Wireless Router WGR614v8 User Manual
Configuring Internet Connectivity 1-5
v1.1, May 2008
Viewing and Configuring Basic ISP Settings
Settings related to your Internet service are specified in the Basic Settings screen. To access the
Basic Settings screen, from the main menu of the router’s Web Configuration Interface, under
Setup, select Basic Settings. The content you see in the Basic Settings screen depends on whether
your ISP requires that you log in with a user name and password for Internet access.
• No login required by ISP. If no login is required by your ISP, the following settings appear in
the Basic Settings screen.

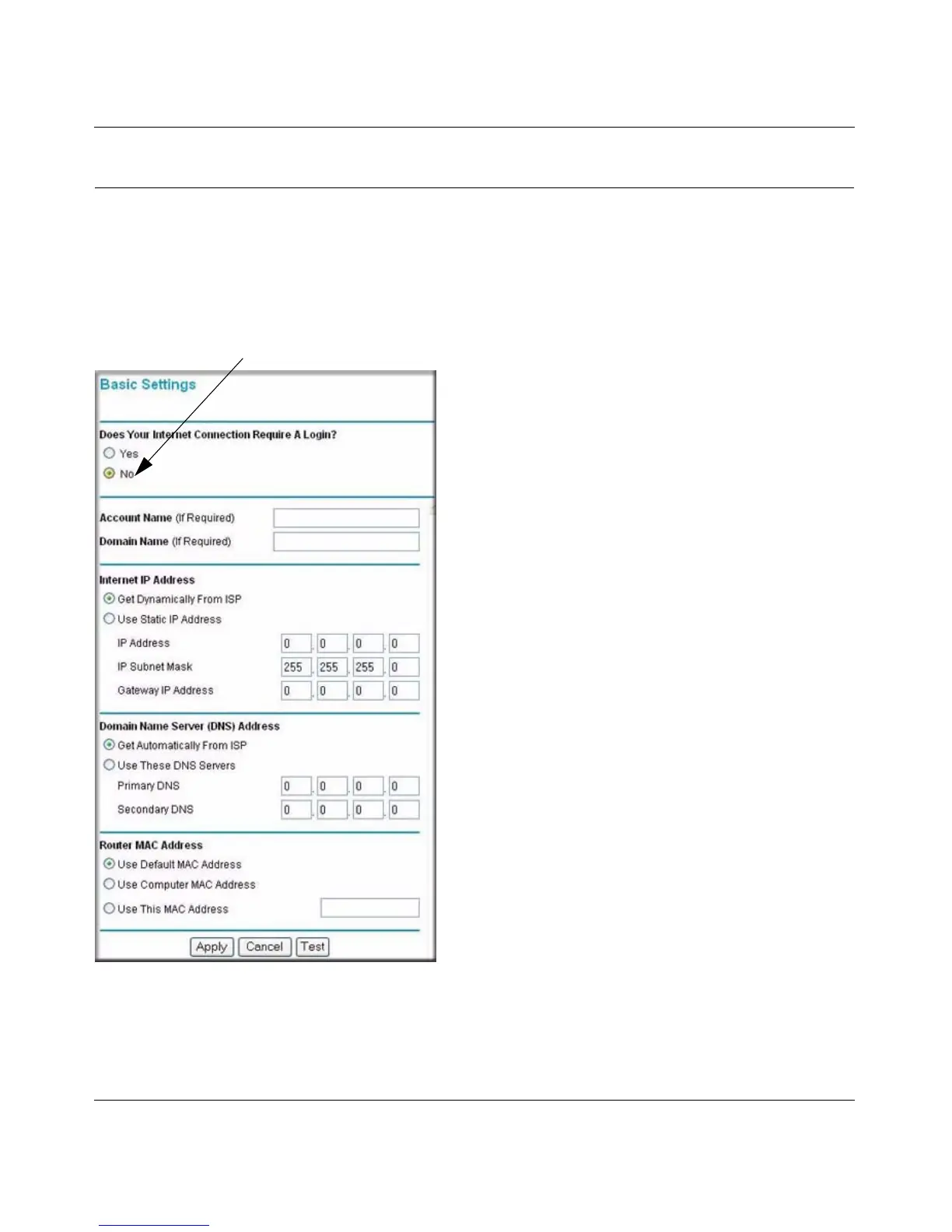

Figure 1-4
ISP does not require login

NETGEAR WGR614 v8 Specifications

General

Wireless Standard	802.11b/g
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Wireless Speed	Up to 54 Mbps
Power Supply	12V DC, 1A
Weight	0.3 kg
