NETGEAR WGR614 v8 User Manual

54 Mbps Wireless Router WGR614v8 User Manual
Safeguarding Your Network 2-15
v1.1, May 2008

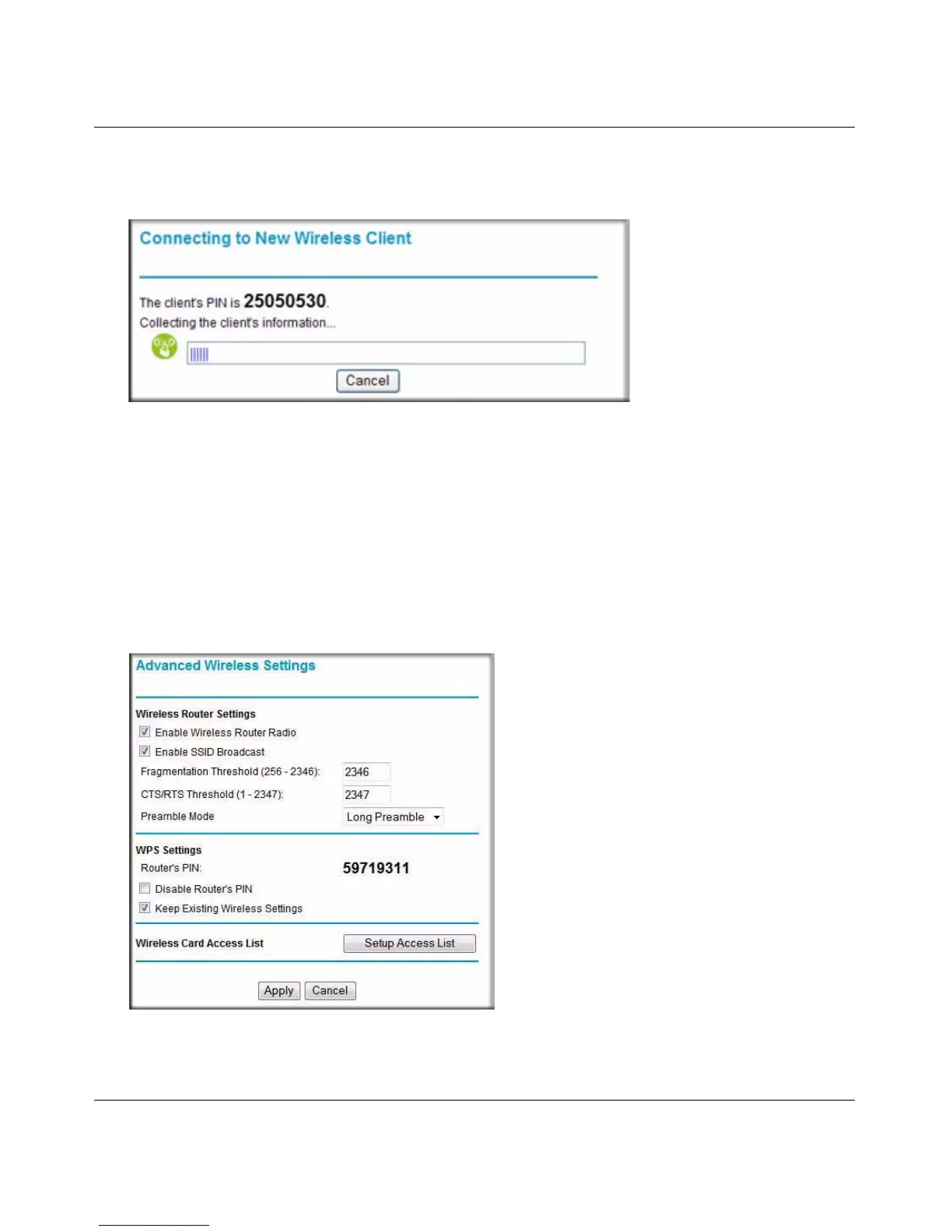

6. Click Next. The following screen displays, and the Smart Wizard initiates the wireless
connection:
7. Finally, use the WPS feature of the wireless client to establish a connection with the router.
Refer to the wireless client documentation for instructions on completing this step.
Configuring the WPS Settings
1. Log in to the router as described in “Logging In to Your Wireless Router” on page 1-2.
2. Select Wireless Settings under Advanced in the main menu.
Figure 2-9
Figure 2-10

NETGEAR WGR614 v8 Specifications

General

Wireless Standard	802.11b/g
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100 Mbps
WAN Ports	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Wireless Speed	Up to 54 Mbps
Power Supply	12V DC, 1A
Weight	0.3 kg
