NETGEAR WNDR3400v2 User Manual

Administration
72
N600 Wireless Dual Band Router WNDR3400v2

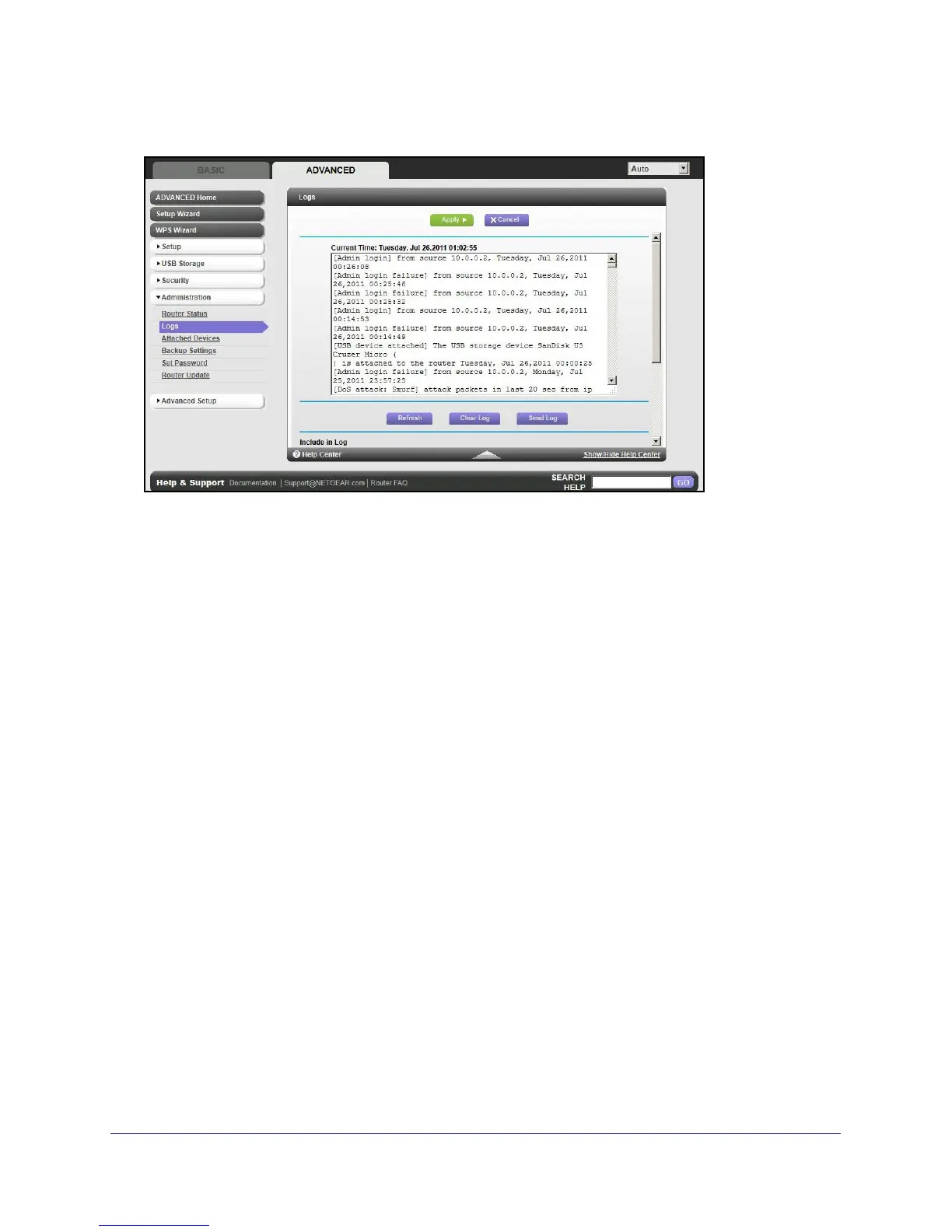

Select Advanced > Administration > Logs. The Logs screen displays.
The log screen shows the following information:
• Date and time. The date and time the log entry was recorded.
• Source IP. The IP address of the initiating device for this log entry.
• Target address. The name or IP address of the website or news group visited or to which
access was attempted.
• Action. Whether the access was blocked or allowed.
To refresh the log screen, click the Refresh button.
To clear the log entries, click the Clear Log button.
To email the log immediately, click the Send Log button.
Manage the Configuration File
The configuration settings of the N600 Wireless Dual Band Router are stored within the
router in a configuration file. You can back up (save) this file to your computer, restore it, or
reset it to the factory default settings.

NETGEAR WNDR3400v2 Specifications

General

Brand	NETGEAR
Model	WNDR3400v2
WiFi Range	Medium to large homes
Wireless Standard	802.11a/b/g/n
Frequency Band	2.4 GHz and 5 GHz
USB Ports	1 x USB 2.0
WiFi Speed	Up to 300 Mbps (2.4 GHz) + 300 Mbps (5 GHz)
Ethernet Ports	4 x 10/100 Mbps
Security Features	WPA/WPA2
Firewall Features	SPI, NAT
Antenna	Internal antennas
Weight	0.7 lb (0.32 kg)
