Hardware Setup
10
N300 Wireless Gigabit Router WNR3500Lv2
Back Panel

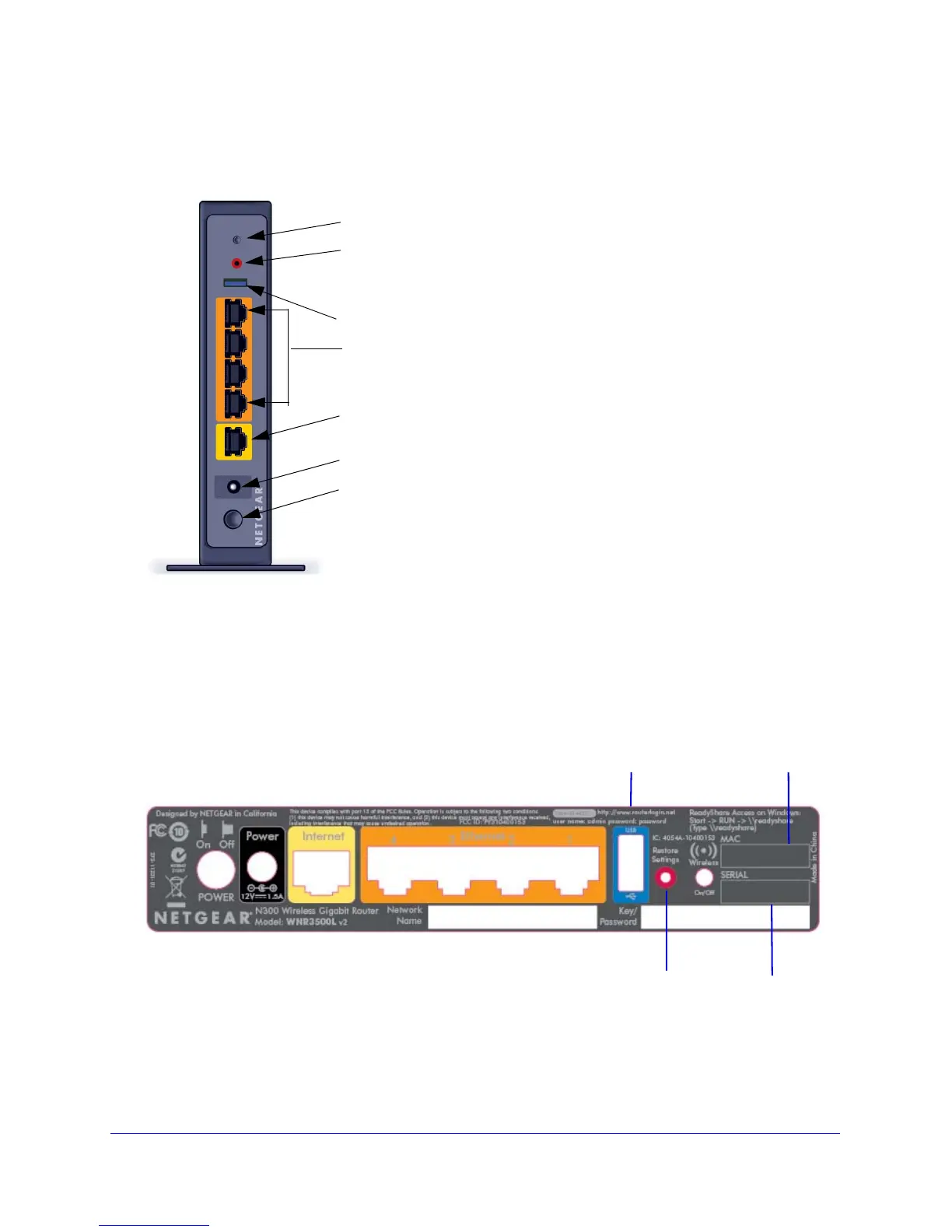

The back panel has the connections shown in the following figure.
WiFi On/Off button. Turn the wireless radio in the router on or off.
Restore Factory Settings button. Press and hold this
button for about 5 seconds to reset the router to its factory
default settings.
USB port.
Four local area network (LAN) 10/100/1000 Mbps Ethernet
ports for connecting the router to your local computers.
Internet/Wide Area Network (WAN) Ethernet port for
connecting the router to a cable or DSL modem.
AC power adapter outlet for connecting the power adapter.
Power On/Off button.
Figure 3. Back panel
Label
The label on the bottom of the router shows the Restore Settings button, WPS PIN, login
information, MAC address, and serial number.
Login user name and
MAC address
Serial number
Restore
default password
Factory
Settings
Figure 4. Label on router bottom
See Factory Settings on page 103 for information about restoring factory settings.
