NETGEAR XAV5601 User Manual

Powerline Utility
11
Powerline AV+ 500 Nano XAV5601
Install the Powerline Utility
This utility allows you to set your own unique Powerline network encryption key, and prioritize
traffic passing through your Powerline network.
All devices on a Powerline network can be managed from one computer. If you add another
Powerline device to a Powerline network, you can install the Powerline Utility on the
computer connected locally to the new adapter, or open the utility on the computer originally
used to set up the Powerline network encryption key. You can use any computer to manage
the network, but this procedure assumes that you are working from the computer that is
connected to a Powerline adapter.
 To install the Powerline Utility:
The Powerline Utility is a free download available from the NETGEAR support website.
1. Launch an Internet browser and visit
http://support.netgear.com/app/answers/detail/a_id/19255.

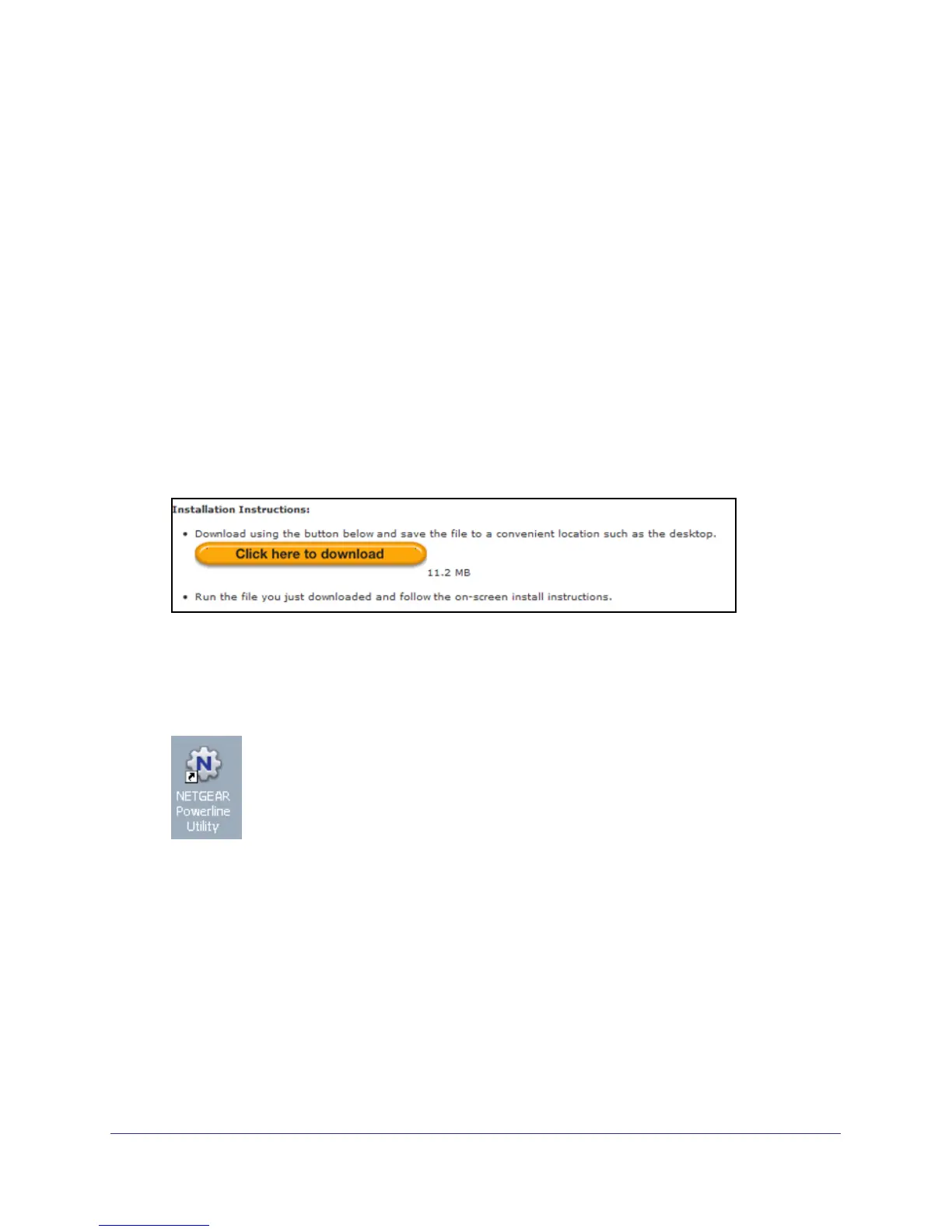

2. Scroll down to display the download instructions:
3. Click the Click here to download button and download the utility to your computer.
4. Run the file that you downloaded, and follow the wizard prompts to install the Powerline
Utility. Click Finish to complete the wizard.
The Powerline Utility shortcut icon displays on your desktop.
5. There are two ways to launch the Powerline Utility:
• Click this icon located on your desktop.
• Select Start > Programs > NETGEAR > NETGEAR Powerline Utility.

NETGEAR XAV5601 Specifications

General

Data and routing protocols	IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-Tx) IEEE 802.3ab (1000BaseTx)
Security encryption type	128-bit AES
MAC addresses	64: number of nodes that can be added to a single network
Frequency band:	2 –80Mbps
Modulation type:	OFDM symbol modulation
AC input	100–125V~, 0.2A max in North America and 200–250V~, 0.2A max in other regions
Power consumption	Normal: 4.5W, Power saving mode: <0.5W
Operating temperature	0 to 40 C (32º to 104º F)
Operating humidity	10–90% maximum relative humidity, noncondensing
Storage humidity	5–95% maximum relative humidity, noncondensing
Electromagnetic emissions:	FCC Part 15 Class B; CE-EMC Class B; 3-home FCC Certificate
Safety agency approvals:	UL Listed (UL 60950-1:2nd Ed.) /cUL (CSA C22.2 No.60950-1-07 2nd Ed.); CE LVD; TUV CB, TUV GS
Bandwidth	5 00Mbps
Data transfer rate	U p to 200M bps with real throughput greater than 80Mbps
Compatibility	Not HomePlug v1.0 or HomePlug v1.0 Turbo compatible

Weight and Dimensions

Dimensions	114 x 55 x 32.5 mm (4.5 x 2.2 x 1.28 in.)
Weight	0.174 kg (0.38 lb)
