Powerline Utility
13

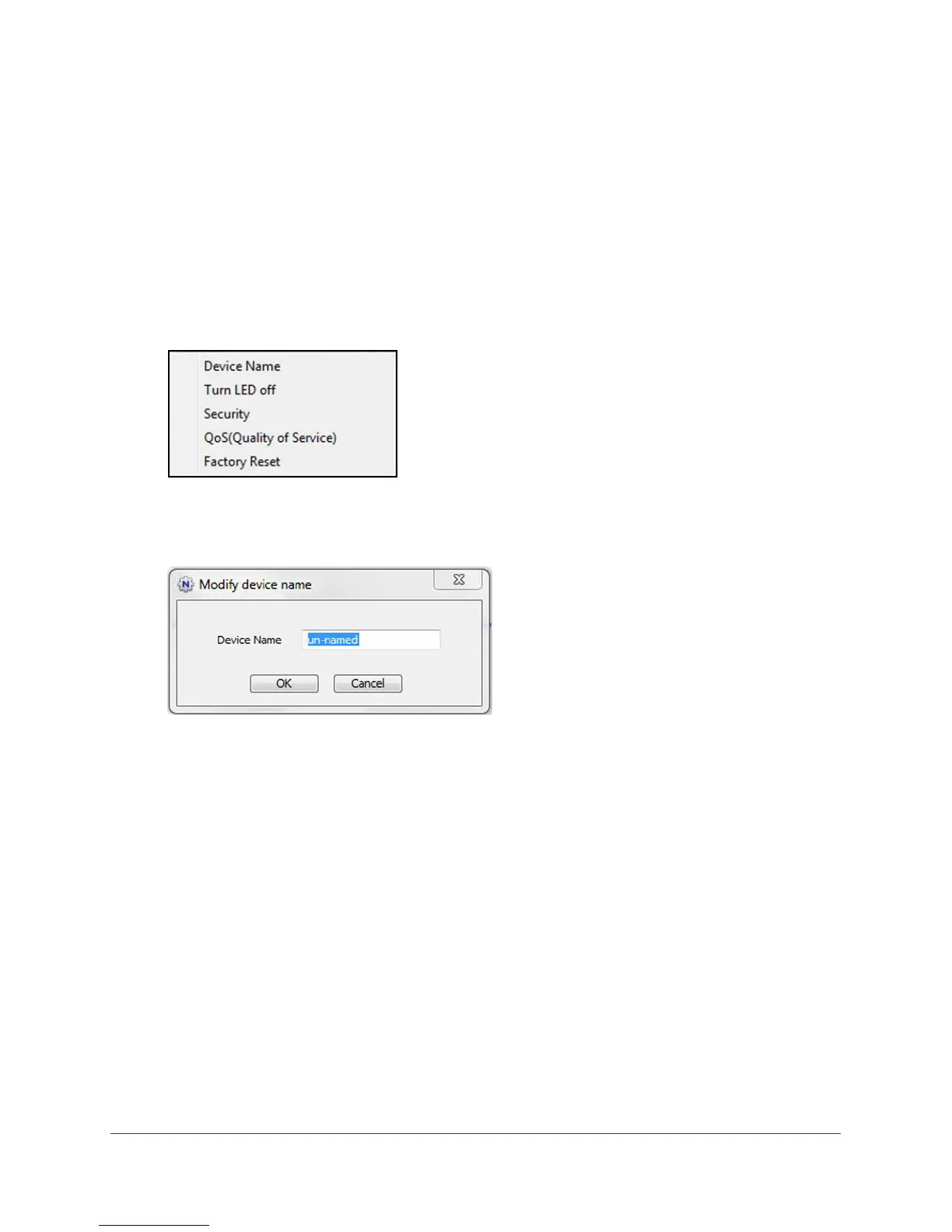

Powerline AV+ 500 Nano XAV5601
Change the Name of a Powerline Device
Powerline devices are identified by their model number and name. Any Powerline devices
that are plugged in and connected are detected by the Powerline Utility, and are shown on
the Powerline Utility main screen. If no name has been assigned to a Powerline device, it is
shown as un-named.
To name a Powerline device in your Powerline network:
1. From the Powerline Utility main screen, click the device you want to name, and the
following pop-up menu displays:
2. Select Device Name. The utility responds that connectivity will be temporarily lost if you
continue.
3. Click OK. The following screen displays:
4. Enter a new name for the Powerline device, and click OK.
Turn LEDs Off or On
For each device in your Powerline network, you can turn the LEDs off or on. To do this, follow
these steps:
1. Click the Powerline device icon on the Powerline Utility main screen.
2. On the pop-up menu, select Turn LED off.
Note: This feature is a toggle. You can turn off LEDs if they are turned on, or
turn them on if they are currently turned off.
A screen displays advising you that connectivity will be temporarily lost while the LEDs are
being reset.

Other manuals for NETGEAR XAV5601

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR XAV5601 and is the answer not in the manual?

NETGEAR XAV5601 Specifications

General IconGeneral
Data and routing protocolsIEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-Tx) IEEE 802.3ab (1000BaseTx)
Security encryption type128-bit AES
MAC addresses64: number of nodes that can be added to a single network
Frequency band:2 –80Mbps
Modulation type:OFDM symbol modulation
AC input100–125V~, 0.2A max in North America and 200–250V~, 0.2A max in other regions
Power consumptionNormal: 4.5W, Power saving mode: <0.5W
Operating temperature0 to 40 C (32º to 104º F)
Operating humidity10–90% maximum relative humidity, noncondensing
Storage humidity5–95% maximum relative humidity, noncondensing
Electromagnetic emissions:FCC Part 15 Class B; CE-EMC Class B; 3-home FCC Certificate
Safety agency approvals:UL Listed (UL 60950-1:2nd Ed.) /cUL (CSA C22.2 No.60950-1-07 2nd Ed.); CE LVD; TUV CB, TUV GS
Bandwidth5 00Mbps
Data transfer rateU p to 200M bps with real throughput greater than 80Mbps
CompatibilityNot HomePlug v1.0 or HomePlug v1.0 Turbo compatible
Weight and Dimensions IconWeight and Dimensions
Dimensions114 x 55 x 32.5 mm (4.5 x 2.2 x 1.28 in.)
Weight0.174 kg (0.38 lb)
