Operations Manual Model 1100
Manual Part Number:
C5-06-4900-01-0
Manual File Name:
MN-A-0004
Manual Revision Level: E
ECO: 9760

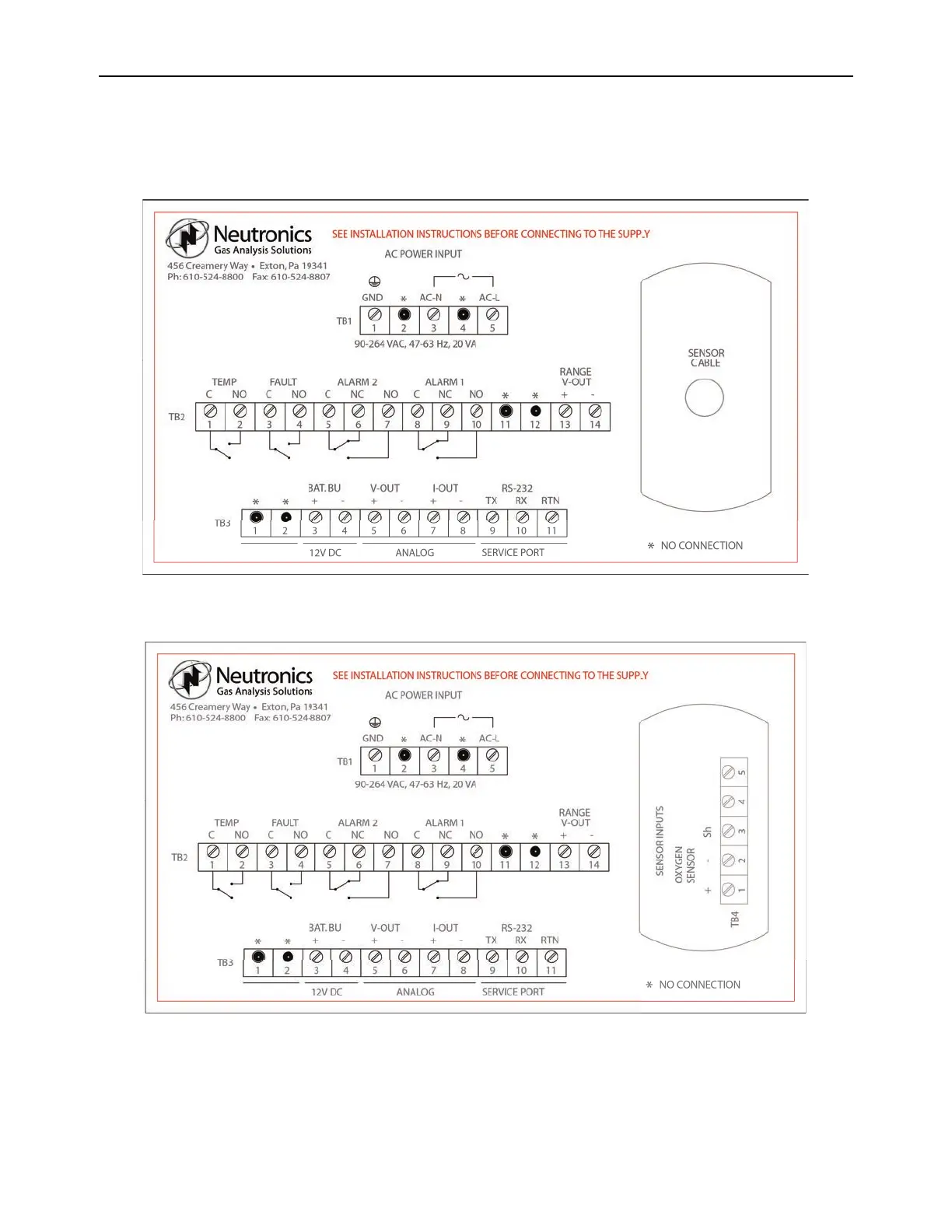

A label depicting the terminal block arrangement is affixed to the top of the chassis for easy
reference during installation and maintenance (VAC and Wall Mount configuration shown below).
The terminal blocks feature screwed terminals. The terminal blocks are also removable for ease of
wiring or removal of the analyzer module.
VAC Standard
VAC Wall Mount
Terminal 3 and 4 on TB3 are included for a 12VDC battery backup.
