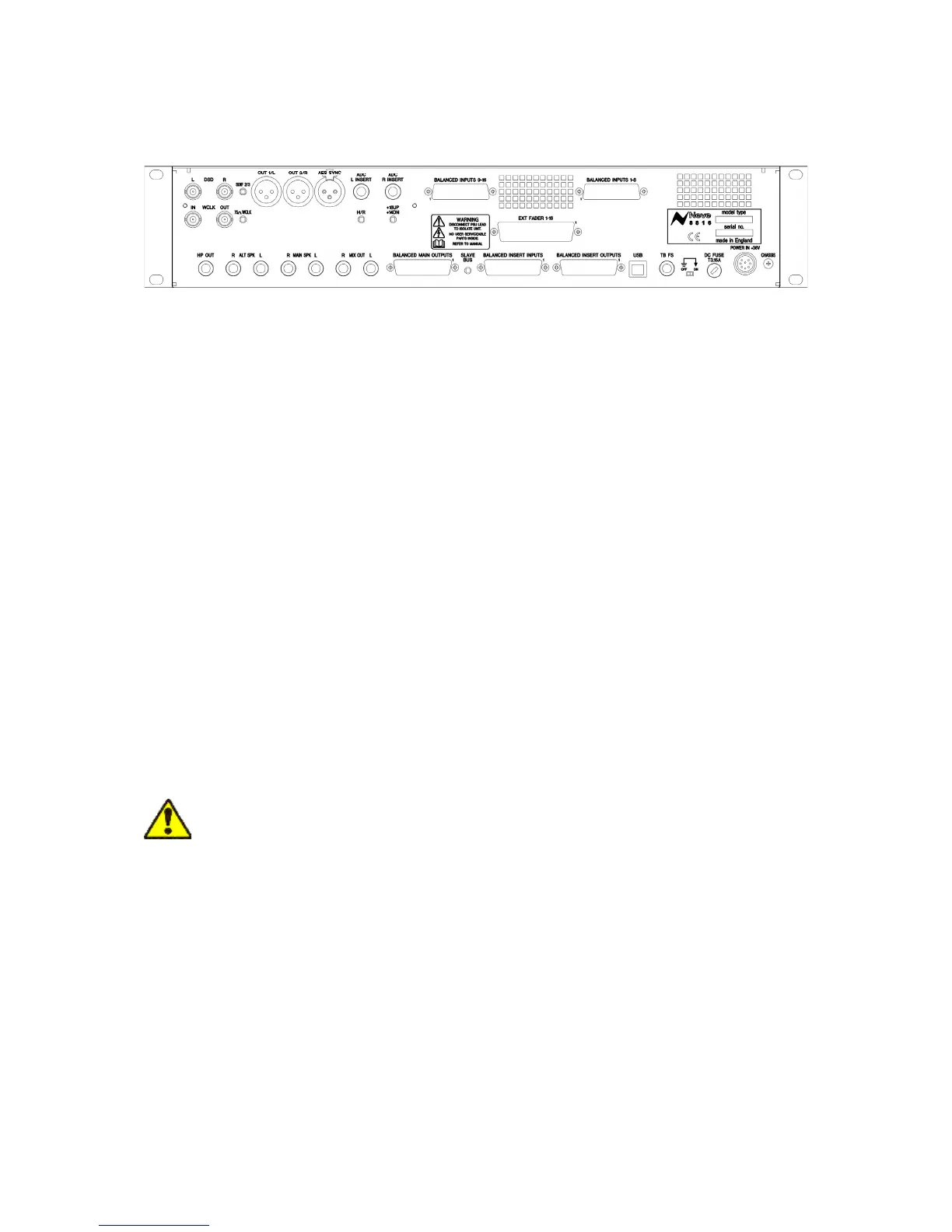

7 Rear Panel Connectors and Controls
Line Output
DB 25 Socket (standard Pro Tools
TM
and DA88
TM
connection) balanced at +4 dBu for
INS, Main and LS Outputs and 1/4 inch stereo jacks at -10dBv for Main and Alt
(loudspeaker) Outputs.
Line Input
DB 25 Socket (standard Pro Tools
TM
and DA88
TM
connection) balanced at +4dBu.
DC Power Input 8 Pin DIN Socket
Talk Back Foot Switch
1/4 inch mono jack
USB Type B male
Rear Panel Controls
Earth Lift Switch.
This will lift the mains earth connection from the chassis of the unit, allowing
for the unit to be connected to a suitable technical earth system thus avoiding hum
loops.
Slave Bus Switch
This switches the 2T bus input onto the unit’s main mix bus. This allows two 8816
units to be joined together to create a slave and master system expanding the
number of inputs. It also automatically sets the unit to be part of the Recall system
as the slave or master.
ADC Option:
