SECTION 4 – LUBRICATION AND MAINTENANCE
4–118

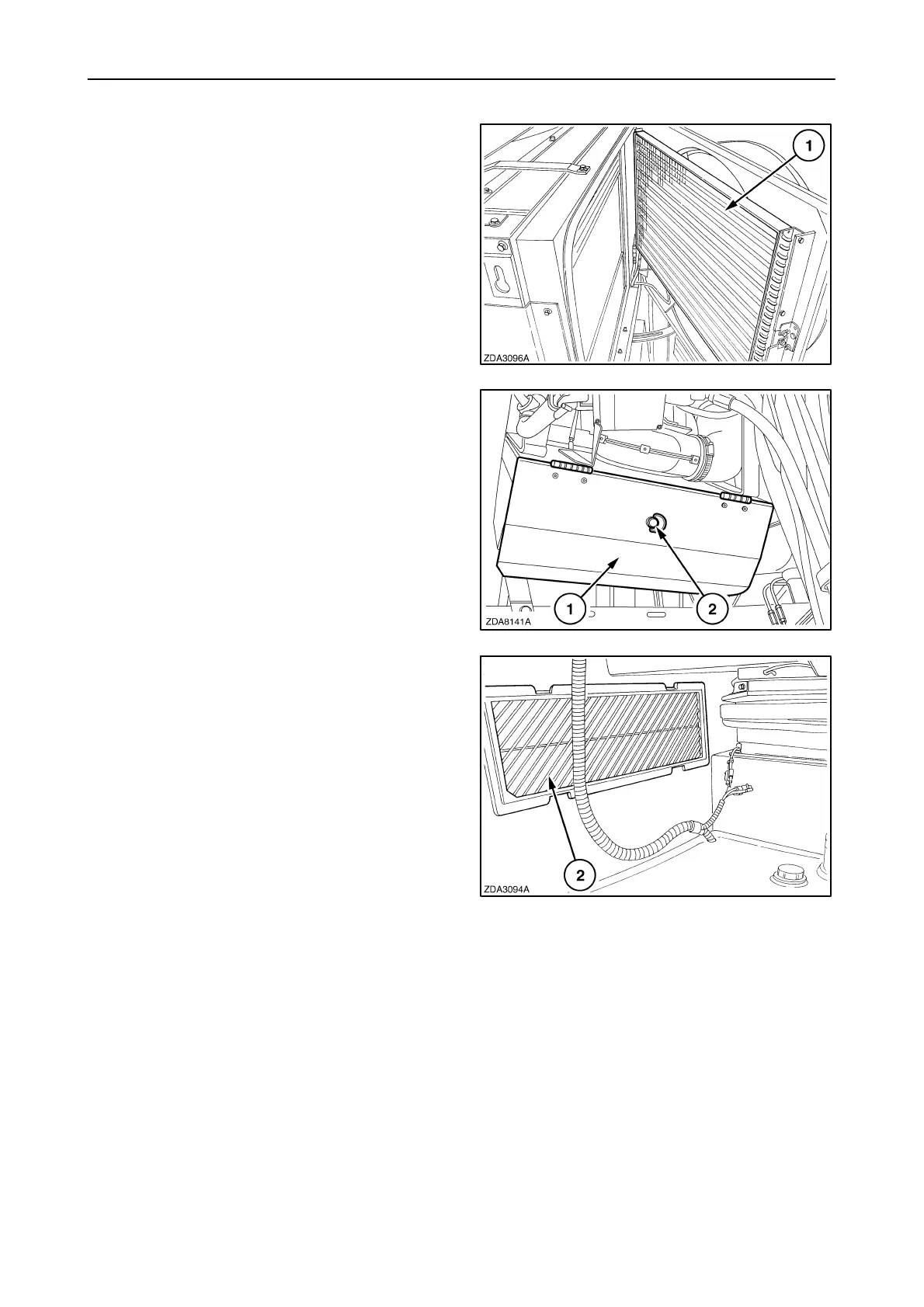

Condenser
Regularly inspect and clean the condenser 1 with
compressed air.
To gain access to clean the condenser: refer to
”Rotary dust screen and cooling system” in this
section.
220
Fresh air intake grill
The fresh air intake grill is located behind the
left-hand front shield.
To clean the dust on the fresh air intake grill, open
door 1 on the fresh air intake box by turning the latch
2.
221
Recirculation filter
The recirculation filter 2 is located in the cab, on the
right-hand side of the operator ’s seat.
Clean the cab air filter regularly and, in extremely
dusty conditions, daily.
To clean remove the recirculation grill.
NOTE: To easily remove, push up the grill and rotate
it out of the opening.
222
