ChipSHOUTER Users Manual: External Connections
22
External Connections
SMA High Voltage Output
The SMA high voltage output is where injection tips are
attached. The outer shell does not directly connect to chas-
sis ground, so you MUST NOT attach the outer shell via a
metal clamp or similar to any electrical conductor during
operation.
Note the SMA connector will wear over time, and a loose-
ly attached injection tip can cause arcing which will
permanently damage the connector, reducing performance. To
avoid this, your ChipSHOUTER comes with a “SMA Saver” at-
tached, which is a SMA male to female adapter. Do not remove
the SMA saver under normal circumstances, and instead attach
injection tips to the SMA saver output.

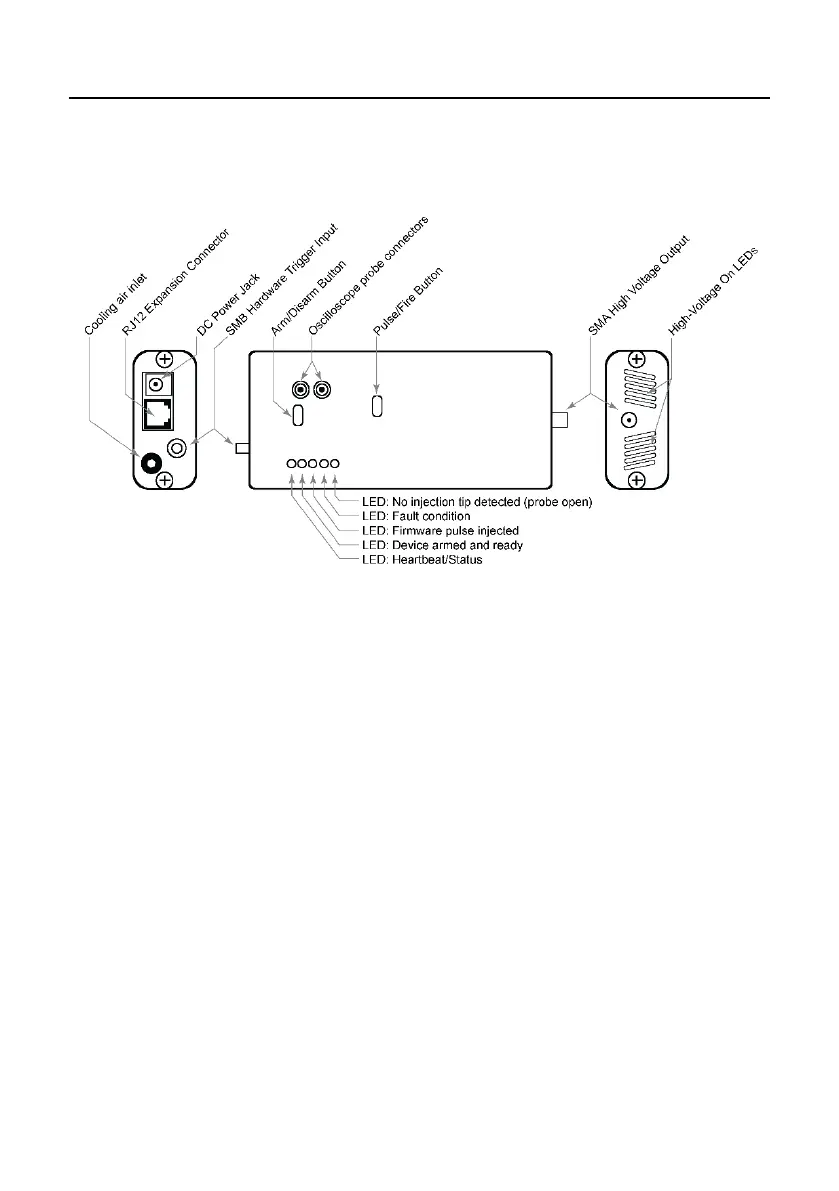

Figure 4: External connectors on the ChipSHOUTER.
