ChipSHOUTER Users Manual: Forced-Air Cooling
44
The blanking plug is a M8x1.25 x 16mm set screw, and if
the blanking plug is lost a M8x1.25 bolt can be used until
the proper replacement is procured. The air inlet must never
be left open.

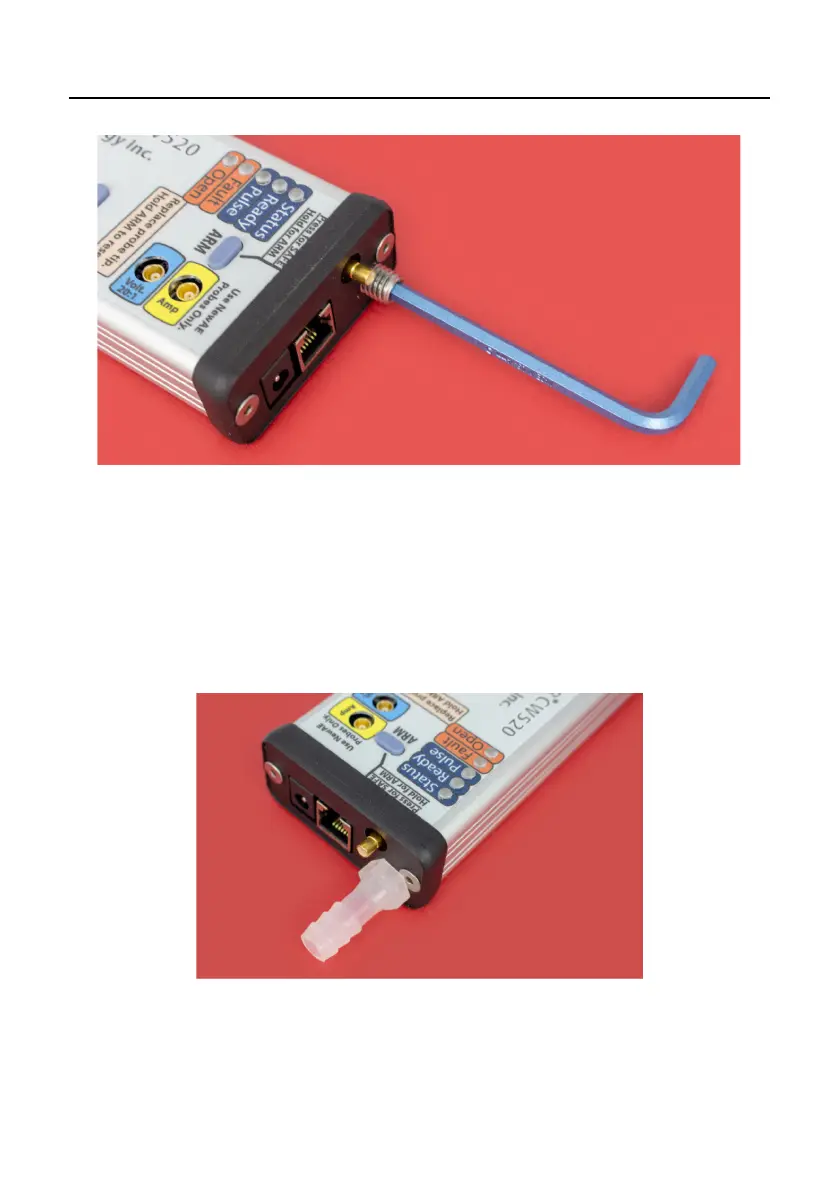

Figure 14: Adding air inlet adapter.
Figure 13: Removing blanking plug.
