ChipSHOUTER Users Manual: Ballistic Gel EMFI Target
(CW522)
33
Ballistic Gel EMFI Target (CW522)

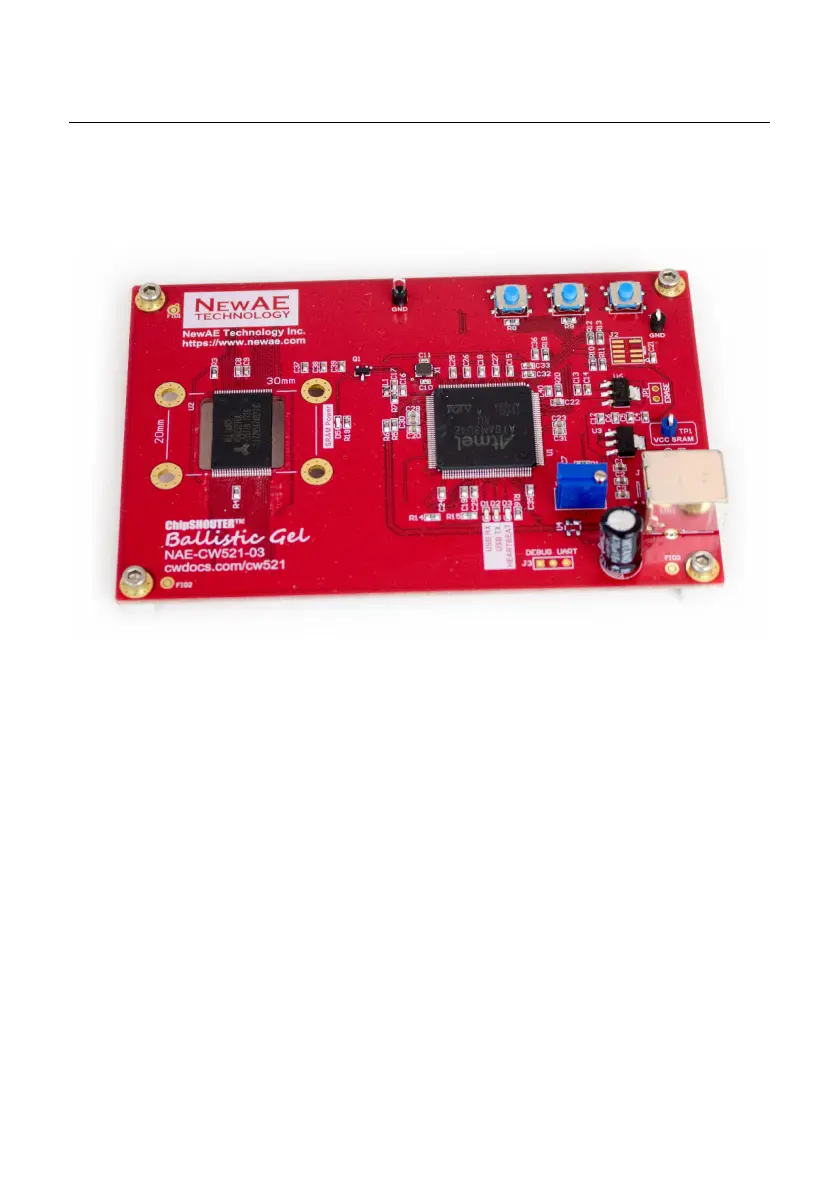

Figure 7: CW522 Ballistic Gel
The CW522 (Ballistic Gel Target) is an SRAM board with a mi-
crocontroller for control and connectivity. The target is
called the Ballistic Gel because it records an imprint of
the magnetic field injected into it, like a ballistic gel
block leaves an imprint of a projectile. This acts as an ex-
ample of memory corruption, and this process demonstrates
some of the ChipSHOUTER pulse settings.
1. Attach one of the 1mm injection tips to the high volt-
age output of the ChipSHOUTER.
2. Plug the Ballistic Gel target into your computer using
a USB cable and place the target on a flat surface.
The required drivers can be downloaded from ChipSHOUT-
ER.com.
