C80 Three Axis Digital Readout System
CONNECTIONS
Feb 2002 Newall Measurement Systems Ltd 3
NOTES
DO NOT CONNECT
THIS UNIT DIRECTLY
TO THE MAINS SUPPLY.
If you have a Newall
encoder which is not
fitted with D-type
connector, an adaptor
cable is available.
Part No. 307-60940
Contact your supplier for
details.

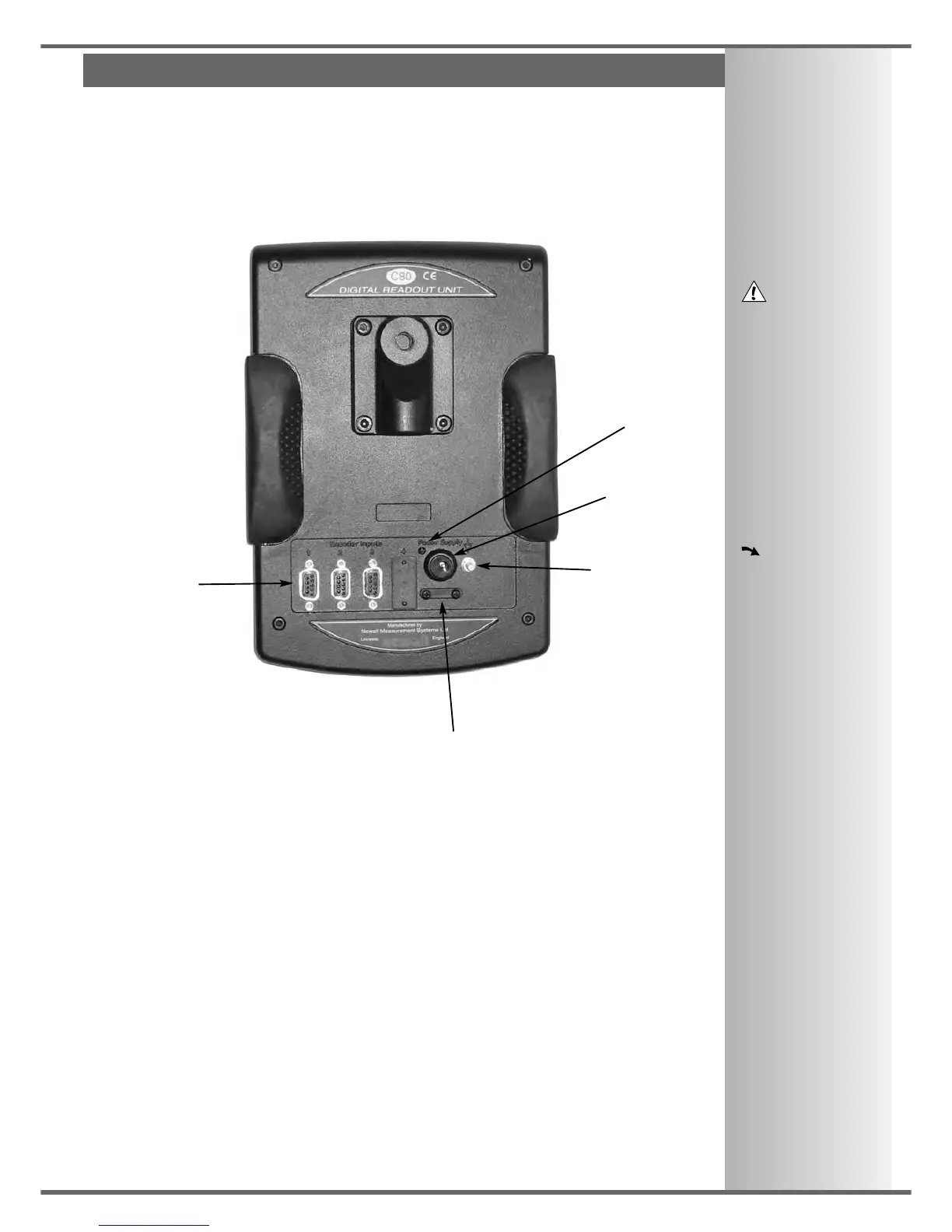

2.5mm
Power Inlet
15 – 24Vdc ±10%
@0.25A
Power
Indicator
Lamp
Encoder Inputs
9-way ‘D’
(All plugs should be
screwed finger tight)
Equipotential
Terminal
(Should be
grounded to
machine)
Cable Anchor
(The power cable
should be secured)
• The C80 is suitable for use only with Newall Spherosyn and Microsyn analogue encoders.
• Ensure that all cables are secured to prevent the connectors from dropping into hazardous
positions when unplugged, for example the floor or coolant tray.
• Ensure that all cables are routed to prevent them from being caught on moving parts.
• Turn off the power before connecting the encoder, by disconnecting the power supply connector.
• Ensure that the C80 is grounded to the machine before turning on the machine supply.
