C80 Three Axis Digital Readout System
Encoder
Machine Type

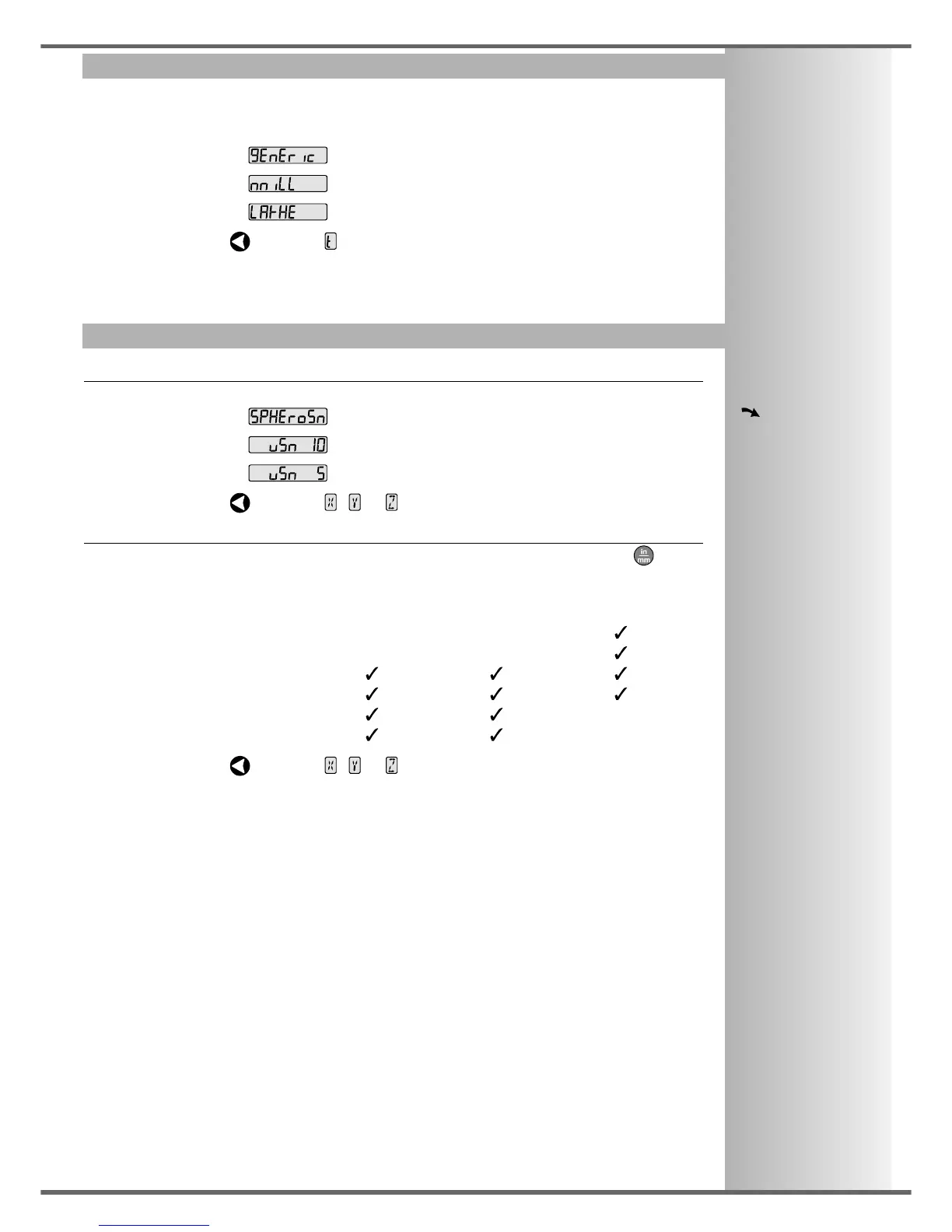

SETUP, Machine Type, Encoder
NOTES
The Encoder settings
must match the actual
encoder in use, or the
C80 will not display
correctly.
Feb 2002 Newall Measurement Systems Ltd 9
This setting allows you to choose whether the special functions for Mill or Lathe are available.
There are three possible settings:
Generic Mode all functions available
Mill Mode mill functions only
Lathe Mode lathe functions only
• Press the Select Key next to the to cycle between the three settings.
Encoder Type
There are three possible settings for each axis:
Spherosyn
Microsyn 10
Microsyn 5
• Press the Select Key next to the , or to cycle between the three settings for each axis.
Encoder Resolution
The Resolution settings available for each axis will depend on the encoder, and also on the setting.
Display Spherosyn Microsyn 10 Microsyn 5
mm in
1μm 0.001 0.00005 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2μm 0.002 0.0001 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5μm 0.005 0.0002 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10μm 0.01 0.0005 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20μm 0.02 0.001 . . . . . . . . . . . . . . . . . . . . . . . . .
50μm 0.05 0.002 . . . . . . . . . . . . . . . . . . . . . . . . .
• Press the Select Key next to the , or to cycle between the four available settings for
each axis.
