STEP 3. Remove the two screws securing the bezel to the pyroelectric detector as
shown in Figure B.3.
Caution: Use great care to ensure that the bezel does not slip or
detach prematurely. If it contacts the detector, damage is very
likely to occur.
STEP 4. Carefully lift off the window bezel assembly. Be extremely careful not to
cause damage or allow contaminates into the detector package.

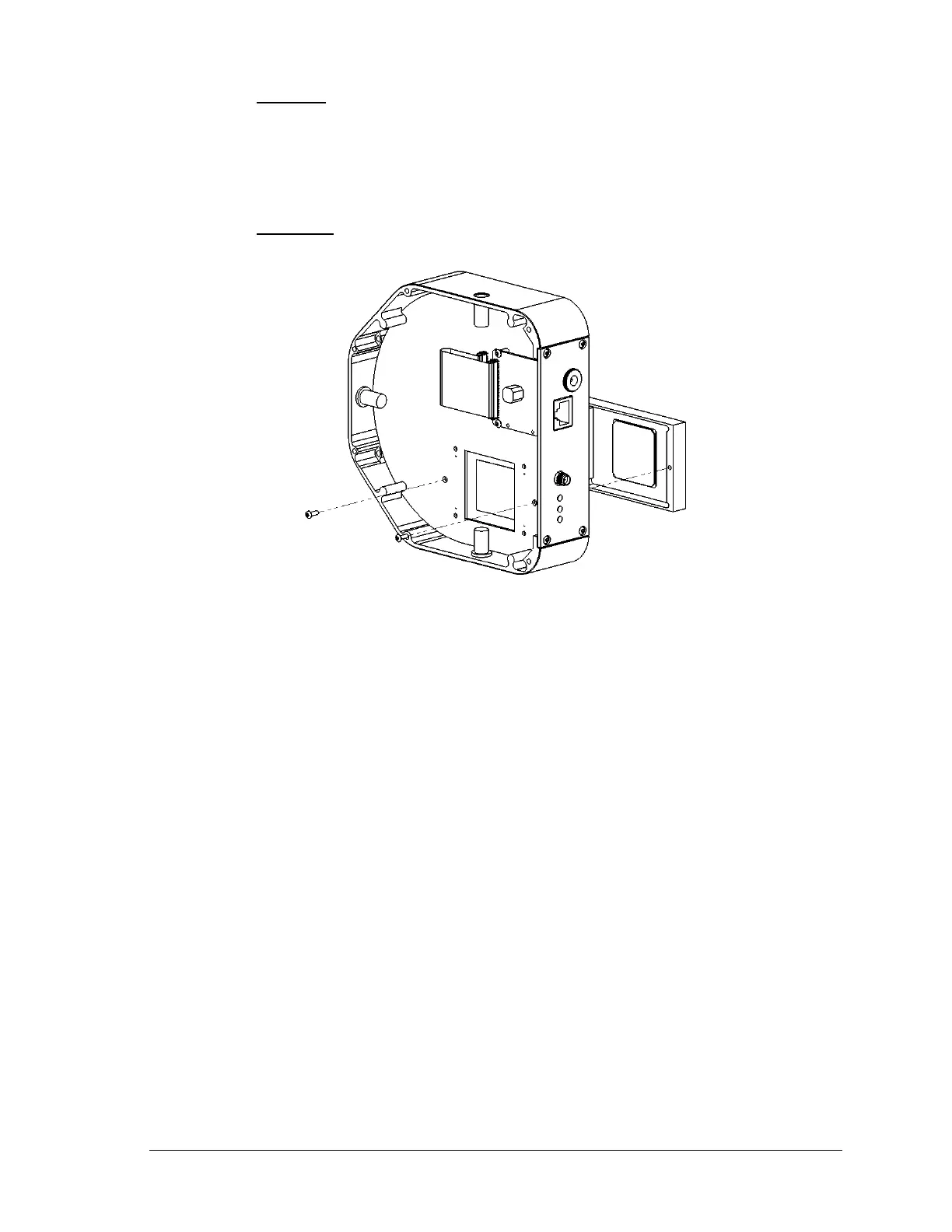

Figure B.3 Remove Bezel Assembly
Reverse the above procedure to install a new window assembly.
