49
APPENDIX D DIMENSIONS AND MOUNTING
TalkShow
®
comprises a 1 Rack Unit (RU) enclosure supplied with ‘ears’ designed to permit
mounting in standard 19” rack architecture (Figure 36).
The units weigh approximately 14 pounds (6.35 KG). A shelf or rear support will distribute the load
more evenly if rack-mounted. Good rear access for convenience when connecting cabling should be
considered. In view of the top panel vents on the chassis, at least one RU should be allowed above
the system for ventilation and cooling.

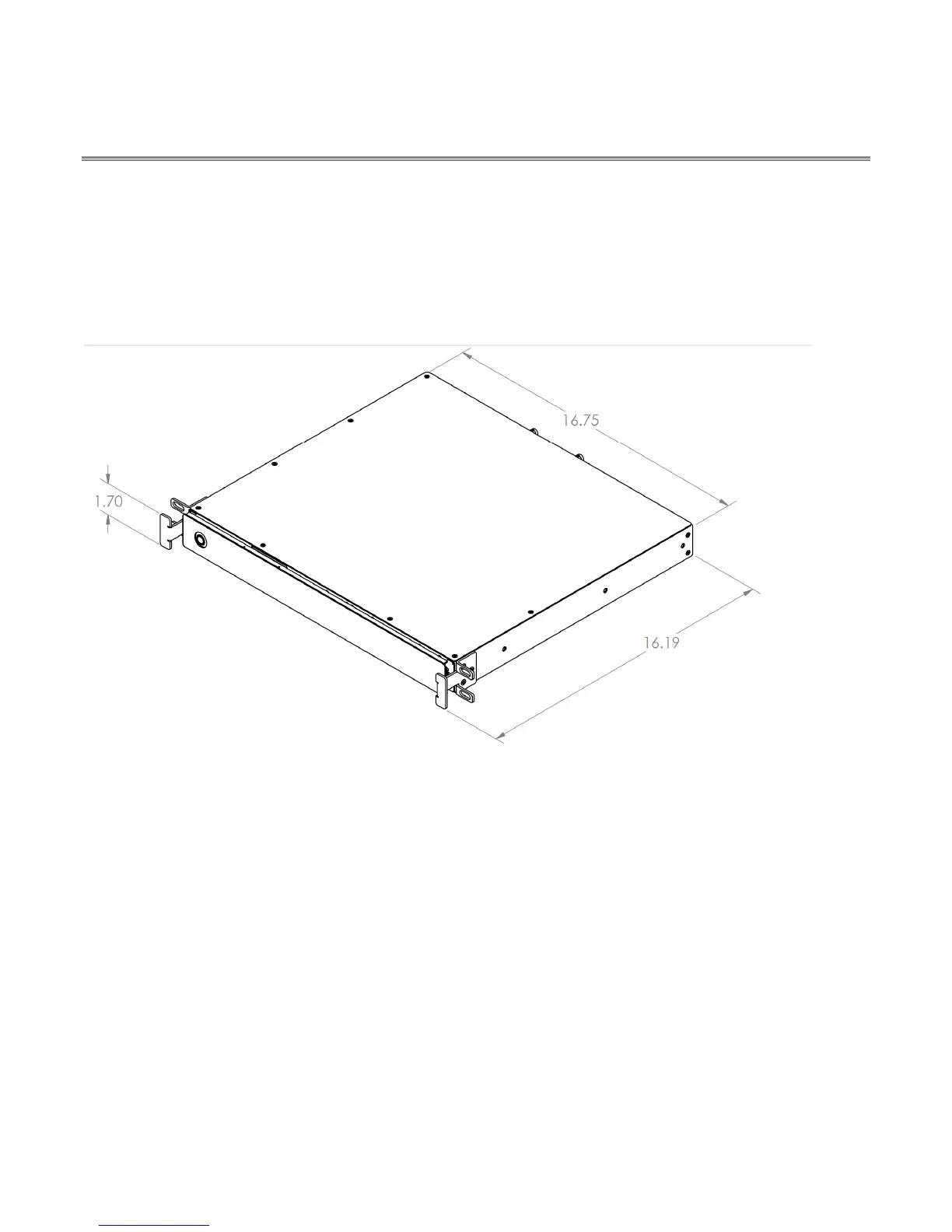

FIGURE 36
