NextBase NBDVR222 User Manual

11
1
2
3
MODE
MENU
OK
4
5
6
7
9
10
11
LEDs
Right: Blue
- The Blue LED will be on while the Dash Cam is charging. It will turn off when charging is complete,
even if the Dash Cam is still plugged in.
Left: Red
- The Red LED is permanently on while the Dash Cam is active. It will flash while recording.
Protect Button
Press whilst recording to protect the current file in event of an emergency situation.
Screen
2 Inch High Resolution Screen.
Record
Video Mode: Press to Start/Stop recording
Photo Mode: Press to take photo
In the Menus: Select/OK
Up/Down Buttons
In the Menus: Use to navigate the menus within the camera.
Video Mode: Up button toggles audio recording On/Off. Down button toggles screen On/Off
Playback Mode: Scroll through your videos/photos.

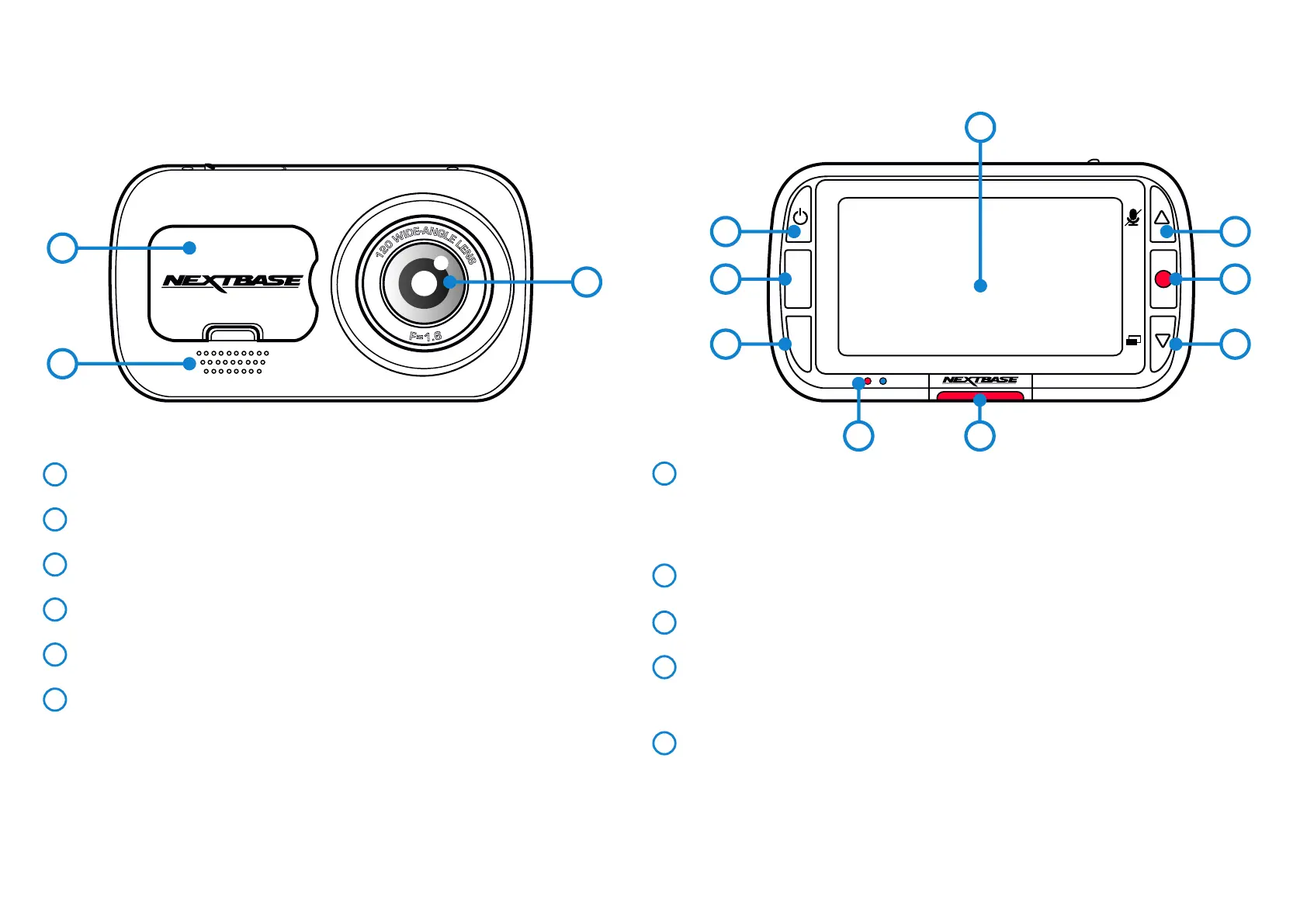

Camera Parts and Controls
See below to identify the parts and controls of your Dash Cam
Dust Cover
Mounting point located under the dust cover.
Speaker
Integrated speaker for audio playback.
Camera Lens
Wide angle 140º.
Power Button
Press and hold for 2 seconds to turn the Dash Cam On/Off.
Menu Button
Press to open the Dash Cam’s menu system.
Mode Button
Press to select video/photo/playback modes.
1
6
2
3
4
5
7
11
8
9
10
8
11

NextBase NBDVR222 Specifications

General

Night vision	Yes
Product color	Black
G-shock sensor	No
Country of origin	China
Number of cameras	1
Maximum frame rate	30 fps
Power cable length	4 m
Aperture range (F-F)	1.6 - 1.6
Main camera resolution	1920 x 1080 pixels
Main camera viewing angle	140 °
Video compression formats	MP4
Main camera sensor resolution	2.12 MP
Battery life	15 min
Battery weight	6 g
Output current	2 A
Output voltage	3.7 V
Battery capacity	280 mAh
Operating voltage	12 V
Power source type	Battery, Cigar lighter
Input operation voltage (max)	24 V
Bundled software	MyNextbase Player - Windows 7/ OSX 10.9
Storage temperature (T-T)	-20 - 45 °C
Display diagonal	2.5 \
Cables included	Mini-USB
Quantity per pack	7 pc(s)
Accessories included	Vdc Car Power Cable, Cable Tidy Tool, Click & Go Powered Mounts: Adhesive
Compatible memory cards	MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
Quantity per pallet	720 pc(s)
Master (outer) case width	280 mm
Master (outer) case height	370 mm
Master (outer) case length	330 mm
Master (outer) case weight	9300 g
Customs product code (TARIC)	8525890000
Quantity per master (outer) case	20 pc(s)
Master (outer) case GTIN (EAN/UPC)	5060384255668
Export Control Classification Number (ECCN)	EAR99
Package depth	6.62 mm
Package width	15.3 mm
Package height	12.5 mm
Package weight	403 g

Weight and Dimensions

Depth	46 mm
Width	82 mm
Weight	79 g
