18

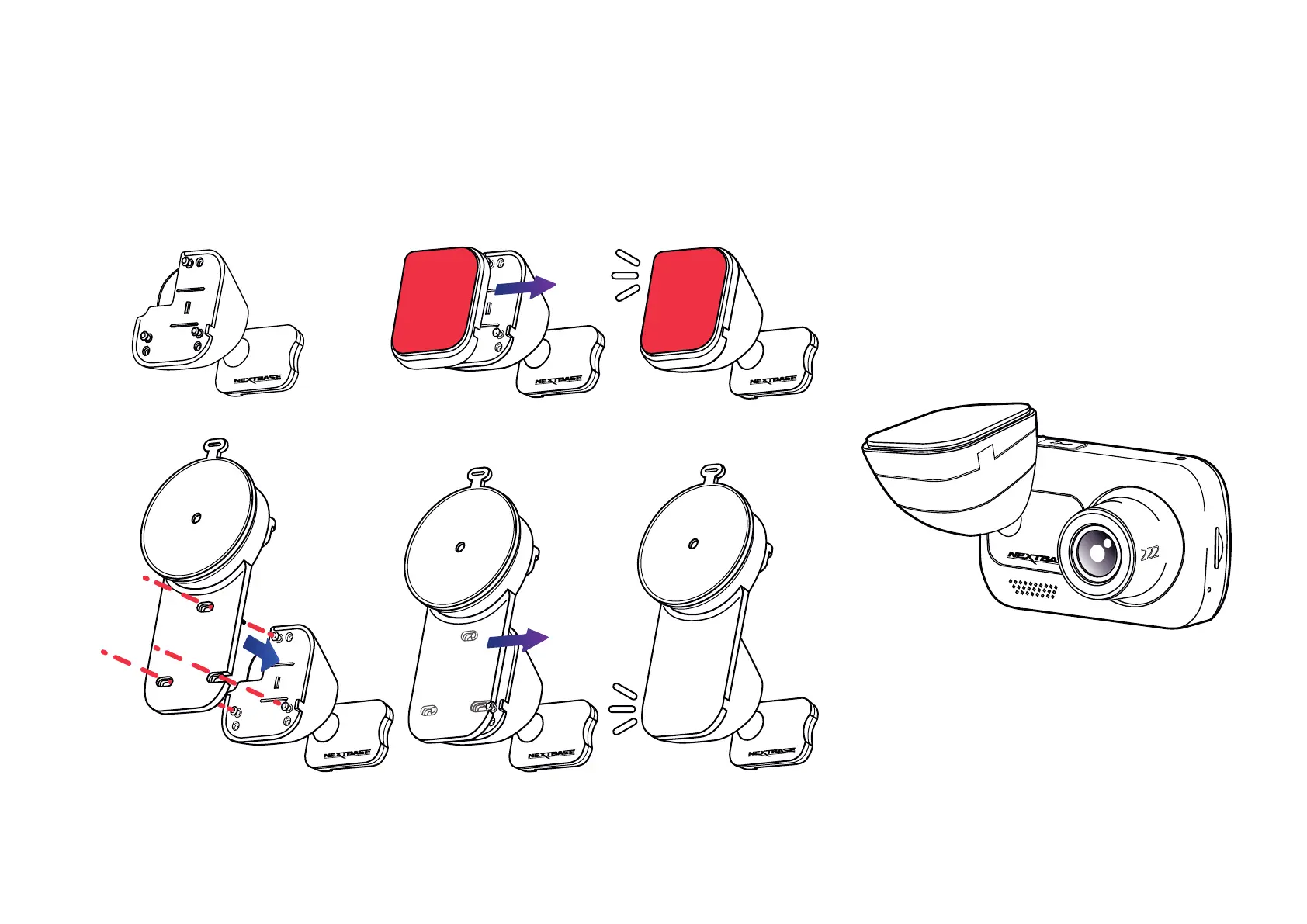

Changing Mount Attachments
Follow the instructions below to switch between mounts attachments; 3M adhesive or suction. To attach
each mount, align the pins on the mount with the holes on the adhesive/suction attachment and slide
firmly to the right until you hear the pieces click into place. To remove the top, simply do the reverse,
slide it to the left until you can lift it off of the mounting pins.
Ensure the windshield is free of grease and dirt before mounting; if necessary, clean with a warm, clean cloth.
Ensure that the Mount and Dash Cam do not obstruct the driver’s view.
Removing Adhesive Residue
If you wish to remove the adhesive mount from your windscreen, use hot soapy water or an alcohol
based solution to get rid of any sticky residue and ensure that your windscreen remains clean and clear.
Leaving residue on the windscreen for an extended period of time will make it harder to remove.
If hot water or an alcohol based solution proves ineffective, it may be necessary to use a small sharp
blade. If this is the case, protect your fingers and use the blade flat against the surface of the glass to
avoid causing scratches.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NextBase NBDVR222 and is the answer not in the manual?

NextBase NBDVR222 Specifications

General IconGeneral
Night visionYes
Product colorBlack
G-shock sensorNo
Country of originChina
Number of cameras1
Maximum frame rate30 fps
Power cable length4 m
Aperture range (F-F)1.6 - 1.6
Main camera resolution1920 x 1080 pixels
Main camera viewing angle140 °
Video compression formatsMP4
Main camera sensor resolution2.12 MP
Battery life15 min
Battery weight6 g
Output current2 A
Output voltage3.7 V
Battery capacity280 mAh
Operating voltage12 V
Power source typeBattery, Cigar lighter
Input operation voltage (max)24 V
Bundled softwareMyNextbase Player - Windows 7/ OSX 10.9
Storage temperature (T-T)-20 - 45 °C
Display diagonal2.5 \
Cables includedMini-USB
Quantity per pack7 pc(s)
Accessories includedVdc Car Power Cable, Cable Tidy Tool, Click & Go Powered Mounts: Adhesive
Compatible memory cardsMicroSDHC, MicroSDXC
Maximum memory card size128 GB
Quantity per pallet720 pc(s)
Master (outer) case width280 mm
Master (outer) case height370 mm
Master (outer) case length330 mm
Master (outer) case weight9300 g
Customs product code (TARIC)8525890000
Quantity per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)5060384255668
Export Control Classification Number (ECCN)EAR99
Package depth6.62 mm
Package width15.3 mm
Package height12.5 mm
Package weight403 g
Weight and Dimensions IconWeight and Dimensions
Depth46 mm
Width82 mm
Weight79 g
