DESIGNING AND INSTALLING A C-6 SYSTEM
System Design
It is always good to get as much information from the client/user/homeowner as possible when
designing a multi-source, multi-zone system. What sources are they going to use? How many
zones will be included in the system? Some zones may only require speakers for background
music, while other zones may include a TV or video display for movies, sports and news. It’s all
part of the same system and planning ahead will insure that the system does what the user
requires…or asks for later.
Head End Considerations
When planning a whole-house system, whether new or existing construction, always try to find
the most convenient location for the system components. Try to find a central location to pull the
wire runs with adequate space for the components and room to work on them. Certainly not the
least important consideration should be convenience for the user. Remember: once the system is
installed, the user is still going to need to load discs or tapes or program material…easy access is
essential. For service or upgrading components, an equipment closet with rear access to the
components is ideal but not always possible. Consider a pull-out rack mount system if rear
access is not possible. Leave plenty of extra wire to be able to easily remove components if they
should need service or replacing.
Zone Considerations
Think the system through in terms of how the system will be used. What is the layout of each
room? Where will the speakers go? Where will the keypads go? Are there going to be any other
system components in the remote zones such as TV’s? Be sure to pull all required cabling and
observe all local building and electrical codes.
INSTALLATION
Controller Location
The C-6 should be located at the main termination of all wire and cable runs. The source
components (CD, DVD, Satellite Receiver, VCR, etc) should also be installed at this location.
The C-6 and source components can be placed on shelves in a wall unit in a media room, or rack
mounted in a standard 19” rack mount system. Always provide convenient access for loading
CDs and DVDs. Easy access for service should also be a consideration.
Ventilation
The C-6 must be placed in a location that allows adequate airflow. Leave at least two inches
above and below the unit to allow air to flow freely through the vent holes on the top, bottom and
sides. Blocking the vent holes can inhibit airflow and possibly damage the unit. Removing the feet
will inhibit airflow and is not recommended. Additionally, care should be taken in to leave plenty of
extra room for wires and cables. Extra wire cramped in around the unit can block side vents and
inhibit proper airflow.
Rack Mounting

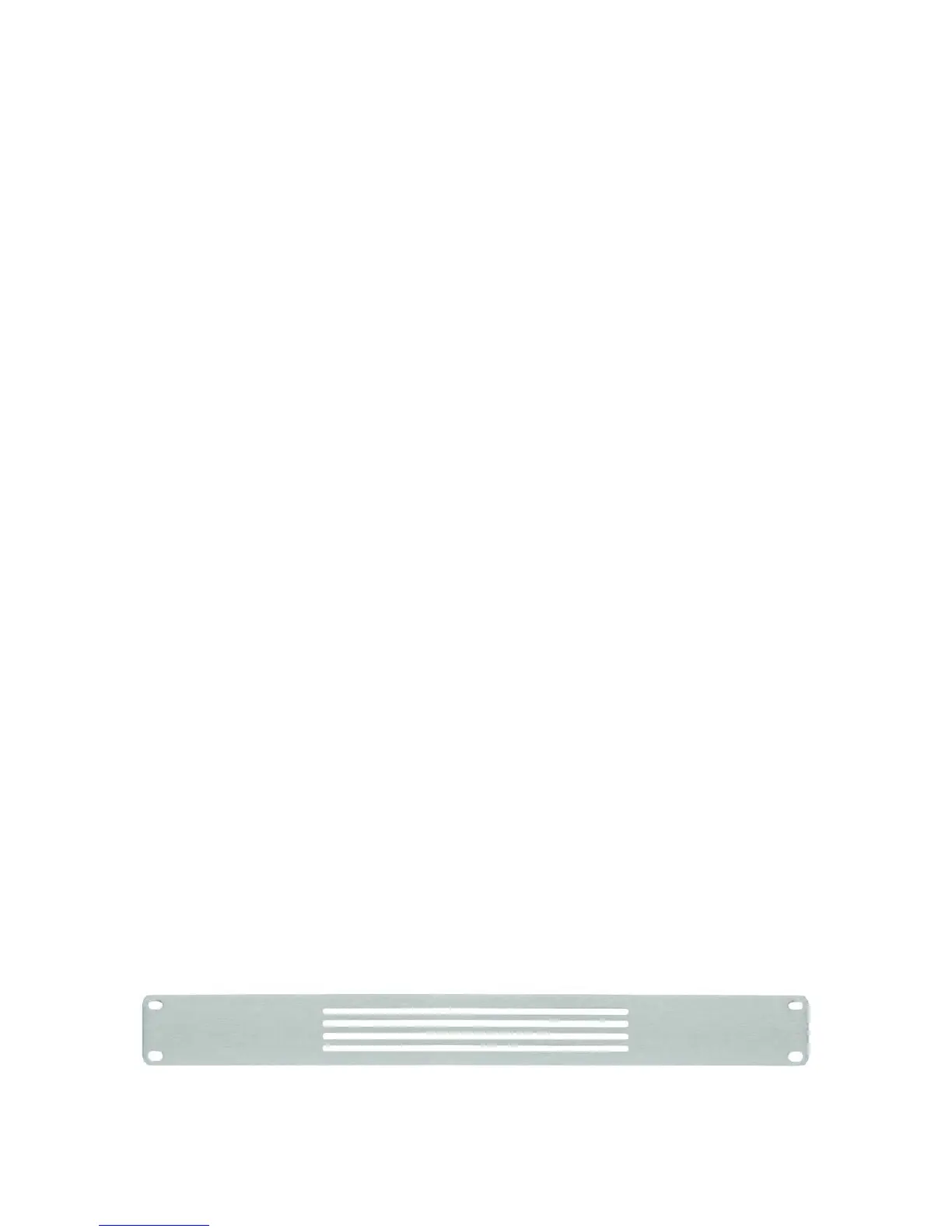

Figure 9. VP-1 Vent Panel
