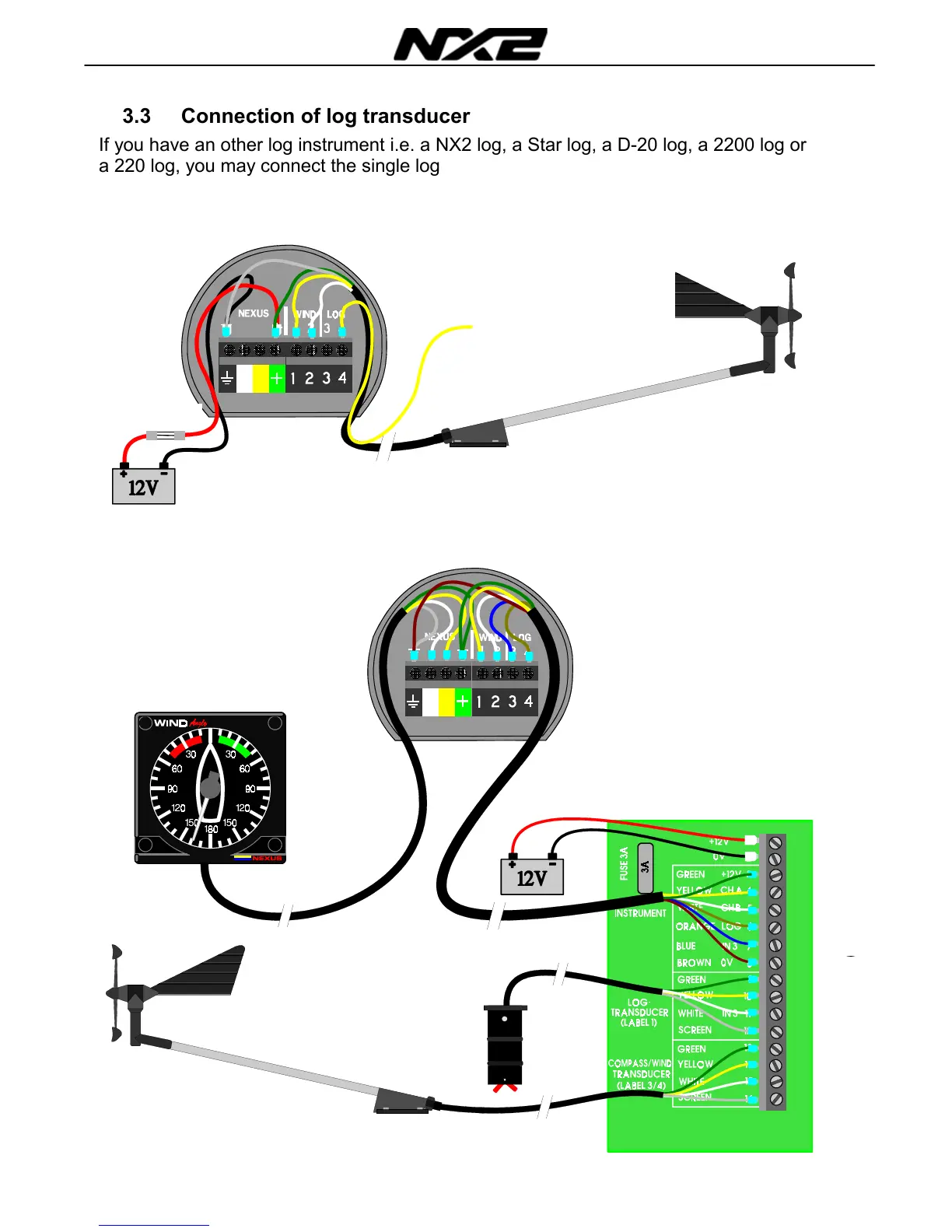

3.3 Connection of log transducer
If you have an other log instrument i.e. a NX2 log, a Star log, a D-20 log, a 2200 log or
a 220 log, you may connect the single log pulse wire from that instrument to the Wind
Data instrument terminal 4.
If you don’t have a log instrument, but want to install a log transducer, use the
connection box (Art. no: 21453 ).
From log transducer,
NEXUS, Star, D-20,
2200 or 220
3A Fuse
