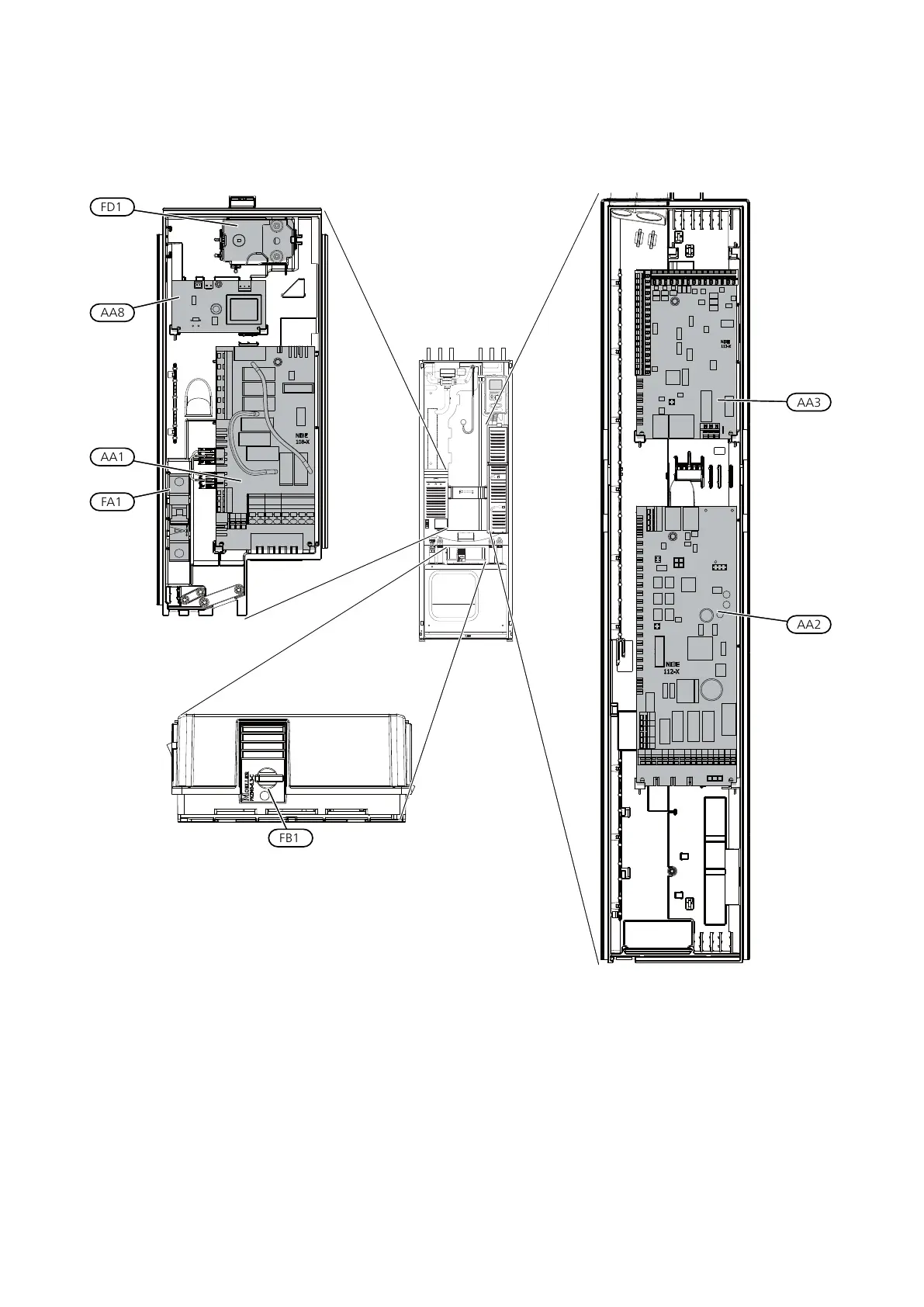

Distribution boxes

F1245

AA1

FD1

AA8

FA1

FB1

AA3

AA2

Electrical components

Immersion heater cardAA1

Base cardAA2

Input circuit boardAA3

Electrical anode board*AA8

Miniature circuit-breakerFA1

Motor cut-out**FB1

Temperature limiter/Emergency mode thermostatFD1

* Only heat pump with enamelled vessel.

** 1x230 V, 3x230 V 6-10 kW, 3x400V 5 kW has auxiliary switch

for motor cut-out.

Designations in component locations according to

standard IEC 81346-1 and 81346-2.
