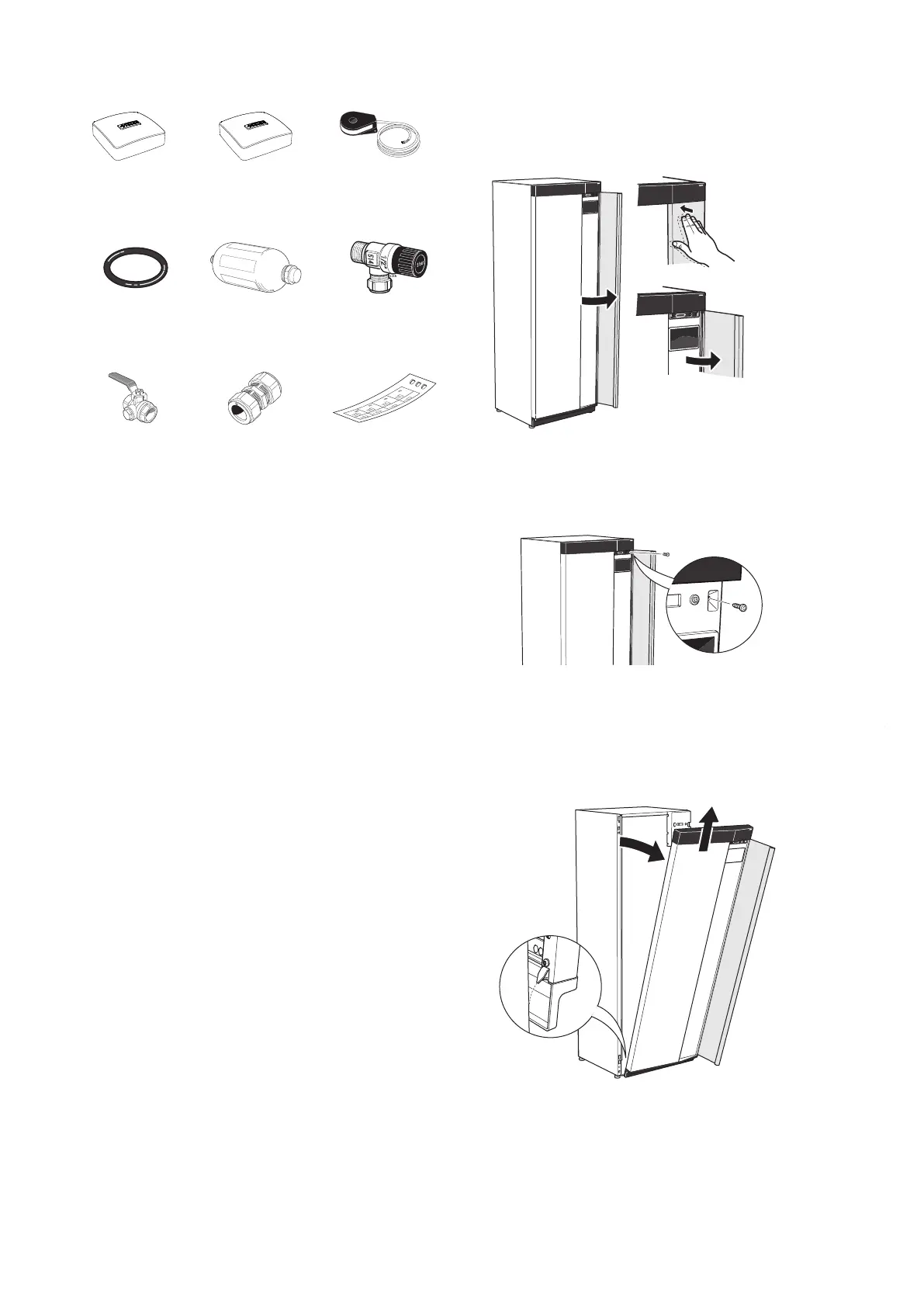

Supplied components
Current sensor
1
3 x
Room
sensor(BT50)
1 x
Outdoor temperat-
ure sensor (BT1)
1 x
Safety valve (FL3)
0.3 MPa (3 bar)
1
1 x
Level vessel
(CM2)
1
1 x
O-rings
8 x
Label for external
control voltage for
the control system
1 x
Compression ring
couplings
8 kW
2 x (ø28 x G25)
2 x (ø22 x G20)
13 kW
4 x (ø28 x G25)
18 kW
4 x (ø28 x G25)
Filterball (QZ2)
8 kW
1 x G1
1 x G3/4
13 kW
1 x G1
1 x G1 1/4
18 kW
1 x G1
1 x G1 1/4
1
Not Italy and the DACH countries.
LOCATION
The kit of supplied items is placed in packaging on top of
the heat pump.
Handling panels
OPEN FRONT HATCH
Press the hatch's top left corner to open it.
REMOVE THE FRONT
1. Remove the screw in the hole next to the on/off button
(SF1).
2. Pull the panel's top edge towards you and lift diagonally
upwards to remove it from the frame.
7Chapter 2 | Delivery and handlingNIBE S1256
