Nibe S1256 - Removing Insulation

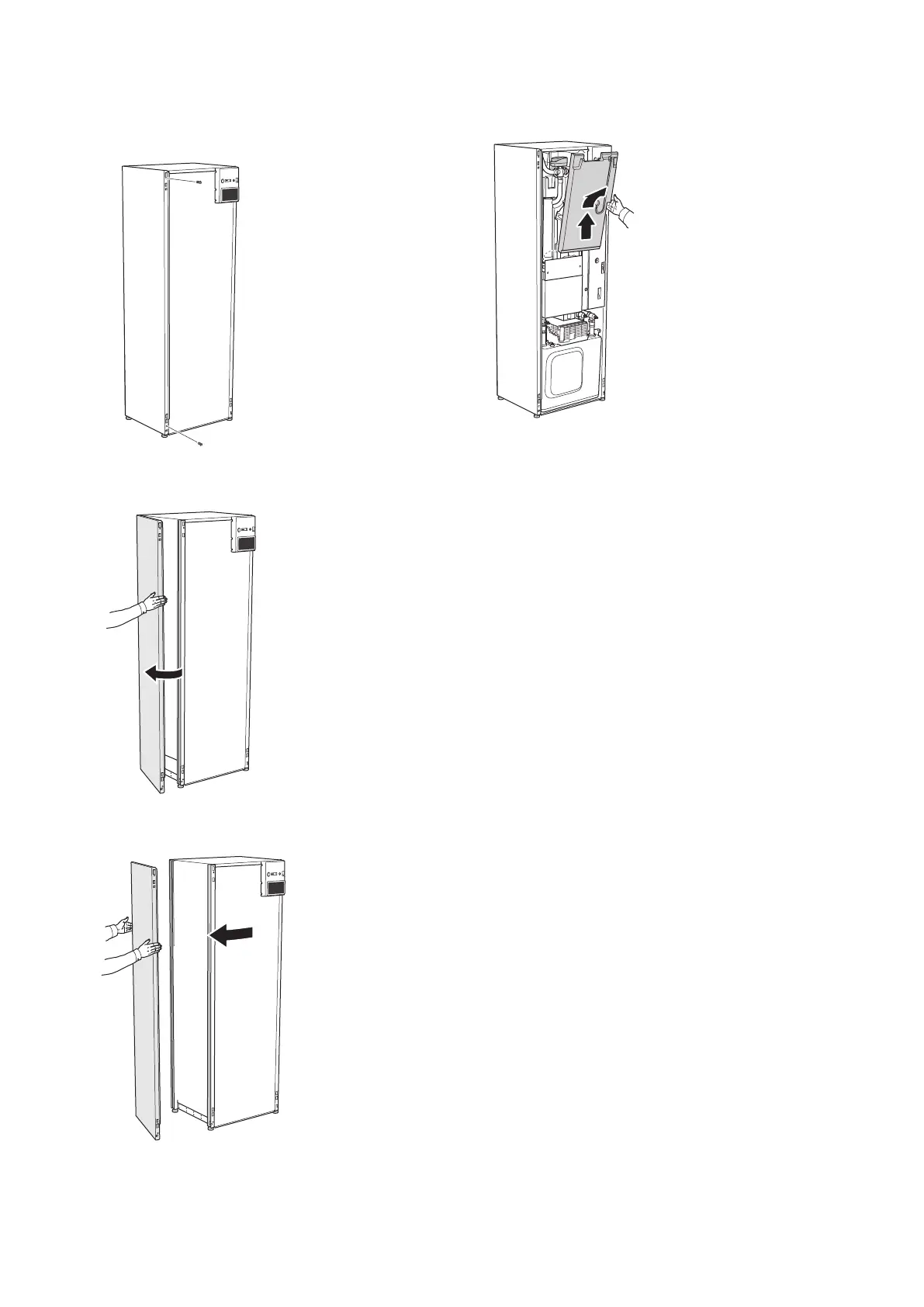

REMOVE SIDE PANEL
The side panels can be removed to facilitate the installation.
1. Remove the screws from the upper and lower edges.
U
N
2. Twist the panel slightly outwards.
UN
3. Move the panel outwards and backwards.
UN
4. Assembly takes place in the reverse order.
Removing insulation
The insulation can be removed to make installation easier.
U
N
9Chapter 2 | Delivery and handlingNIBE S1256
