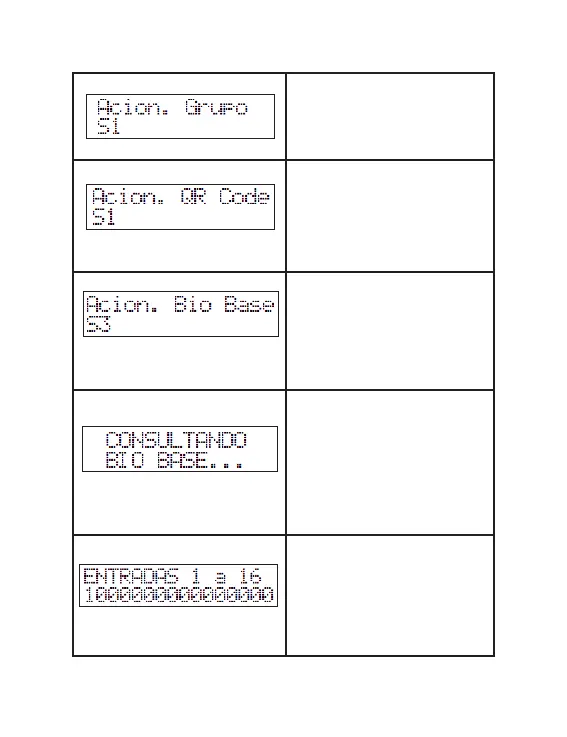

Activation of the relays carried out
by the MG 3000 Module (when
option “Hour Groups” is enabled)
Line 1: Activ. Group
Line 2: Relay Triggered (S1 to S8)
Activation of the relays carried out
by the MG 3000 Module (when
valid access performed by the QR
Code reader)
Line 1: Action. QR Code
Line 2: Relay activated (S1, S2,
S5 or S6)
Activation of the relays carried out
by the MG 3000 Module (when Base
Biometrics authorizes access)
Line 1: Activ. Base Bio
Line 2: Relay activated (S1 to S8)
(REC CTWB and REC TX+CTWB
mode only)
Digital indication not found on the
biometric scanner of the RS-485 chan-
nel. The MG 3000 Module (with Base
Biometrics) will be consulted.
Line 1: CONSULTING
Line 2: BASE BIO ...
(REC CTWB and REC TX+CTWB
modes only)
Change of state of Digital Inputs
Line 1: INPUTS 1 to 16
Line 2: Digital input changed (0 to 1,
when input congured as “Normally
Open” or “Button”; 1 to 0, when input
congured as “Normally Closed”)
