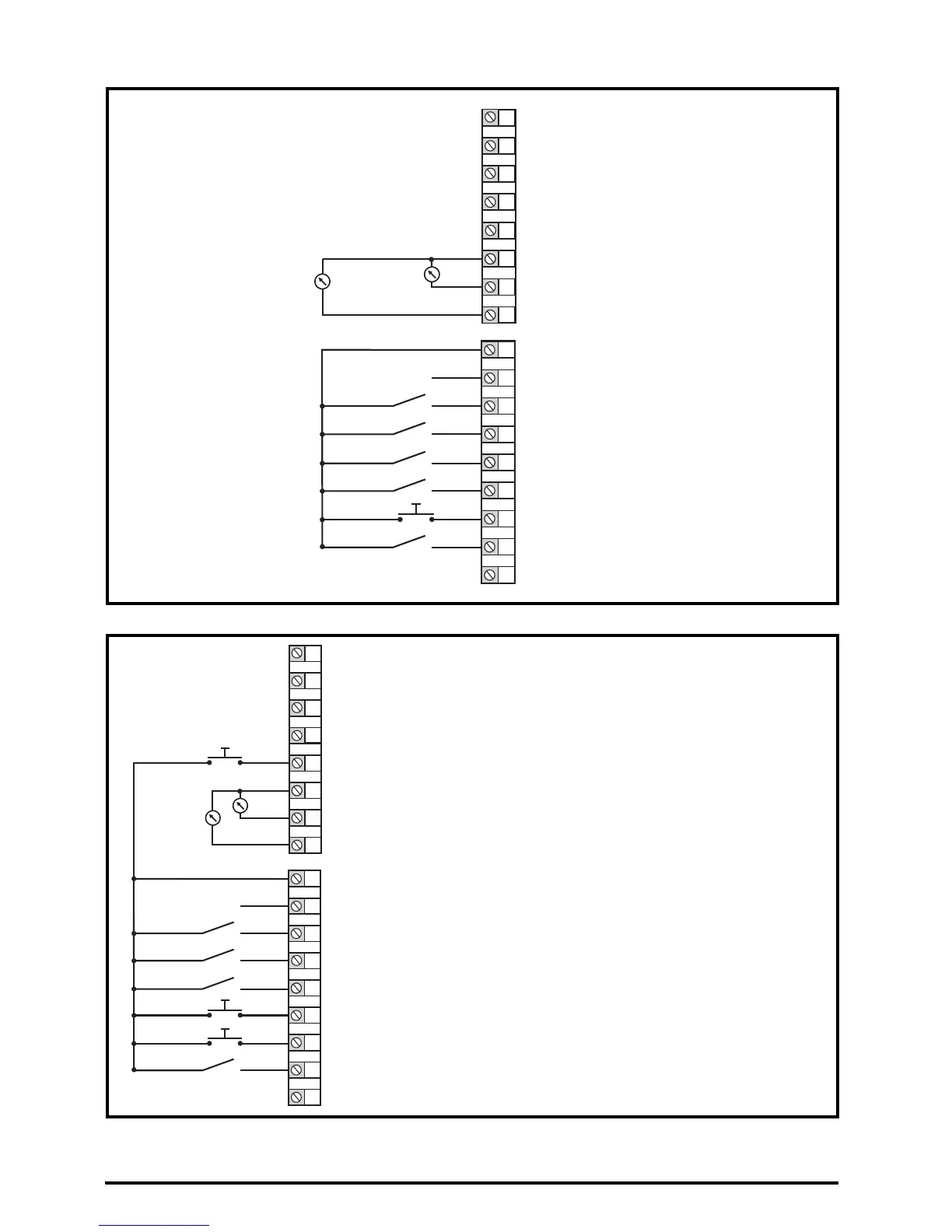

Figure 4-7 Pr 00.005 = Keypad Ref
Figure 4-8 Pr 00.005 = Electronic Pot
* Refer to the Control User Guide.
1
2
3
4
0V
Voltage speed reference
input (AI 1+)
AI 1-
5
6
7
8
0V
Analog output 1
(motor frequency)
+ 10 V output
Analog output 2
(motor active current)
9
10
11
Digital output
(zero frequency)
Unassigned
12
13
14
15
16
17
Analog input 1/
input 2 select
Run forward
+ 24 V output
Jog Forward
Unassigned
+ 24 V output
Run reverse
Voltage speed reference
input (AI 2)
1
2
3
4
0V
Voltage speed reference
input (AI 1+)
AI 1-
5
6
7
8
0V
Analog output 1
(motor frequency)
+ 10 V output
Analog output 2
(motor active current)
9
10
11
Digital output
(zero frequency)
Unassigned
12
13
14
15
16
17
UP
Run forward
+ 24 V output
Jog Forward
Unassigned
+ 24 V output
Run reverse
DOWN
When Pr 00.005 is set to Electronic Pot, the
following parameters may need to be
adjusted:
• Motorized pot up/down rate (s/100 %)*
• Motorized pot bipolar select (0 =
unipolar, 1 = bipolar)*
• Motorized pot mode: 0 = zero at power-
up, 1 = last value at power-up, 2 = zero
at power-up and only change when
drive is running, 3 = last value at power-
up and only change when drive is
running, 4 = zero at power-up and drive
disabled, only change when drive is
running.
