Nikon Coolpix S1 Repair Manual

VAA35001-R.3666.A
- A11 ･ S1 -

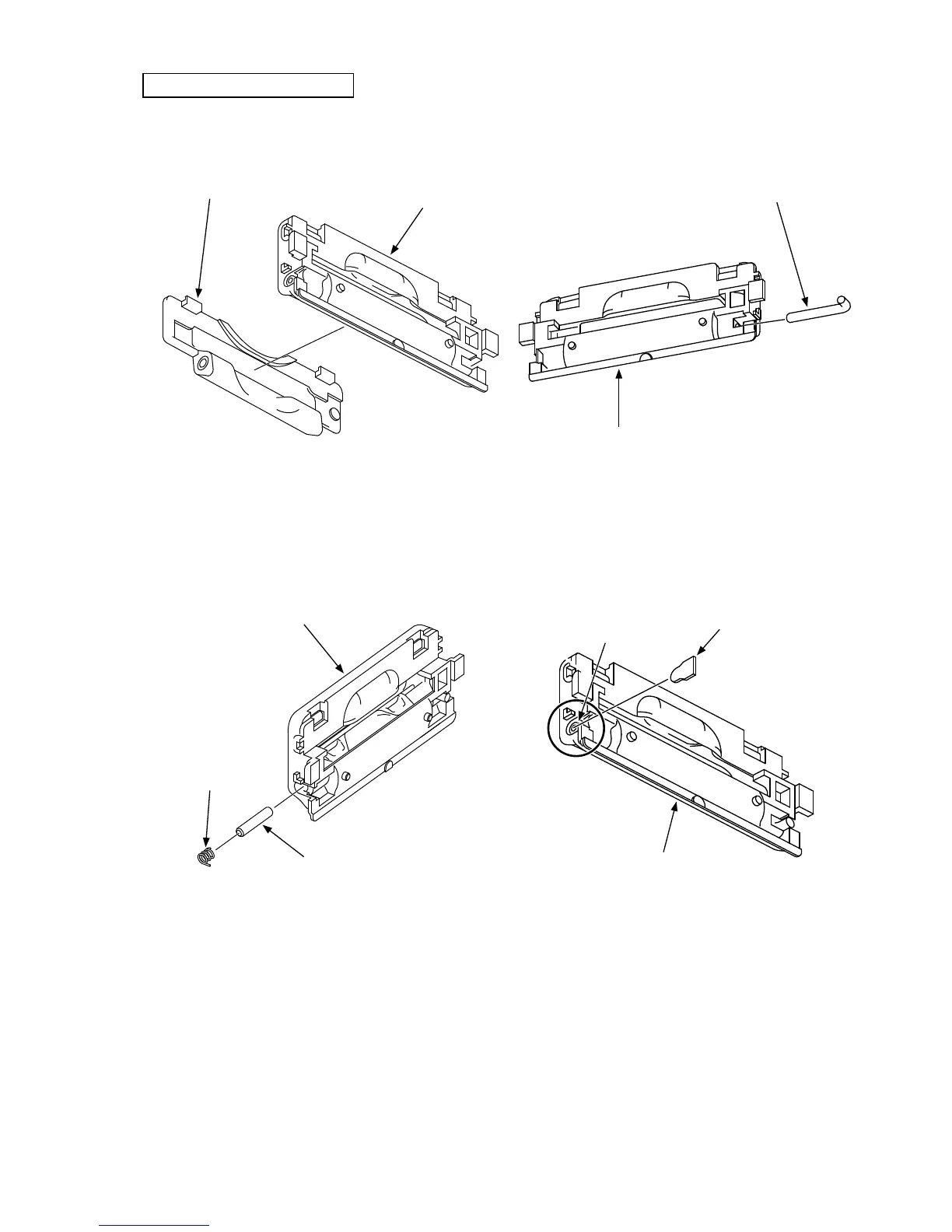

ASSEMBLY OF CARD HOLDER
・ Set the SD card cover [#017] onto the card holder
[#014].
・ Set the card shaft [#015].
・ Assemble the shaft [#012] and the spring [#011]. ・ Set the plate [#013].
※ Fix the plate [#013] on the groove of the card holder
[#014].
SD card cover [#017]
Card holder [#014]
Card holder [#014]
Card shaft [#015]
Shaft [#012]
Spring [#011]
Card holder [#014]
Plate [#013]
Card holder [#014]
Groove

Nikon Coolpix S1 Specifications

General

Resolution	5.1 megapixels
Optical Zoom	3x
LCD Screen Size	2.5 inches
Image Sensor	1/2.5-inch CCD
ISO Sensitivity	Auto, 50, 100, 200, 400
Weight	118g
Digital Zoom	4x
Storage Media	SD card
Type	Compact
Focal Length	35-105 mm (35mm equivalent)
Battery	EN-EL8 Lithium-ion battery
Aperture	f/3.0 - f/5.4
LCD Monitor	2.5-inch TFT LCD
Dimensions	89.9 x 57.5 x 19.7 mm (3.5 x 2.3 x 0.8 in)
Shutter Speed	4 sec to 1/350 sec
