Nikon Coolpix S1 Repair Manual

VAA35001-R.3666.A
- A21 ･ S1 -

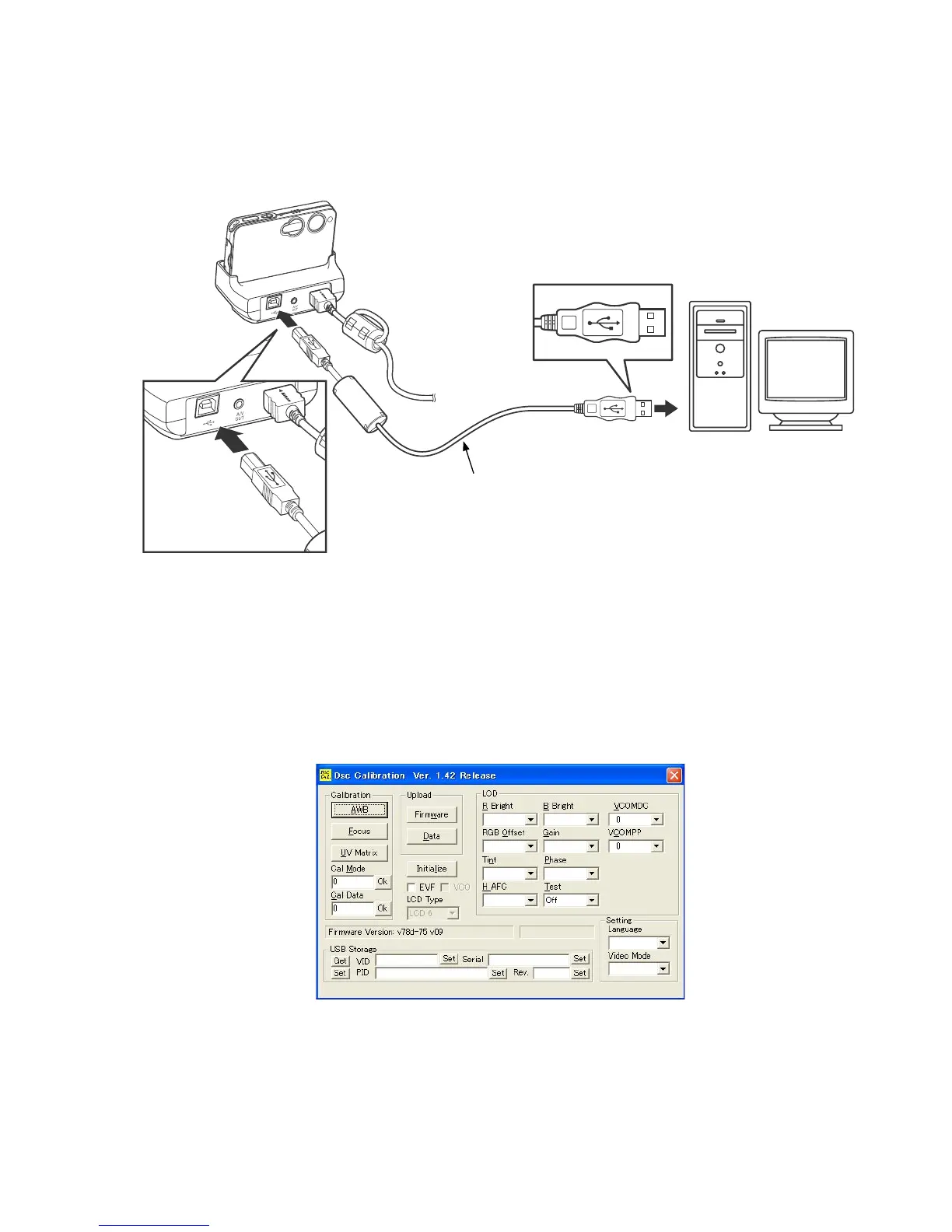

10. Calibration software
・Turn on the camera.
・When the calibration software starts, the following is displayed on the PC monitor.
Supply the power from the
AC adapter EH-63.
USB Cable（UC-E10）
To the USB port
9. Connecting the camera to the computer
1) Connect the camera to the cradle.
2) Insert the camera connector of the USB cable into the USB port connector of the cradle.
3) Connect the cable to the USB port on PC.

Nikon Coolpix S1 Specifications

General

Resolution	5.1 megapixels
Optical Zoom	3x
LCD Screen Size	2.5 inches
Image Sensor	1/2.5-inch CCD
ISO Sensitivity	Auto, 50, 100, 200, 400
Weight	118g
Digital Zoom	4x
Storage Media	SD card
Type	Compact
Focal Length	35-105 mm (35mm equivalent)
Battery	EN-EL8 Lithium-ion battery
Aperture	f/3.0 - f/5.4
LCD Monitor	2.5-inch TFT LCD
Dimensions	89.9 x 57.5 x 19.7 mm (3.5 x 2.3 x 0.8 in)
Shutter Speed	4 sec to 1/350 sec
