Nikon Coolpix S1 Repair Manual

VAA35001-R.3666.A
- A20 ･ S1 -

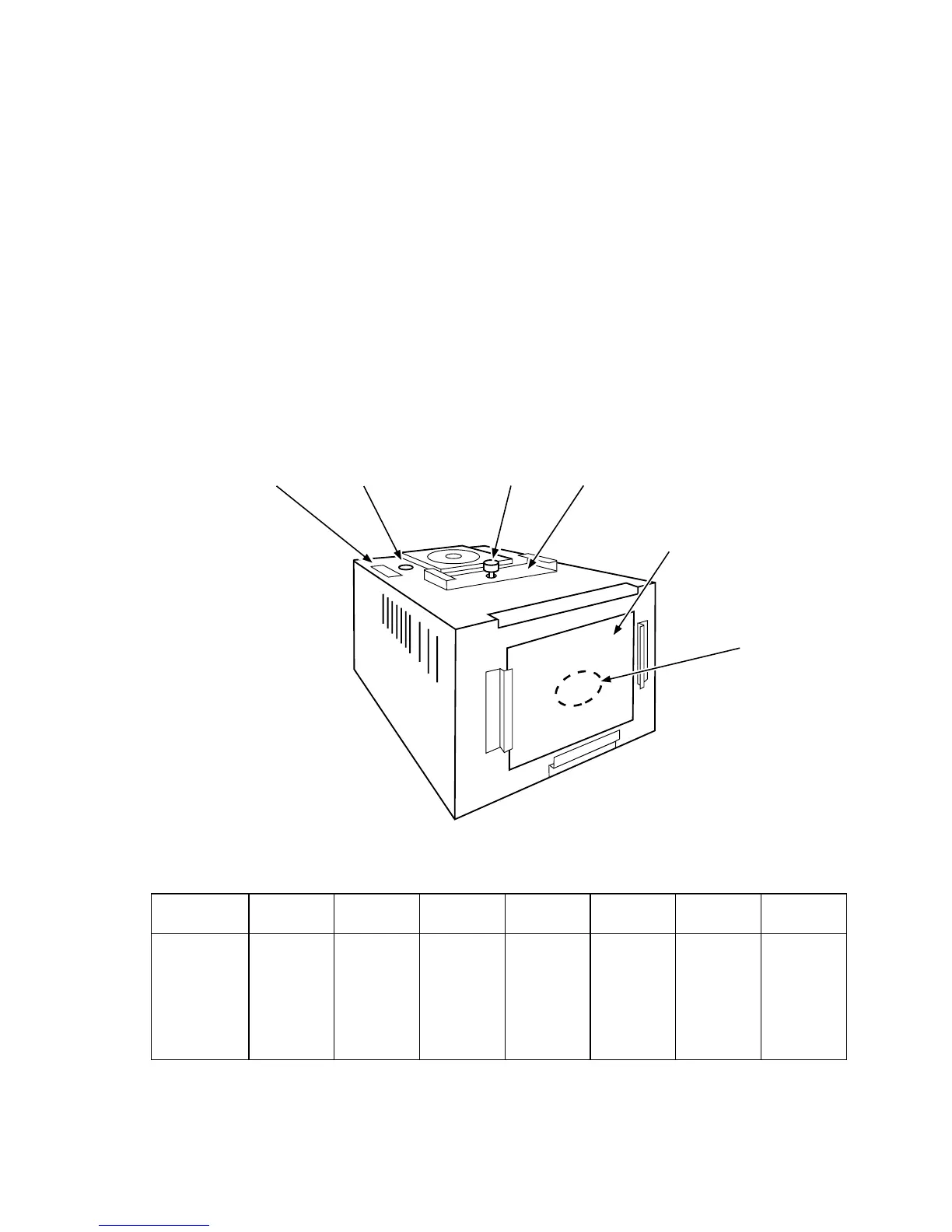

7. Pattern box
Before using the pattern box, turn its power on to carry out "Aging" approx. 30 minutes: the color temperature should
be adjusted to 3100 ± 20K by the color meter, and the luminance should be adjusted to 900 ± 20cd/m
2
by the
luminance meter. When the pattern box is used and for a while even after the power is turned off, the lamp and its
surroundings are subject to high temperatures, so handle them with care.
・ Procedure for calibrating Pattern Box
Note: Be sure to perform "aging".
1) Measure the measuring point (center of diffusion plate) with the Color Meter (J63081).
2) Adjust the pattern box so that the color temperature should be 3100 ± 20K by using "VR for adjustment of the color
temperature".
3) Measure the center of the diffusion plate with the Luminance Meter BM-3000 (J63068).
4) Adjust the pattern box so that the luminance should be 900 ± 20cd/m
2
by using "Knob for luminance adjustment".
5) Repeat from 1) to 4) so that the color temperature should be 3100 ± 20k and luminance should be 900 ± 20cd/m
2
○ Adjustment is necessary. × Adjustment is not necessary.
Lens Adj. AWB
CCD white
dot
CCD black
dot/white dot
USB
Firmware
updates
Initial image
data
Lens Unit
CP-1 PCB
TB-1 PCB
Flash unit
LCD
○
○
×
×
×
○
○
×
×
×
○
○
×
×
×
○
○
×
×
×
×
○
×
×
×
×
○
×
×
×
×
○
×
×
×
Power switch
VR for adjustment of
the color temperature
Knob for luminance
adjustment
Iris unit
Diffusion plate
Area to be measured
8. Adjustments required when parts are replaced

Nikon Coolpix S1 Specifications

General

Resolution	5.1 megapixels
Optical Zoom	3x
LCD Screen Size	2.5 inches
Image Sensor	1/2.5-inch CCD
ISO Sensitivity	Auto, 50, 100, 200, 400
Weight	118g
Digital Zoom	4x
Storage Media	SD card
Type	Compact
Focal Length	35-105 mm (35mm equivalent)
Battery	EN-EL8 Lithium-ion battery
Aperture	f/3.0 - f/5.4
LCD Monitor	2.5-inch TFT LCD
Dimensions	89.9 x 57.5 x 19.7 mm (3.5 x 2.3 x 0.8 in)
Shutter Speed	4 sec to 1/350 sec
