Nikon Coolpix S1 Repair Manual

VAA35001-R.3666.A
- D13 ･ S1 -

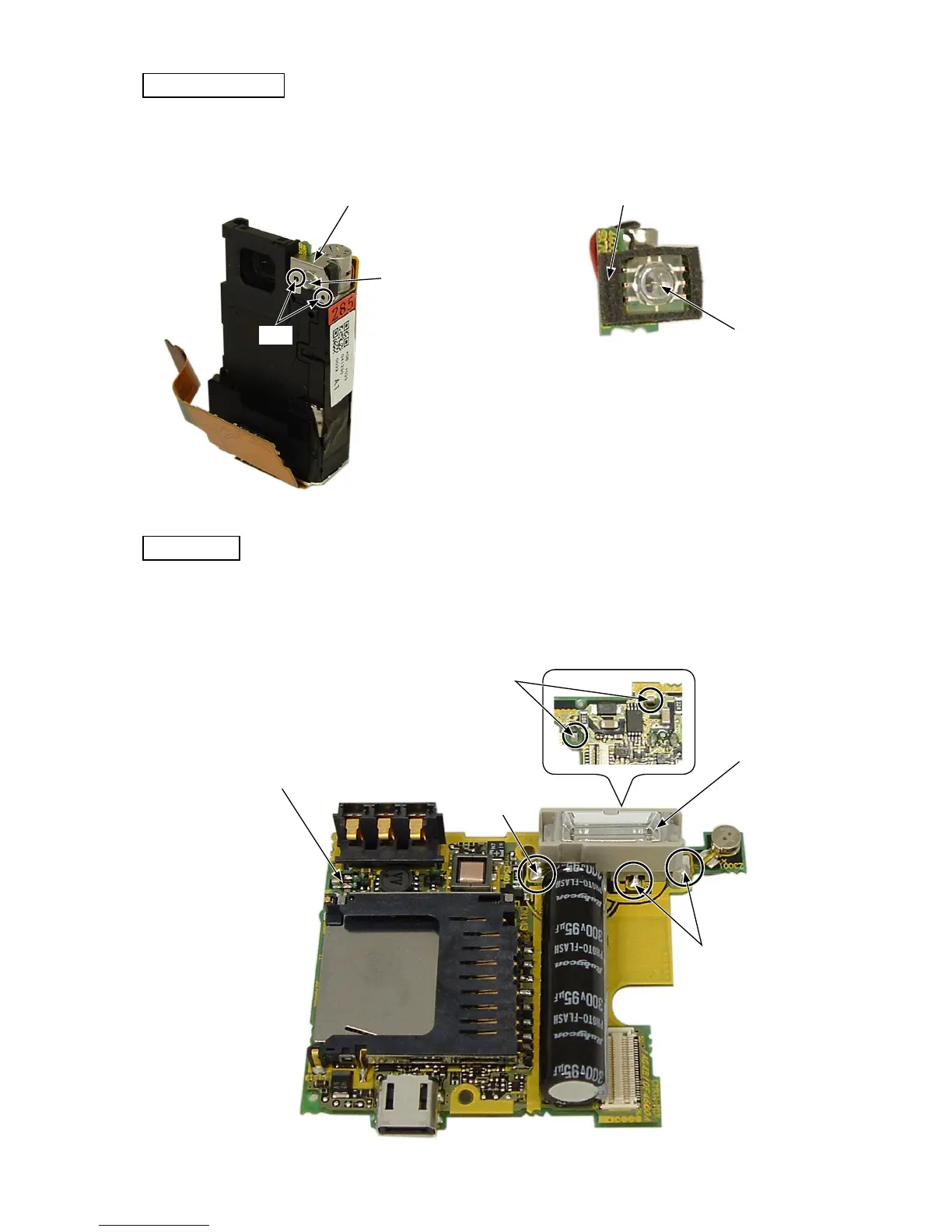

LED PCB UNIT TB-1
・ Remove the spring [#214] by releasing it from bosses.
・ Remove the LED PCB unit TB-1 [#213].
FLASH UNIT
・ Perform unsoldering at 3 places.
・ Remove the ash unit [#227] from the main PCB unit CP-1 [#225].
※ There are hooks on the rear of the PCB.
Spring [#214]
LED PCB unit TB-1 [#213]
Boss
・ Remove the spacer [#212].
LED PCB unit TB-1 [#213]
Spacer [#212]
Flash unit [#227]
Solder
Solder
Main PCB unit CP-1 [#225]
There are hooks on the rear of the PCB.
Hook

Nikon Coolpix S1 Specifications

General

Resolution	5.1 megapixels
Optical Zoom	3x
LCD Screen Size	2.5 inches
Image Sensor	1/2.5-inch CCD
ISO Sensitivity	Auto, 50, 100, 200, 400
Weight	118g
Digital Zoom	4x
Storage Media	SD card
Type	Compact
Focal Length	35-105 mm (35mm equivalent)
Battery	EN-EL8 Lithium-ion battery
Aperture	f/3.0 - f/5.4
LCD Monitor	2.5-inch TFT LCD
Dimensions	89.9 x 57.5 x 19.7 mm (3.5 x 2.3 x 0.8 in)
Shutter Speed	4 sec to 1/350 sec
