VAA35001-R.3666.A
- A1・ S1 -

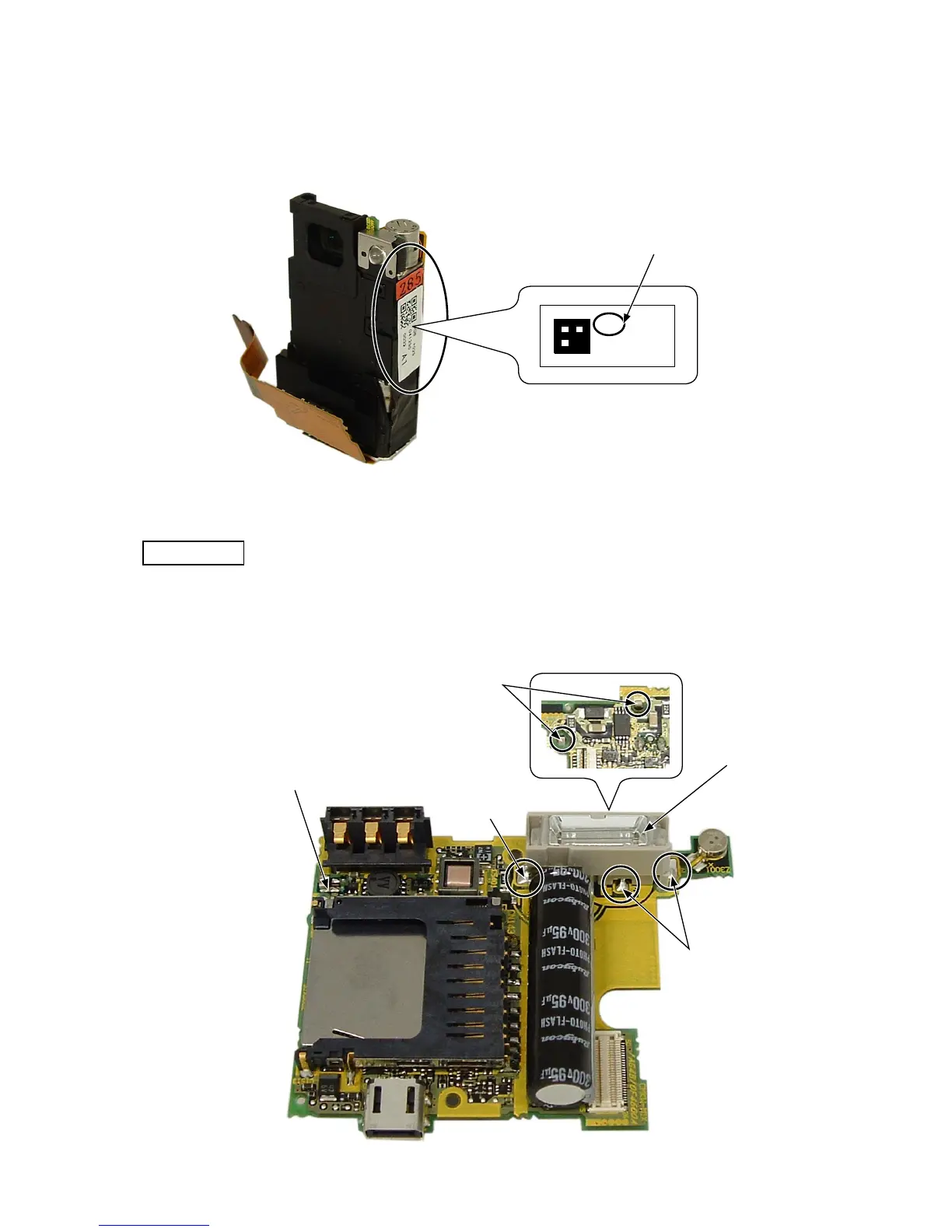

ASSEMBLY
FLASH UNIT
Hook the ash unit [#227] to the main PCB unit CP-1 [#225] to assemble them.
Solder at 3 places.
Note: Before replacing the lens unit or the main PCB unit CP-1 [#225] with a new one, be sure to take a note of the
value, because it will be used for adjusting the lens after the assembly.
+36 +250
040915
0001
A1
Be sure to take a note of this value.
Flash unit [#227]
Solder
Solder
Main PCB unit CP-1 [#225]
Hooks on the rear of the PCB.
Hook
