Nikon Coolpix S1 Repair Manual

VAA35001-R.3666.A
- A2･ S1 -
LED PCB UNIT TB-1

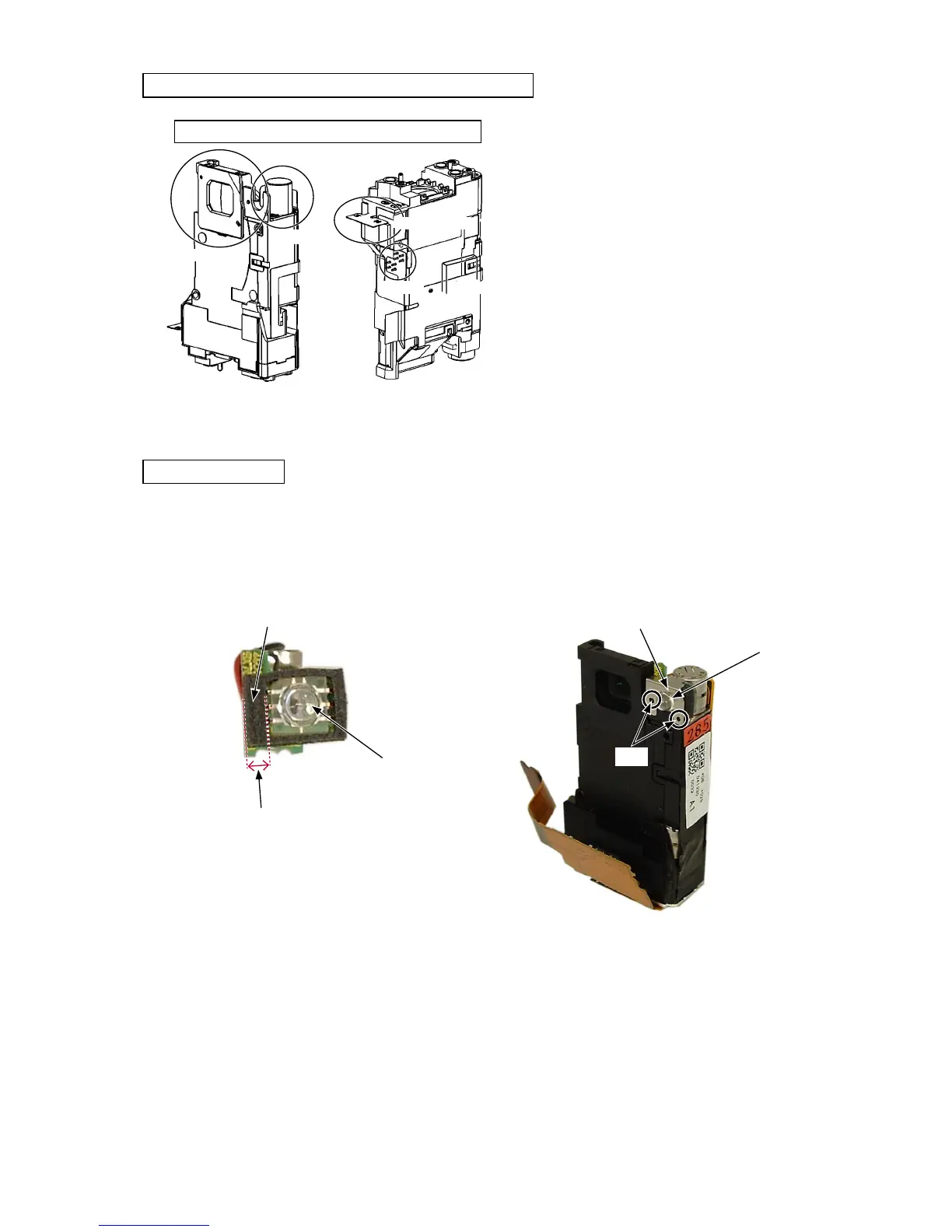

・ Place the spacer [#212] as shown below and set it onto
the LED PCB unit TB-1 [#213].
・ Set the LED PCB unit TB-1 [#213].
・ Set the spring [#214].
PLACE WHICH MUST NOT BE TOUCHED IN LENS UNIT
Spring [#214]
LED PCB unit TB-1 [#213]
Boss
LED PCB unit TB-1 [#213]
Spacer [#212]
The wider surface on the left.
G1～プリズム部
モータ部
シャッタコネクタ部
ＰＩ部
背面シート
＜LENSの触れてはいけない箇所＞
PLACE WHICH MUST NOT BE TOUCHED IN LENS UNIT
G1 ~ Prism unit
Shutter connector unit
Motor unit
PI unit Rear sheet
