Nikon Coolpix S1 Repair Manual

VAA35001-R.3666.A
- D12 ･ S1 -

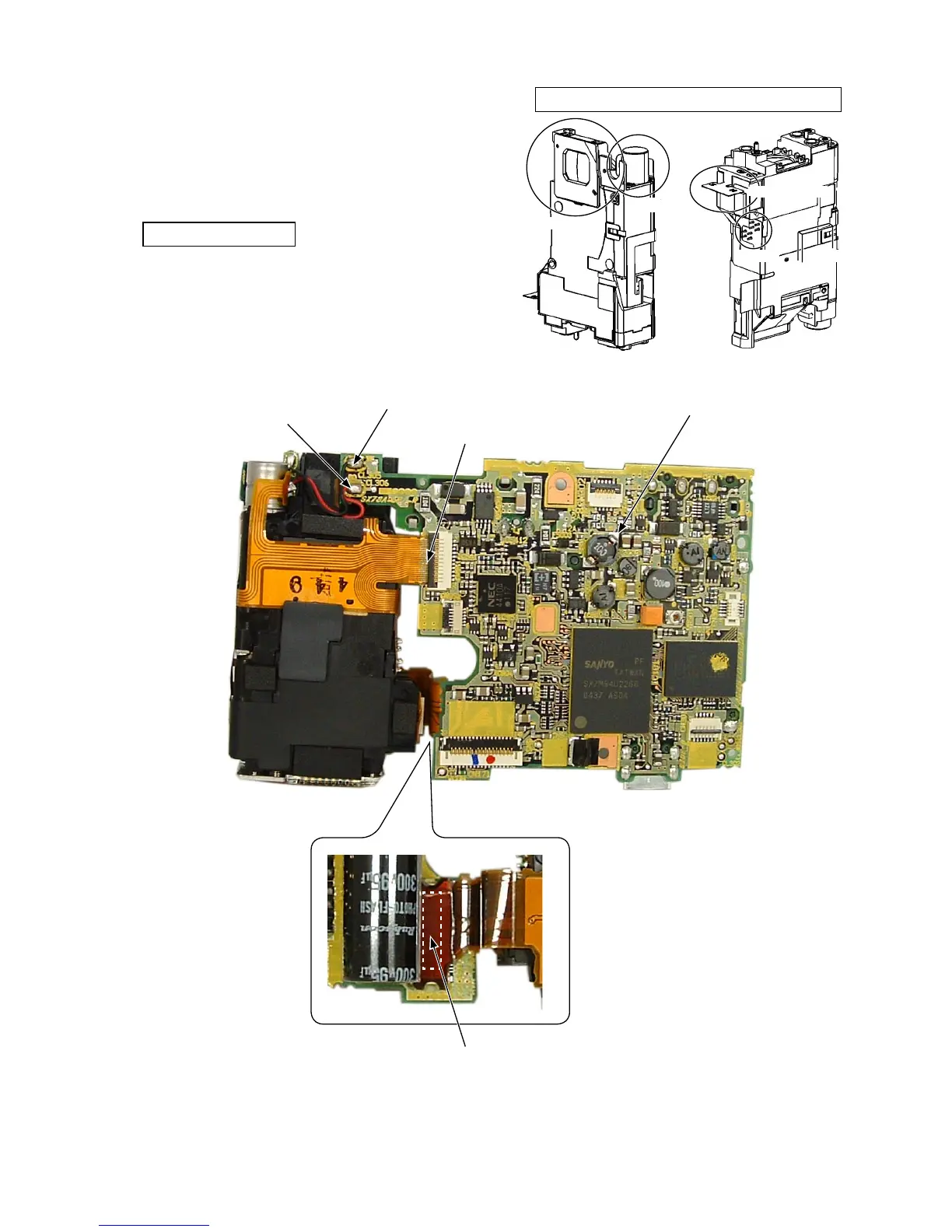

MAIN PCB UNIT CP-1
・ Remove the FPC.
・ Remove the connector.
・ Unsolder the lead wires [red] and [black].
・ The main PCB unit CP-1 [#225] can be removed.
FPC
Lead wire [black]
Lead wire [red]
Main PCB unit CP-1 [#225]
Connector
G1～プリズム部
モータ部
シャッタコネクタ部
ＰＩ部
背面シート
＜LENSの触れてはいけない箇所＞
G1 ~ Prism unit
Shutter connector unit
Motor unit
PI unit Rear sheet
レンズユニットの触れてはいけない箇所
PLACE WHICH MUST NOT BE TOUCHED IN LENS UNIT
