Nikon Coolpix S1 Repair Manual

VAA35001-R.3666.A
- D11 ･ S1 -

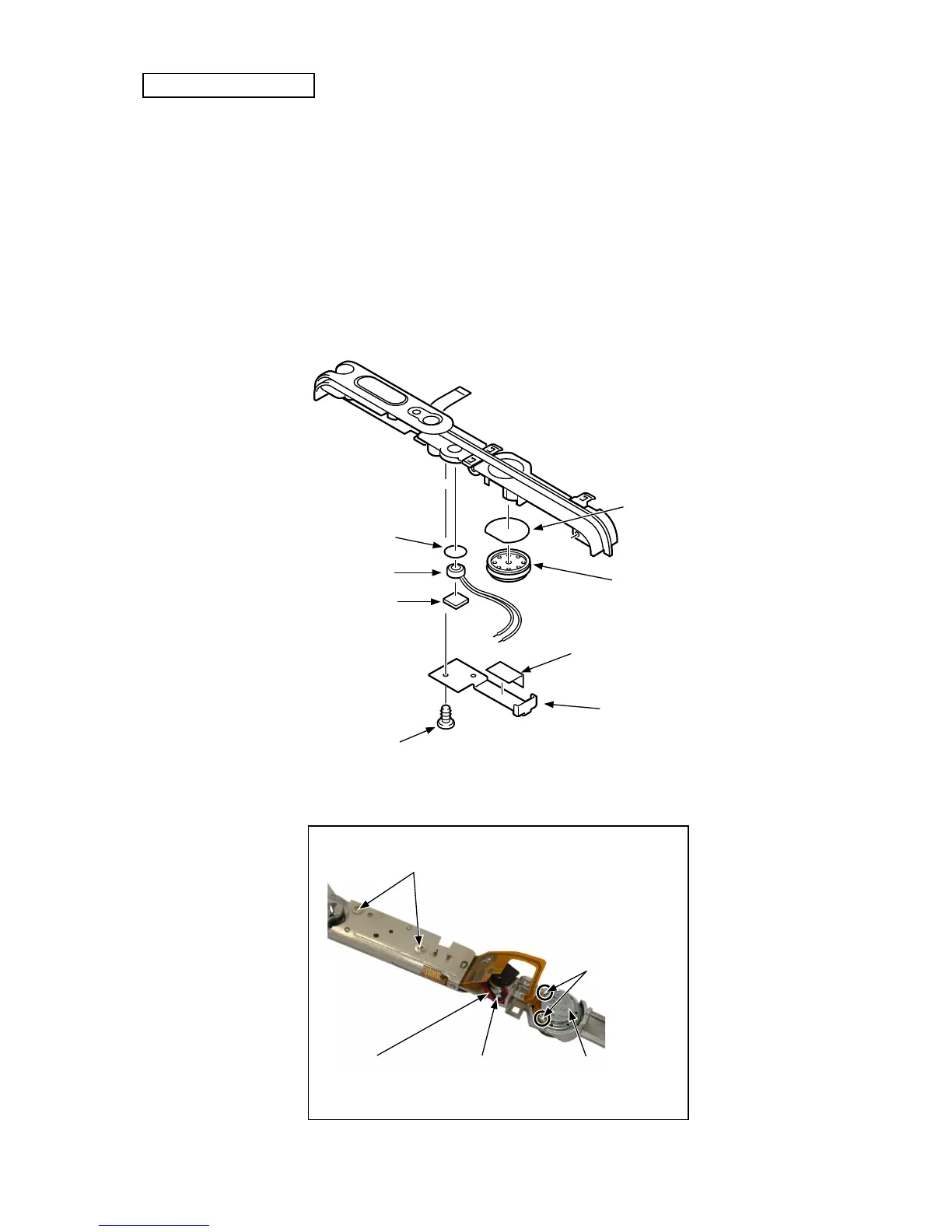

（Fig.1）
・ Remove the screw [#104].
・ Remove the speaker holder [#216].
・ Take off the spacer [#217] from the speaker holder [#216].
・ Take off the spacer [#220] and remove the microphone [#221].
・ Take off the spacer [#222].
・ Unsolder the lead wires [red] and [black]. (Fig. 1)
・ Unsolder and remove the speaker [#218]. (Fig. 1)
・ Take off the spacer [#219].
SPEAKER/MICROPHONE
Screw [#104]
Speaker holder [#216]
Spacer [#217]
Spacer [#220]
Microphone [#221]
Spacer [#222]
Spacer [#219]
Speaker [#218]
Lead wire [black]Lead wire [red]
Speaker [#218]
Solder
Remove 2 screws and, while the FPC is being raised,
remove the solder.

Nikon Coolpix S1 Specifications

General

Resolution	5.1 megapixels
Optical Zoom	3x
LCD Screen Size	2.5 inches
Image Sensor	1/2.5-inch CCD
ISO Sensitivity	Auto, 50, 100, 200, 400
Weight	118g
Digital Zoom	4x
Storage Media	SD card
Type	Compact
Focal Length	35-105 mm (35mm equivalent)
Battery	EN-EL8 Lithium-ion battery
Aperture	f/3.0 - f/5.4
LCD Monitor	2.5-inch TFT LCD
Dimensions	89.9 x 57.5 x 19.7 mm (3.5 x 2.3 x 0.8 in)
Shutter Speed	4 sec to 1/350 sec
