Nikon Coolpix S1 Repair Manual

VAA35001-R.3666.A
- E22 ･ S1 -

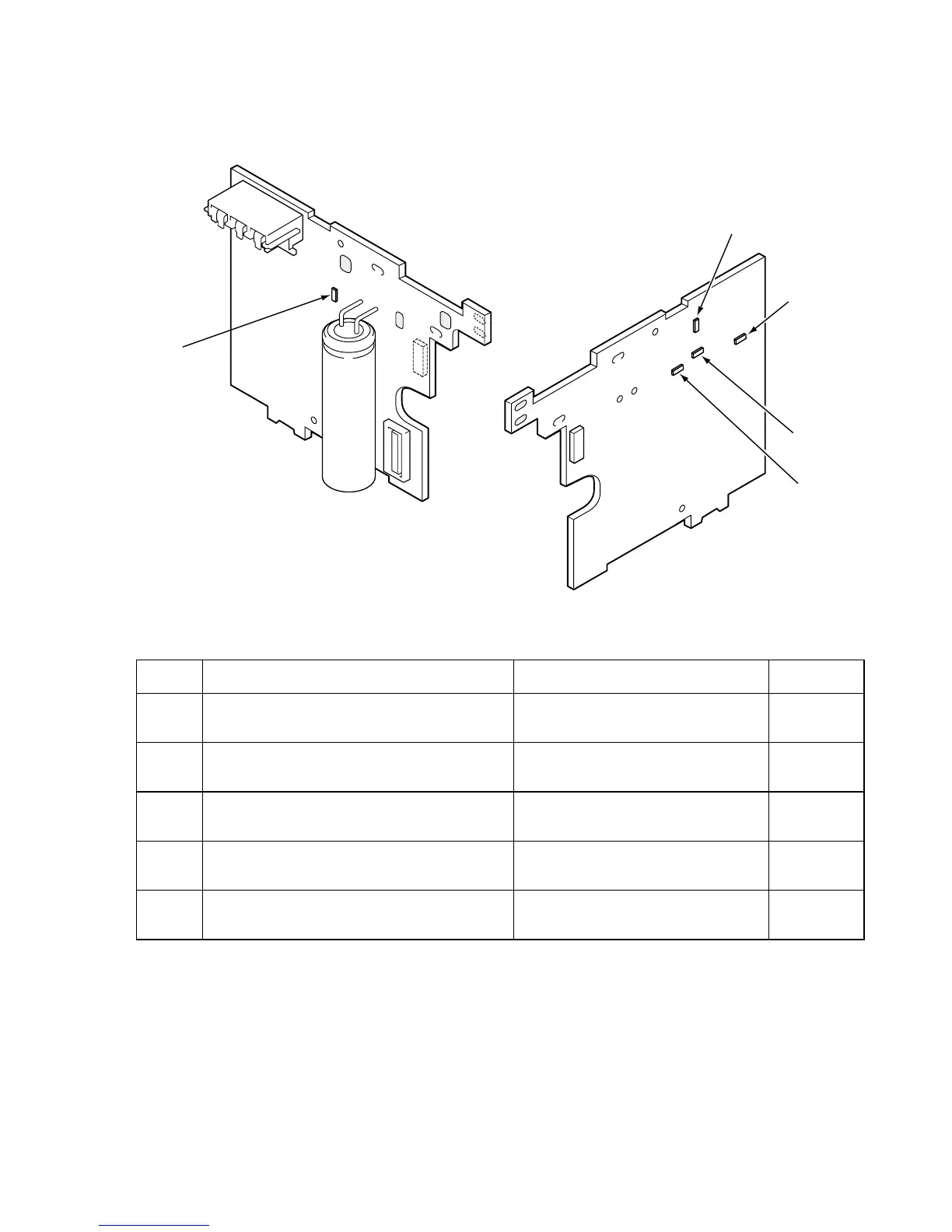

FUSE ARRANGEMENT (CP1 PCB)
FUSE Function of FUSE Phenomenon when FUSE has blown out Rating
F5001
Used to protect the unit when the DC/DC converter
circuit malfunctions.
The power is not turned on. 32V/2.5A
F5002
Used to protect the unit when the DC/DC converter
circuit malfunctions.
The power is not turned on. 32V/2.5A
F5003
Used to protect the unit when the lens driver power
circuit malfunctions.
The power is not turned on. 32V/2A
F5004
Used to protect the unit when the speed light charg-
ing circuit malfunctions.
The speed light is not charged. 32V/2A
F5005
Used to protect the unit when the battery charging
circuit malfunctions.
The battery is not charged. 32V/2A
F5004
F5002
F5005
F5001
F5003
F5004
F5002
F5005
F5001
F5003

Nikon Coolpix S1 Specifications

General

Resolution	5.1 megapixels
Optical Zoom	3x
LCD Screen Size	2.5 inches
Image Sensor	1/2.5-inch CCD
ISO Sensitivity	Auto, 50, 100, 200, 400
Weight	118g
Digital Zoom	4x
Storage Media	SD card
Type	Compact
Focal Length	35-105 mm (35mm equivalent)
Battery	EN-EL8 Lithium-ion battery
Aperture	f/3.0 - f/5.4
LCD Monitor	2.5-inch TFT LCD
Dimensions	89.9 x 57.5 x 19.7 mm (3.5 x 2.3 x 0.8 in)
Shutter Speed	4 sec to 1/350 sec
