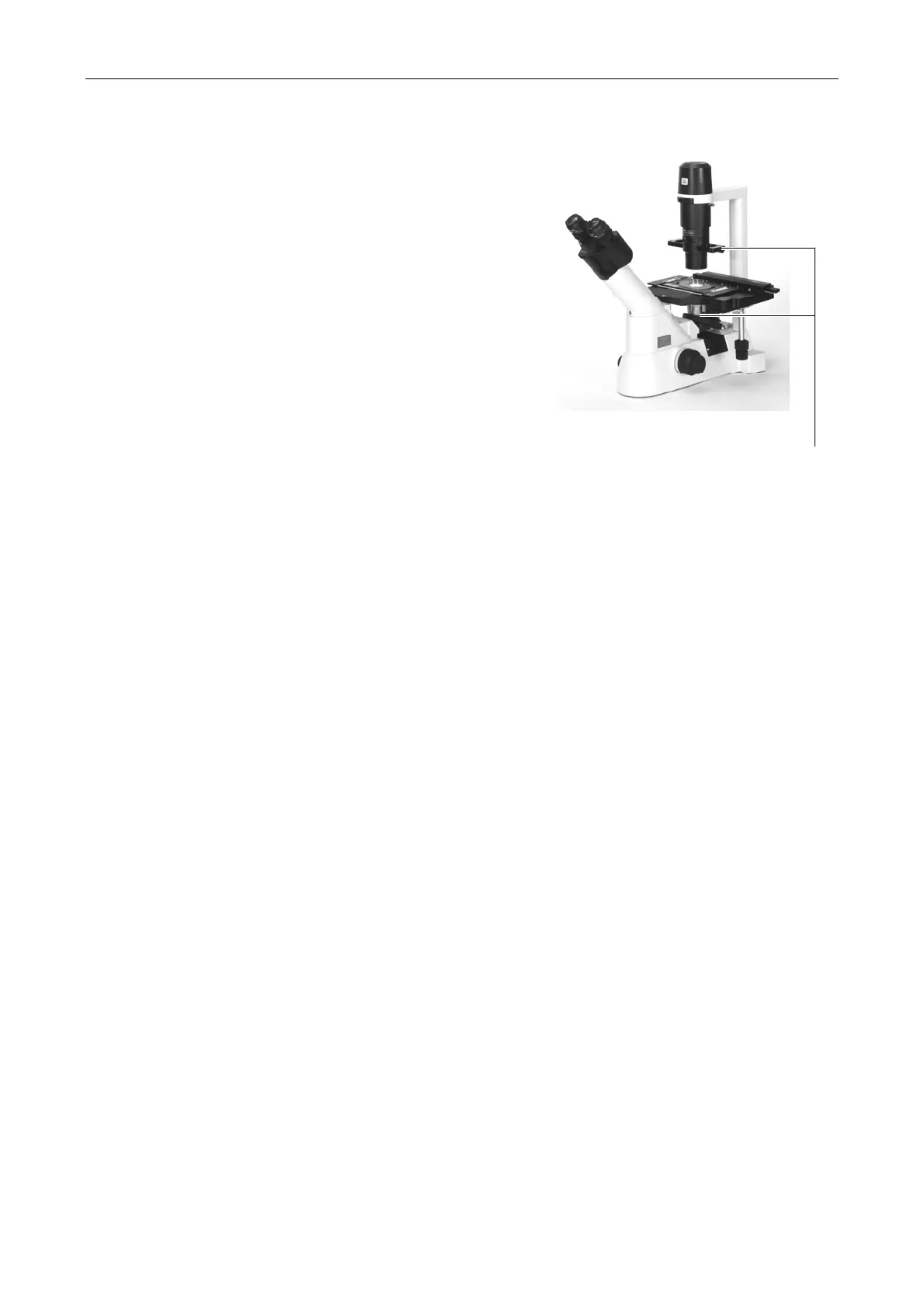

Page #22 background imageLoading...
Page #22 background image
3 Microscopy
1-2 Modulation Contrast (NAMC) Microscopy
E-21
5
Select the desired NAMC objective.
Turn the revolving nosepiece and place the NAMC
objective having the desired magnification in the
optical path. (Turn the revolving nosepiece until
you feel it click in place.)
6
Place the slit diaphragm
corresponding to the objective in
the optical path.
Place the slit diaphragm having the same NAMC
code as the objective in the optical path and
observe.
Depending on the specimen, changing the direction
of the contrast may make easier observation.
Change the direction of the specimen by rotating
the container, or change the direction of the
modulator and slit diaphragm as necessary.
7
Adjust the correction ring of the
objective.
If the objective has a correction ring, adjust the
ring according to the thickness of the container. For
details on adjusting this correction ring, see P.27.
Place the slit diaphragm having
the same NAMC code as the
objective in the optical path.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Nikon Eclipse TS100 and is the answer not in the manual?

Nikon Eclipse TS100 Specifications

General IconGeneral
TypeInverted Microscope
Optical SystemCFI60 infinity optical system
Power SupplyAC100-240V, 50/60Hz
Illumination6V/30W halogen lamp
Eyepiece10X
Objectives4x, 10x, 20x, 40x
Observation MethodsBrightfield
FocusingCoarse and fine focusing
CondenserCondenser N.A. 0.3
Magnification40x to 400x
