LUBRICATING THE MACHINE

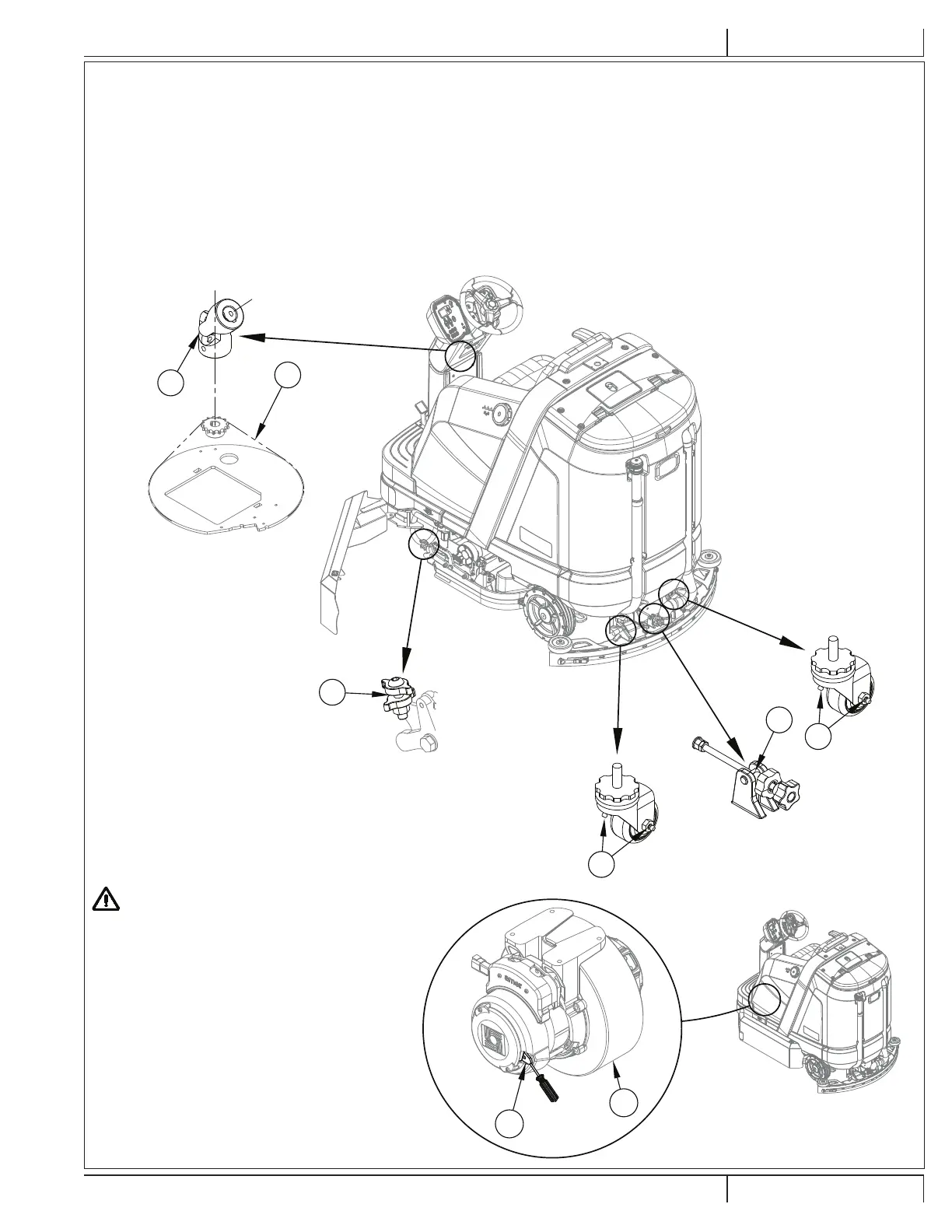

Once a month, pump a small amount of grease into each grease fi tting on the machine until grease seeps out around the bearings. See Figure 10.
Grease fi tting locations (or apply grease to) (AA):
ELECTROMAGNETIC BRAKE
CAUTION!
To avoid uncontrolled machine movement,
block the wheels and ensure machine is
on a level surface before disengaging the
electromagnetic brake.
See Figure 11. The Drive Wheel Assembly (4) has
a built in electromagnetic brake that is engaged
whenever the machine power is OFF or the Drive
Pedal (3) is not being pressed, machine in neutral.
This brake can be manually overridden if necessary
by inserting a medium to large screwdriver behind the
Yoke (AC) as shown. This should only be done in the
event you need to push or pull the unit.
• Squeegee Caster Wheel Axle and Pivot
• Steering Wheel Shaft Universal joint
• Steering Chain
• Squeegee mount angle adjustment knob threads
Once a month, apply light machine oil or synthetic
lubricant spray to lubricate (AB):
• Side Blade Down Stop Adjustment Threads
AC
4
FIGURE 11
AA
AA
AA
AB
AA
AA
FIGURE 10
4/2016 A - 31 56091161 - SC6000
ENGLISH - AINSTRUCTIONS FOR USE
