FORM NO. 56043107 - Advolution
™
2710 / UHR 70-1700 - 23
BURNISHING SYSTEM
TROUBLESHOOTING GUIDE ELECTRICAL

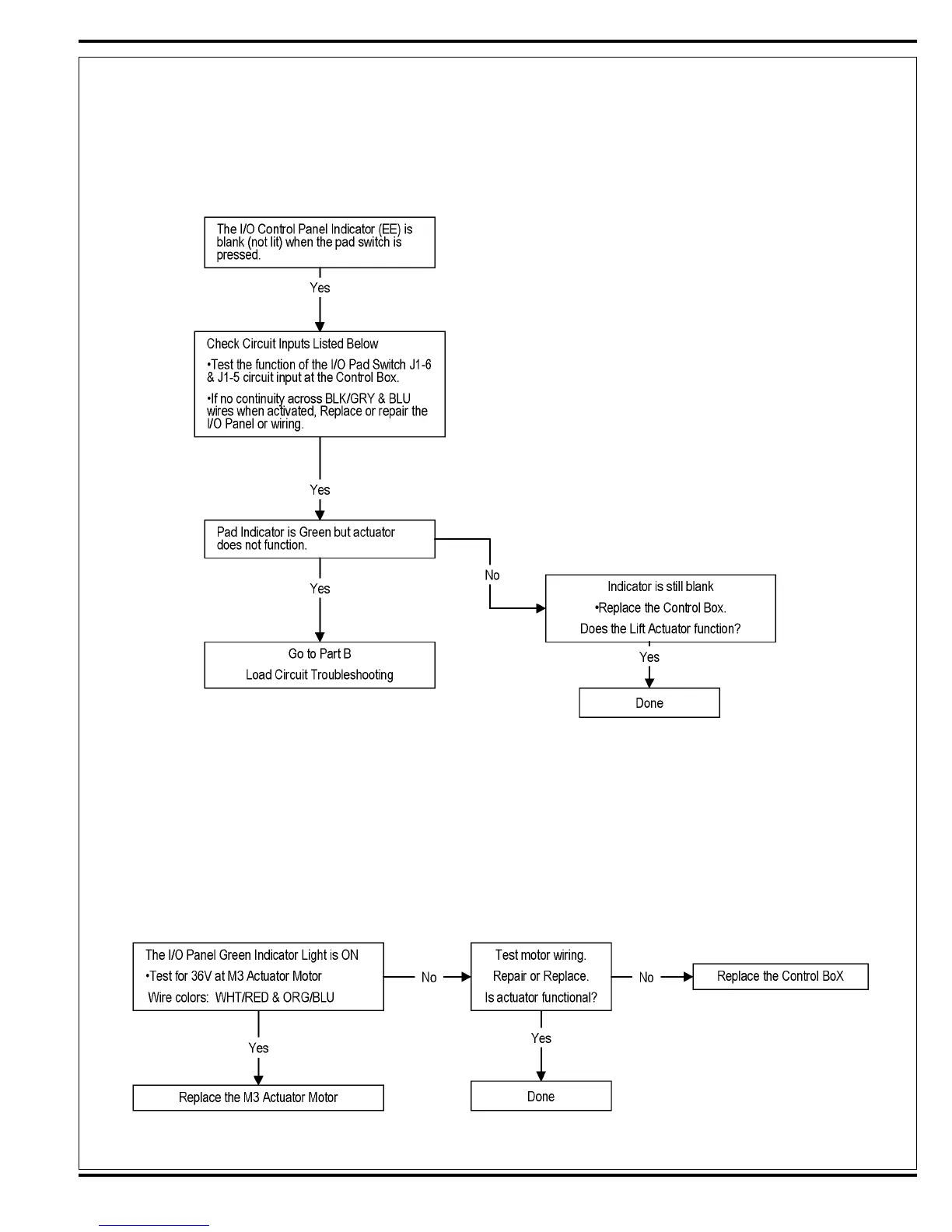

Symptom
Burnishing deck will not raise or lower. Part A, Chart 2 (Control Circuit)
Note :Do all testing with key switch on and seat switch activated. Have Pad R/L switch activated and deck in the burnishing position.
Symptom
Burnishing deck will not raise or lower. Part B (Load Circuit)
Note :Do all testing with key switch on and seat switch activated. Have Pad R/L switch activated and deck in the burnishing position.
To Next Page
